TOYOTA MARK 2 MX83-AEPZF / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

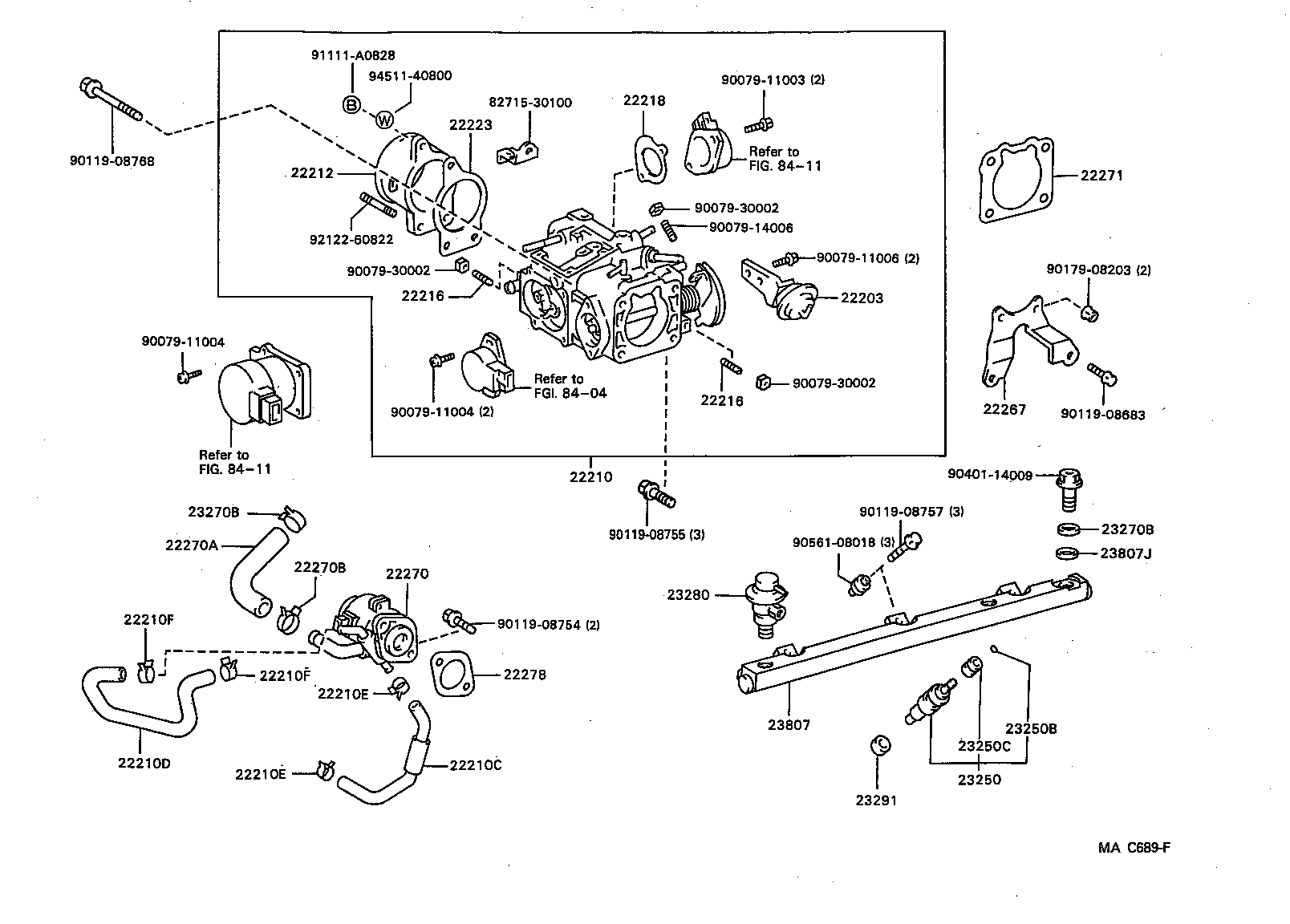

ILLUST NO. 1 OF 3(8908-9302)7MGE

 MARK 2 |  FUEL INJECTION SYSTEM 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) 22210 - BODY ASSY, THROTTLE 22210C - HOSE, WATER BY-PASS, NO.1 22210D - HOSE, WATER BY-PASS, NO.2 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) 22212 - BODY, UPPER(FOR THROTTLE BODY) 22216 - SCREW, DASH POT ADJUSTING 22216 - SCREW, DASH POT ADJUSTING 22218 - COVER(FOR THROTTLE BODY) 22223 - GASKET, BODY UPPER(FOR THROTTLE BODY) 22267 - BRACKET, THROTTLE BODY 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) 22270B - CLIP(FOR AIR HOSE) 22271 - GASKET, THROTTLE BODY 22278 - GASKET, IDLE SPEED CONTROL VALVE 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23280 - REGULATOR ASSY, FUEL PRESSURE 23291 - INSULATOR, INJECTOR VIBRATION 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807J - GASKET, PIPE FUEL DELIVARY INLET  ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
