TOYOTA MARK 2 GX81-AEMQK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

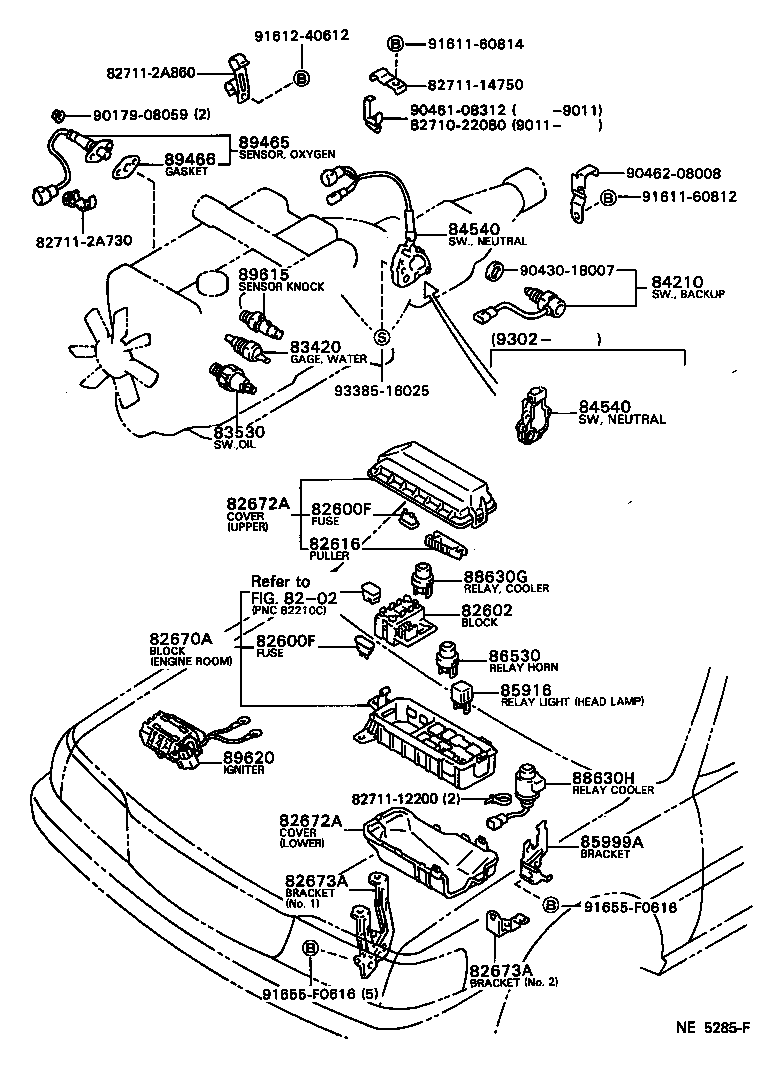

ILLUST NO. 1 OF 6(8808- )GX81..HTWC

 MARK 2 |  SWITCH RELAY COMPUTER ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82602 - BLOCK SUB-ASSY, RELAY 82616 - PULLER, FUSE 82670A - BLOCK ASSY, JUNCTION,  NO.1 82672A - COVER, JUNCTION BLOCK 82672A - COVER, JUNCTION BLOCK 82673A - BRACKET, JUNCTION BLOCK 82673A - BRACKET, JUNCTION BLOCK  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 83420 - GAGE ASSY, WATER TEMPERATURE SENDER 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84210 - SWITCH ASSY, BACK-UP LAMP 84540 - SWITCH ASSY, NEUTRAL START 84540 - SWITCH ASSY, NEUTRAL START 85916 - RELAY, LIGHT CONTROL 85999A - BRACKET, RELAY, NO.2 86530 - RELAY ASSY, HORN 88630G - RELAY ASSY, COOLER 88630H - RELAY ASSY, COOLER 89465 - SENSOR, OXYGEN 89466 - GASKET, OXYGEN SENSOR 89615 - SENSOR, KNOCK CONTROL 89620 - IGNITER ASSY  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
