TOYOTA DYNA TOYOACE BU90-MDDTX / TOOL-ENGINE-FUEL / INJECTION PUMP BODY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INJECTION PUMP BODY

(8808-8910)13BT

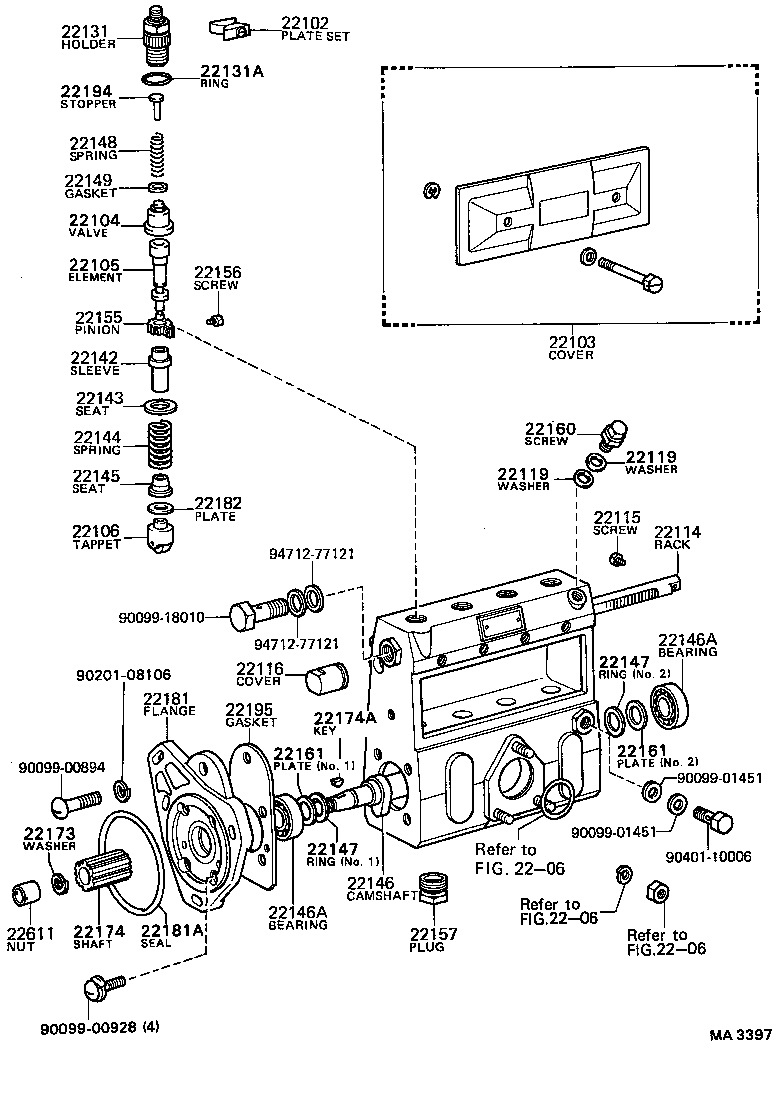

 DYNA TOYOACE |  INJECTION PUMP BODY ** Refer Fig ** Refer Fig ** Refer Fig 22102 - PLATE SET, VALVE HOLDER LOCK 22103 - COVER SUB-ASSY, INJECTION PUMP 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY 22105 - ELEMENT SUB-ASSY, INJECTION PUMP 22106 - TAPPET SUB-ASSY, INJECTION PUMP 22114 - RACK, CONTROL 22115 - SCREW, RACK GUIDE 22116 - COVER, CONTROL RACK 22119 - WASHER, AIR BLEEDER NIPPLE 22119 - WASHER, AIR BLEEDER NIPPLE 22131 - HOLDER, DELIVERY VALVE 22131A - RING, O(FOR DELIVERY VALVE HOLDER) 22142 - SLEEVE, PLUNGER CONTROL 22143 - SEAT, SPRING UPPER 22144 - SPRING, PUMP PLUNGER 22145 - SEAT, SPRING, LOWER 22146 - CAMSHAFT, INJECTION PUMP 22146A - BEARING(FOR INJECTION CAMSHAFT) 22146A - BEARING(FOR INJECTION CAMSHAFT) 22147 - RING, CAMSHAFT ADJUST 22147 - RING, CAMSHAFT ADJUST 22148 - SPRING, DELIVERY VALVE 22149 - GASKET, DELIVERY VALVE 22155 - PINION, PLUNGER CONTROL 22156 - SCREW, PLUNGER CONTROL PINION CLAMP 22157 - PLUG, INJECTION PUMP FELT PLATE 22160 - SCREW SUB-ASSY, OVERFLOW 22161 - PLATE, CAMSHAFT SHIM 22161 - PLATE, CAMSHAFT SHIM 22173 - WASHER, SPRING 22174 - SHAFT, SPLINE 22174A - KEY(FOR SPLINE SHAFT) 22181 - FLANGE, INJECTION PUMP 22181A - SEAL, OIL(FOR INJECTION PUMP FLANGE) 22182 - PLATE, TAPPET ADJUSTING SHIM 22194 - STOPPER, DELIVERY VALVE 22195 - GASKET, BEARING COVER 22611 - NUT, TIMER ROUND  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
