TOYOTA SPRINTER CARIB AL25G-MWFEB / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CARBURETOR

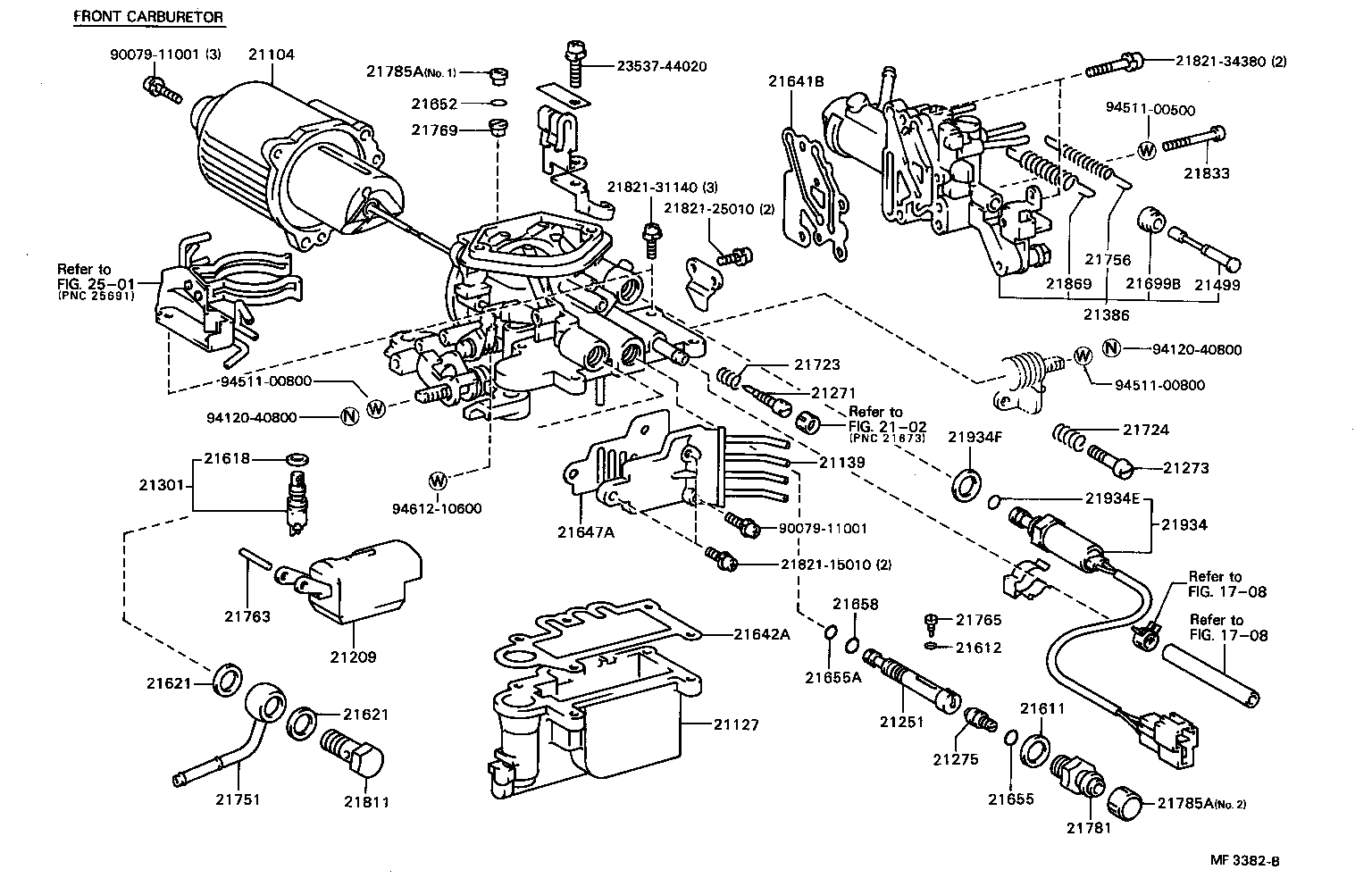

ILLUST NO. 1 OF 2(8408- )3ASU

SPRINTER CARIB | CARBURETOR ** Refer Fig ** Refer Fig ** Refer Fig 21104 - CHAMBER SUB-ASSY, SUCTION 21127 - BOWL, FLOAT 21139 - ADAPTER(FOR CARBURETOR CONNECTING PIPE) 21209 - FLOAT SUB-ASSY 21251 - JET, 1ST MAIN 21271 - SCREW, IDLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21275 - SCREW, ADJUSTING 21301 - VALVE SUB-ASSY, NEEDLE 21386 - COMPENSATOR 21499 - ROD, PUSH(FOR CARBURETOR) 21611 - GASKET, MAIN JET 21612 - GASKET, POWER VALVE 21618 - GASKET, NEEDLE VALVE SEAT 21621 - GASKET, UNION NIPPLE 21621 - GASKET, UNION NIPPLE 21641B - GASKET, COMPENSATOR 21642A - GASKET, FLOAT BOWL 21647A - GASKET, ADAPTER 21652 - RING, O(FOR SUCTION CHANBER ADJUSTING) 21655 - RING, O(FOR LIFTER ROD) 21655A - RING, O(FOR SLOW JET) 21658 - RING, O(FOR MAIN GUIDE UPPER) 21699B - BOOT(FOR COMPENSATOR) 21723 - SPRING, IDLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21751 - UNION, NIPPLE 21756 - SPRING, BACK(FOR THROTTLE SHAFT) 21763 - PIN, FLOAT LEVER 21765 - PIN(FOR PUMP PLUNGER) 21769 - PIN(FOR SUCTION CHANBER ADJUSTING) 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21785A - PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING) 21785A - PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING) 21811 - BOLT, UNION NIPPLE ** Std Part ** Std Part ** Std Part ** Std Part 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) 21869 - SPRING(FOR MAIN JET) 21934 - SOLENOID, THROTTLE VALVE 21934E - RING, O(FOR SOLENOID VALVE) 21934F - GASKET ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
