TOYOTA CELICA MA61-BLMQF / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

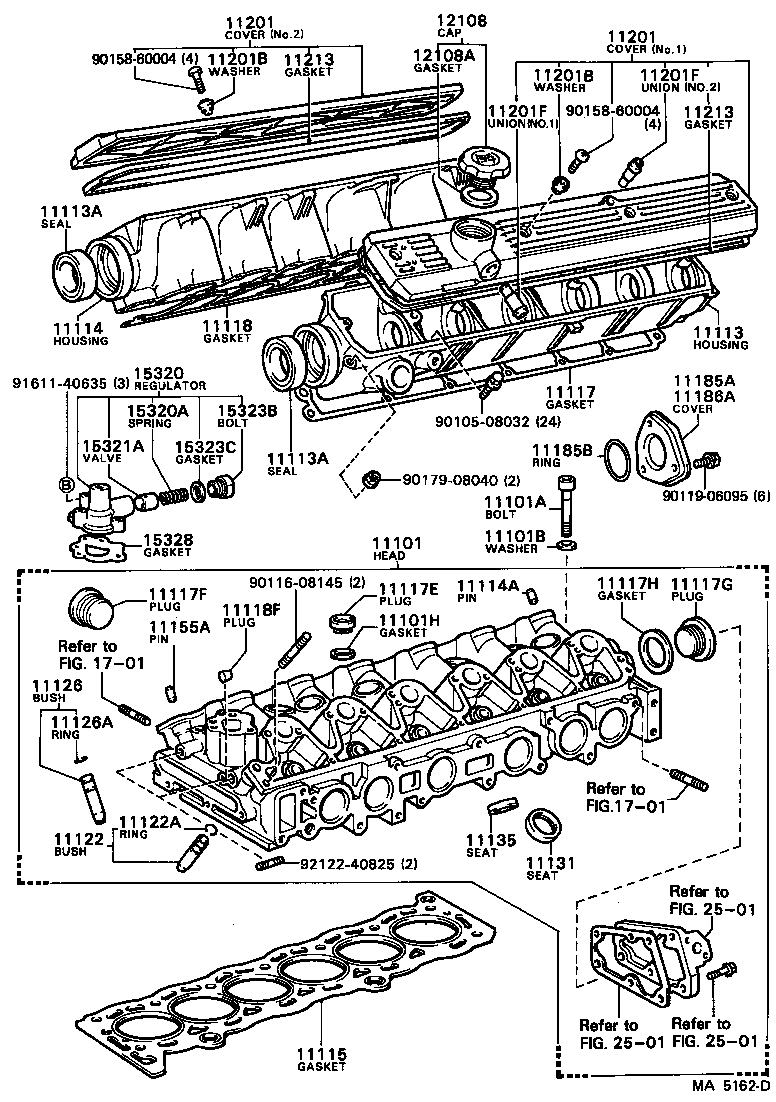

CYLINDER HEAD

(8107-8308)5MGEU

 CELICA |  CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) 11113 - HOUSING, CAMSHAFT, NO.1 11113A - SEAL, OIL(FOR CAMSHAFT HOUSING) 11113A - SEAL, OIL(FOR CAMSHAFT HOUSING) 11114 - HOUSING, CAMSHAFT, NO.2 11114A - PIN, STRAIGHT 11115 - GASKET, CYLINDER HEAD 11117 - GASKET, CAMSHAFT HOUSING, NO.1 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 11117G - PLUG, W/HEAD STRAIGHT SCREW, NO.3 11117H - GASKET(FOR WATER HOLE) 11118 - GASKET, CAMSHAFT HOUSING, NO.2 11118F - PLUG, TAPER, NO.1 11122 - BUSH, INTAKE VALVE GUIDE 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) 11126 - BUSH, EXHAUST VALVE GUIDE 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11155A - PIN, RING W/HEAD 11185A - COVER, CAMSHAFT REAR HOUSING, NO.1 11185B - RING, O 11186A - COVER, CAMSHAFT REAR HOUSING, NO.2 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11201F - UNION(FOR POSITIVE CRANKCASE VENTILATION) 11201F - UNION(FOR POSITIVE CRANKCASE VENTILATION) 11213 - GASKET, CYLINDER HEAD COVER 11213 - GASKET, CYLINDER HEAD COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) 15320 - REGULATOR ASSY, OIL PRESSURE 15320A - SPRING, OIL PRESSURE REGULATOR VALVE 15321A - VALVE, OIL PRESSURE REGULATOR 15323B - BOLT, OIL PRESSURE REGULATOR 15323C - GASKET, OIL PRESSURE REGULATOR BOLT 15328 - GASKET, OIL PRESSURE REGULATOR ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
