TOYOTA BLIZZARD LD10V-MDE / POWERTRAIN-CHASSIS / TRANSFER CASE EXTENSION HOUSING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

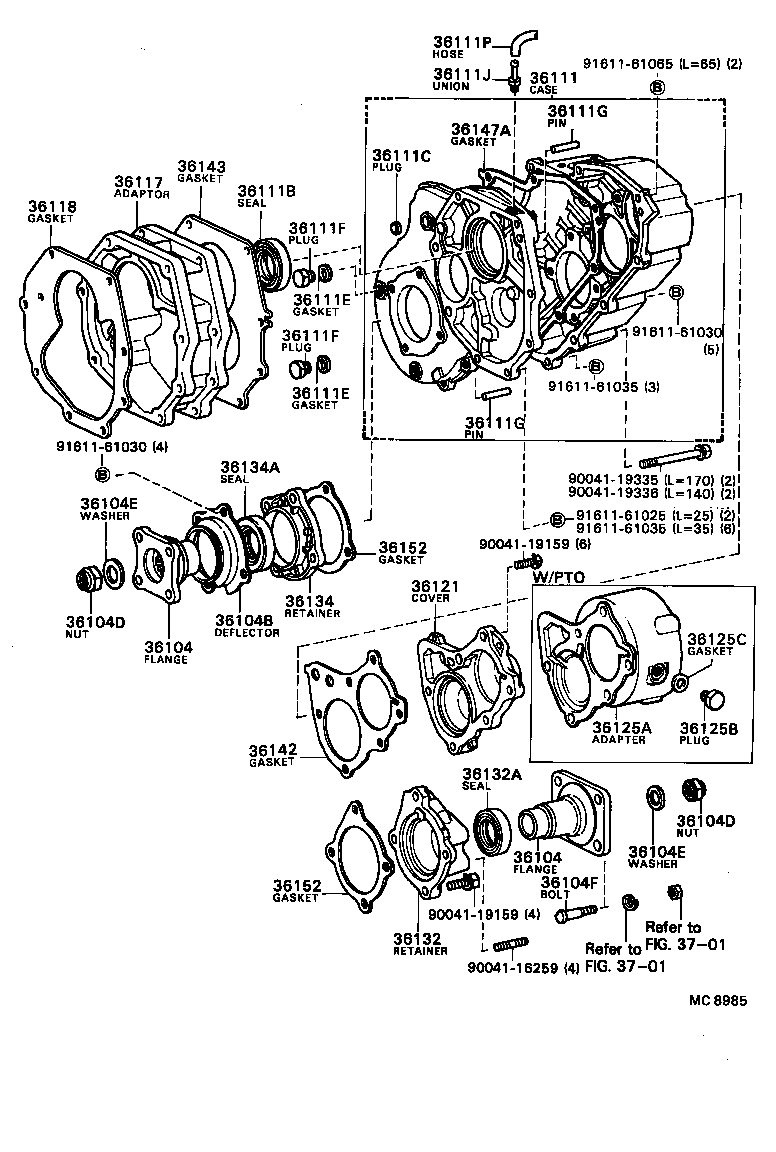

TRANSFER CASE EXTENSION HOUSING

(8210- )VPT

BLIZZARD | TRANSFER CASE EXTENSION HOUSING 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) 36111 - CASE, TRANSFER 36111B - SEAL, OIL (FOR TRANSFER CASE) 36111C - PLUG (FOR TRANSFER CASE) 36111E - GASKET (FOR TRANSFER CASE) 36111E - GASKET (FOR TRANSFER CASE) 36111F - PLUG (FOR TRANSFER CASE) 36111F - PLUG (FOR TRANSFER CASE) 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) 36111J - UNION, BREATHER, NO.1 (FOR TRANSFER) 36111P - HOSE, BREATHER (FOR TRANSFER CASE) 36117 - ADAPTER, TRANSFER 36118 - GASKET, TRANSFER ADAPTER 36121 - COVER, TRANSFER CASE, NO.1 36125A - ADAPTER, POWER TAKE-OFF 36125B - PLUG(FOR POWER TAKE-OFF ADAPTER) 36125C - GASKET(FOR POWER TAKE-OFF ADAPTER) 36132 - RETAINER, OUTPUT SHAFT BEARING, REAR NO.1 36132A - SEAL, OIL (FOR OUTPUT SHAFT RETAINER) 36134 - RETAINER, OUTPUT SHAFT BEARING, FRONT 36134A - SEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER) 36142 - GASKET, TRANSFER COVER 36143 - GASKET, TRANSFER CASE, FRONT 36147A - GASKET, TRANSFER CASE 36152 - GASKET, OUTPUT SHAFT BEARING RETAINER 36152 - GASKET, OUTPUT SHAFT BEARING RETAINER ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
