TOYOTA PUBLICA KP30-S / ELECTRICAL / METER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

METER

(6904-7010)SL

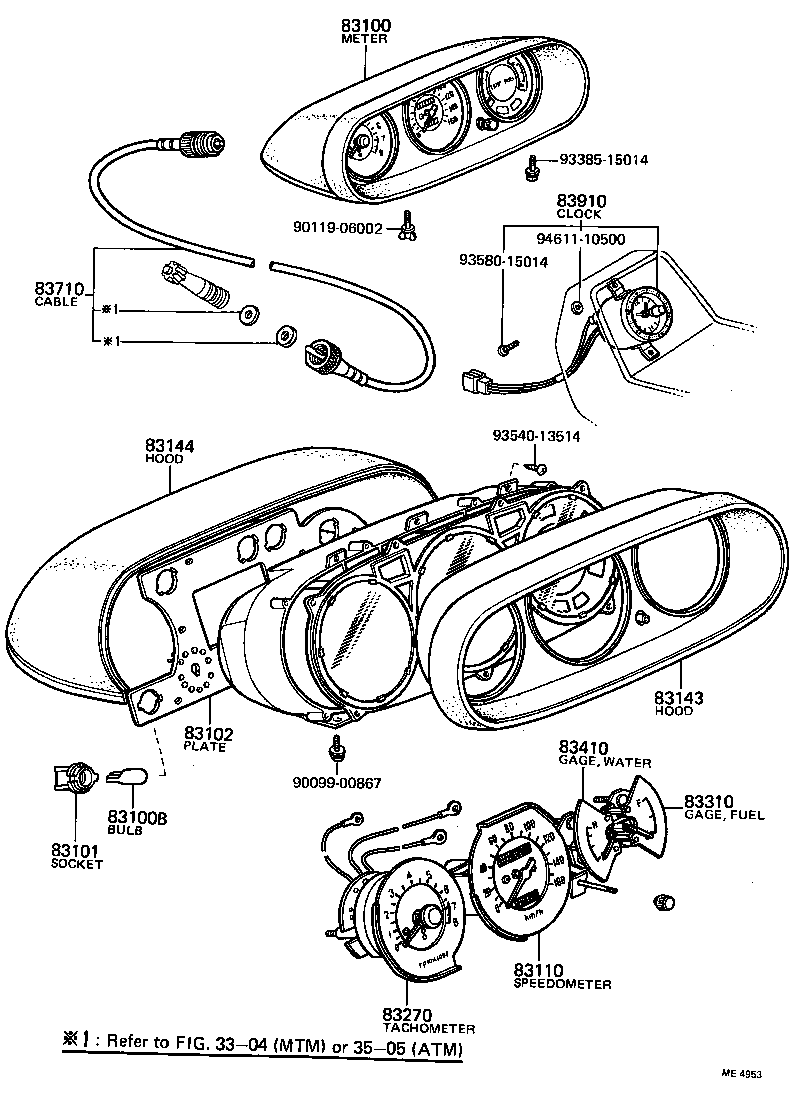

PUBLICA | METER ** Refer Fig ** Refer Fig 83100 - METER ASSY, COMBINATION 83100B - BULB, COMBINATION METER, NO.1 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 83110 - SPEEDOMETER ASSY 83143 - HOOD, COMBINATION METER, FRONT 83144 - HOOD, COMBINATION METER, REAR 83270 - TACHOMETER ASSY, ENGINE 83310 - GAGE ASSY, FUEL RECEIVER 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 83910 - CLOCK ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
