TOYOTA VIOS CHINA NSP151L-BEPRKC / POWERTRAIN-CHASSIS / TRANSMISSION CASE OIL PAN ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

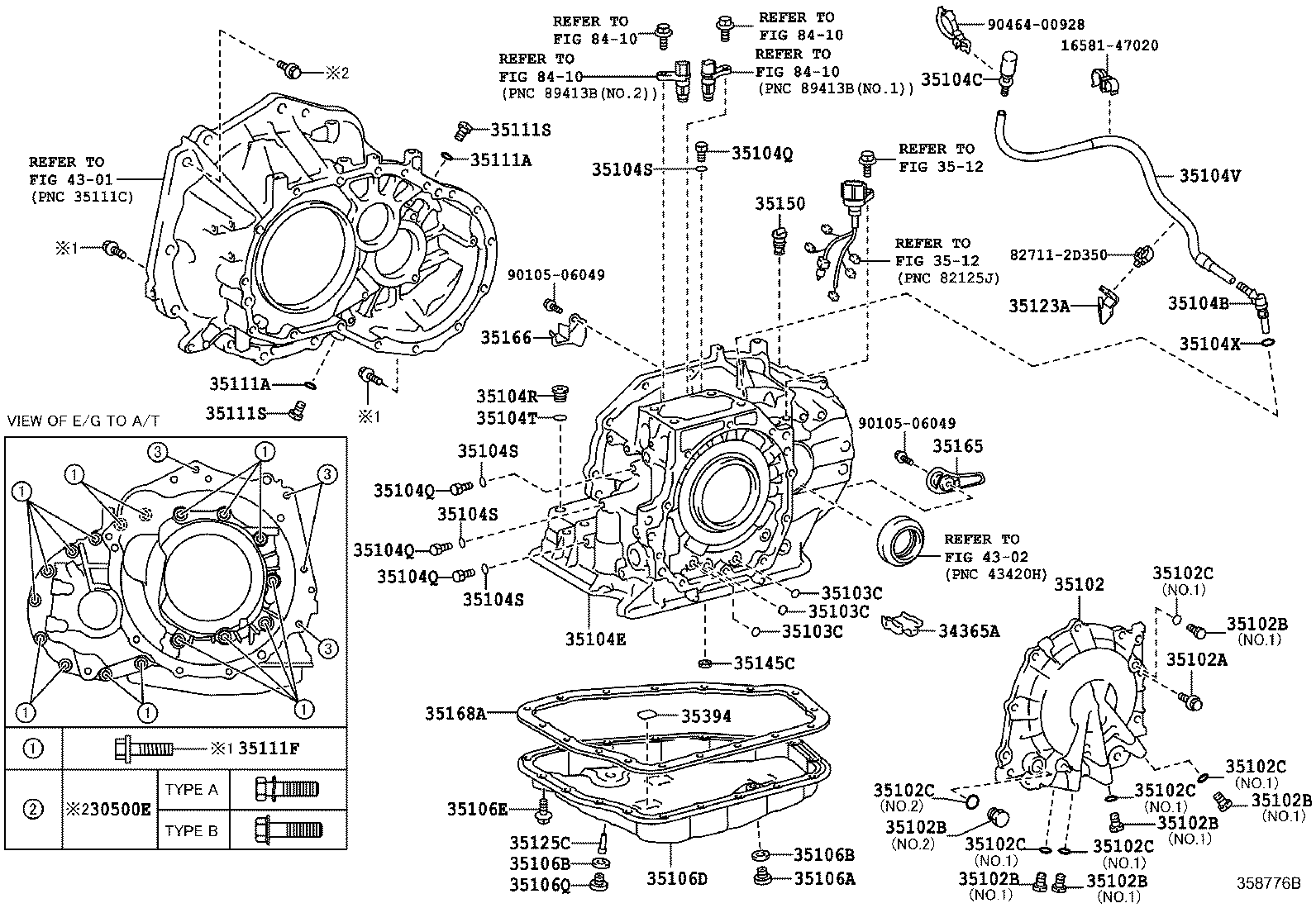

TRANSMISSION CASE OIL PAN ATM

U442E (1311- )4FC

VIOS CHINA | TRANSMISSION CASE OIL PAN ATM ** Std Part 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) 34365A - RETAINER, OUTER RACE 35102 - COVER SUB-ASSY, TRANSAXLE REAR 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) 35102B - PLUG(FOR TRANSAXLE REAR COVER) 35102B - PLUG(FOR TRANSAXLE REAR COVER) 35102B - PLUG(FOR TRANSAXLE REAR COVER) 35102B - PLUG(FOR TRANSAXLE REAR COVER) 35102B - PLUG(FOR TRANSAXLE REAR COVER) 35102B - PLUG(FOR TRANSAXLE REAR COVER) 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) 35103C - RING, O 35103C - RING, O 35103C - RING, O 35104B - PLUG, BREATHER, NO.1 (ATM) 35104C - PLUG, BREATHER, NO.2 (ATM) 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) 35104V - HOSE (FOR BREATHER PLUG) 35104X - RING, O (FOR BREATHER PLUG) 35106A - PLUG SUB-ASSY, DRAIN (ATM) 35106B - GASKET, DRAIN PLUG (ATM) 35106B - GASKET, DRAIN PLUG (ATM) 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL 35106E - BOLT (FOR TRANSAXLE OIL PAN) 35106Q - PLUG (FOR AUTOMATIC TRANSMISSION OIL PAN) 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) 35111S - PLUG (FOR TRANSMISSION HOUSING) 35111S - PLUG (FOR TRANSMISSION HOUSING) ** Refer Fig ** Refer Fig 35123A - SKIRT, TRANSMISSION BREATHER 35125C - TUBE, TRANSMISSION OIL FILLER, NO.1 35145C - GASKET, TRANSAXLE CASE 35150 - PLUG ASSY, TRANSMISSION CASE 35165 - PLATE, TRANSMISSION CASE, NO.1 35166 - PLATE, TRANSMISSION CASE, NO.3 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) ** Refer Fig ** Refer Fig ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part
