TOYOTA LAND CRUISER 70 VDJ78R-RJMRYQ / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MANIFOLD

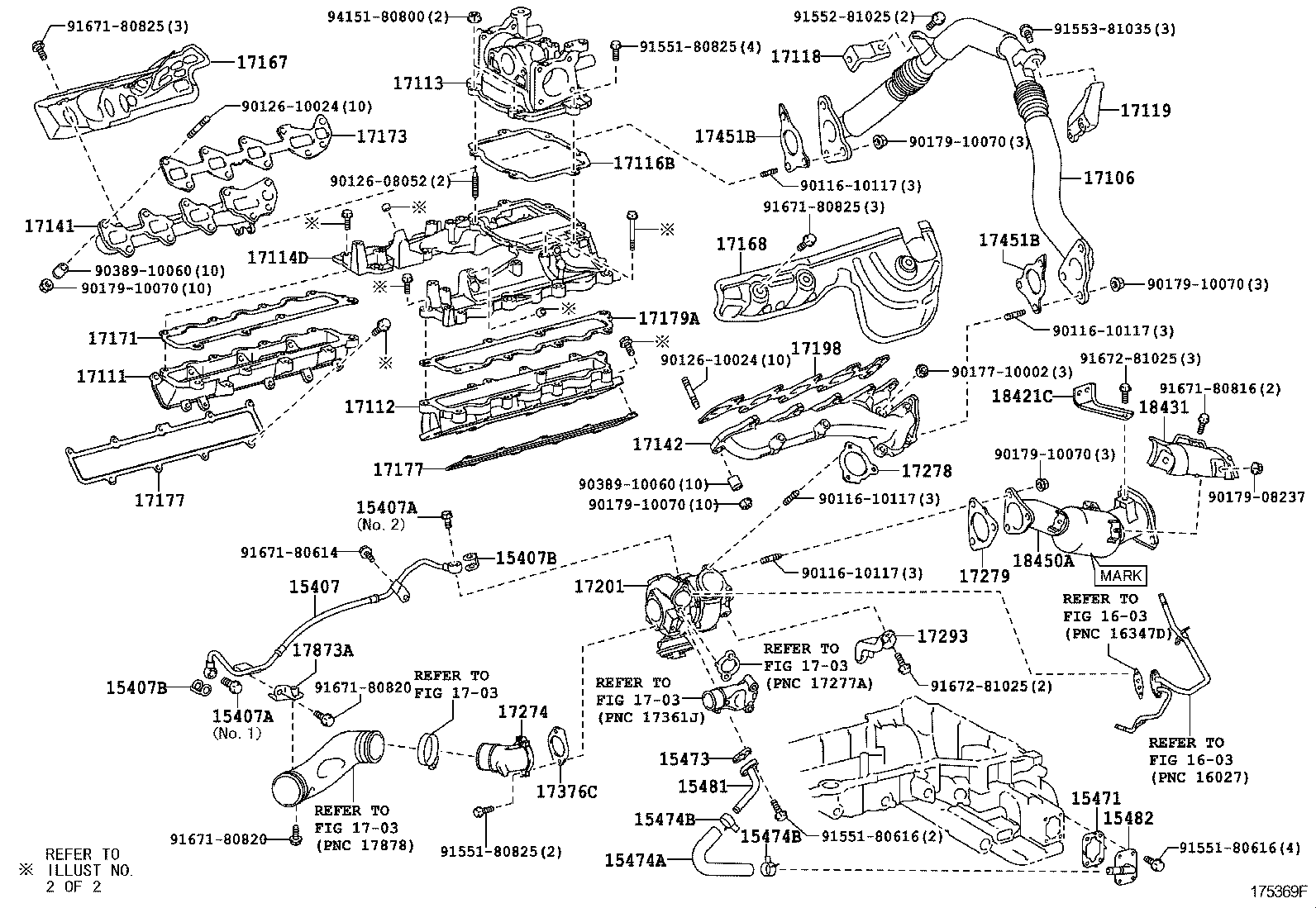

ILLUST NO. 1 OF 2(0701- )1VDFTV

 LAND CRUISER 70 |  MANIFOLD 15407 - PIPE SUB-ASSY, TURBO OIL INLET 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15471 - GASKET, TURBO OIL INLET 15473 - GASKET, TURBO OIL OUTLET, NO.2 15474A - HOSE, TURBO OIL OUTLET 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15481 - PIPE, TURBO OIL, NO.1 15482 - PIPE, TURBO OIL, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 17106 - PIPE SUB-ASSY, EXHAUST CROSSOVER 17111 - MANIFOLD, INTAKE 17112 - MANIFOLD, INTAKE, NO.2 17113 - PIPE, INTAKE 17114D - MANIFOLD, INTAKE, NO.3 17116B - GASKET, INTAKE FLANGE 17118 - STAY, MANIFOLD 17119 - STAY, MANIFOLD, NO.2 17141 - MANIFOLD, EXHAUST 17142 - CASE, EXHAUST MANIFOLD, NO.2 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17179A - GASKET, INTAKE MANIFOLD, NO.2 17198 - GASKET, EXHAUST MANIFOLD, NO.2 17201 - TURBOCHARGER SUB-ASSY 17274 - ELBOW, COMPRESSOR INLET 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17279 - GASKET, TURBINE OUTLET ELBOW 17293 - STAY, TURBOCHARGER 17376C - GASKET, AIR TUBE 17451B - GASKET, EXHAUST PIPE 17451B - GASKET, EXHAUST PIPE 17873A - BRACKET, INTAKE AIR CONNECTOR, NO.2 18421C - STAY, CONVERTER PROTECTOR, CENTER 18431 - INSULATOR, CATALYTIC CONVERTER, UPPER 18450A - CONVERTER ASSY, MONOLITHIC  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
