TOYOTA LAND CRUISER 70 VDJ78R-RJMRYQ / TOOL-ENGINE-FUEL / ENGINE OIL COOLER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ENGINE OIL COOLER

(0701- )1VDFTV

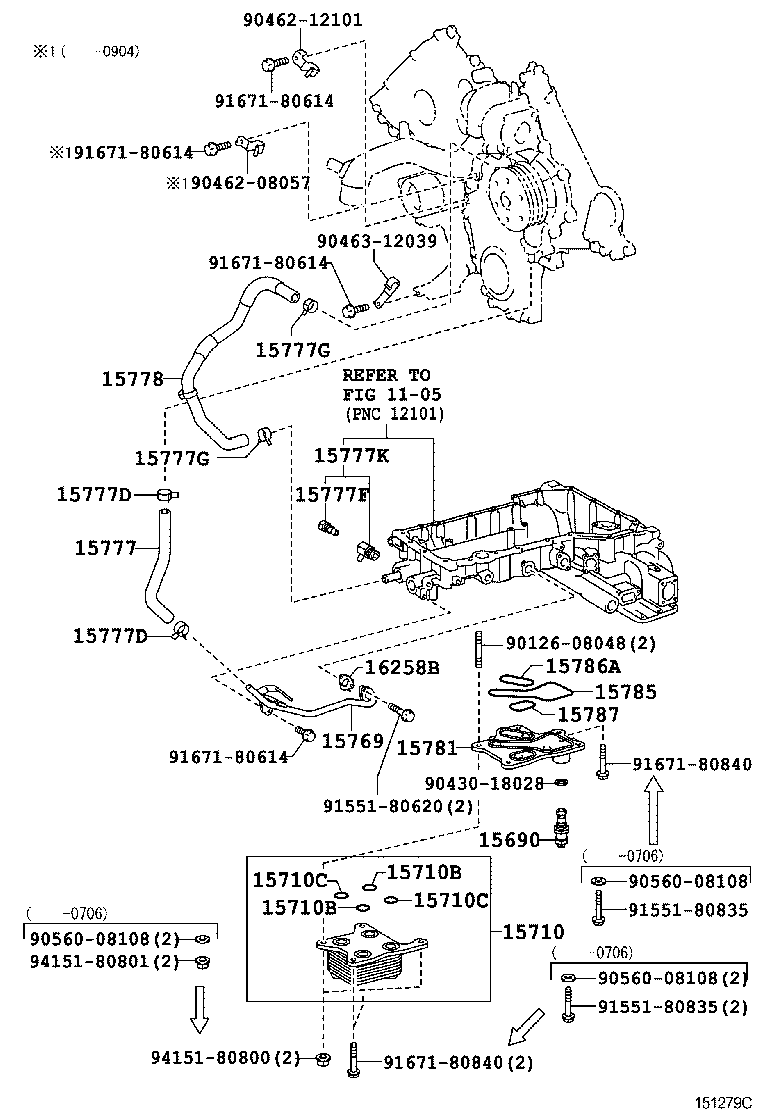

 LAND CRUISER 70 |  ENGINE OIL COOLER ** Refer Fig 15690 - VALVE ASSY, OIL COOLER RELIEF 15710 - COOLER ASSY, OIL 15710B - RING, O(FOR OIL COOLER) 15710B - RING, O(FOR OIL COOLER) 15710C - GASKET(FOR OIL COOLER) 15710C - GASKET(FOR OIL COOLER) 15769 - PIPE, OIL COOLER 15777 - HOSE, OIL COOLER 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) 15777F - PLUG 15777G - CLAMP OR CRIP, HOSE 15777G - CLAMP OR CRIP, HOSE 15777K - COCK ASSY, DRAIN(FOR OIL COOLER HOSE) 15778 - HOSE, OIL COOLER, NO.2 15781 - BRACKET, OIL COOLER, NO.1 15785 - GASKET, OIL COOLER 15786A - GASKET, OIL COOLER 15787 - GASKET, OIL COOLER 16258B - GASKET, OIL COOLER PIPE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
