TOYOTA HILUX KUN36R-PRASYT / POWERTRAIN-CHASSIS / BRAKE PEDAL BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

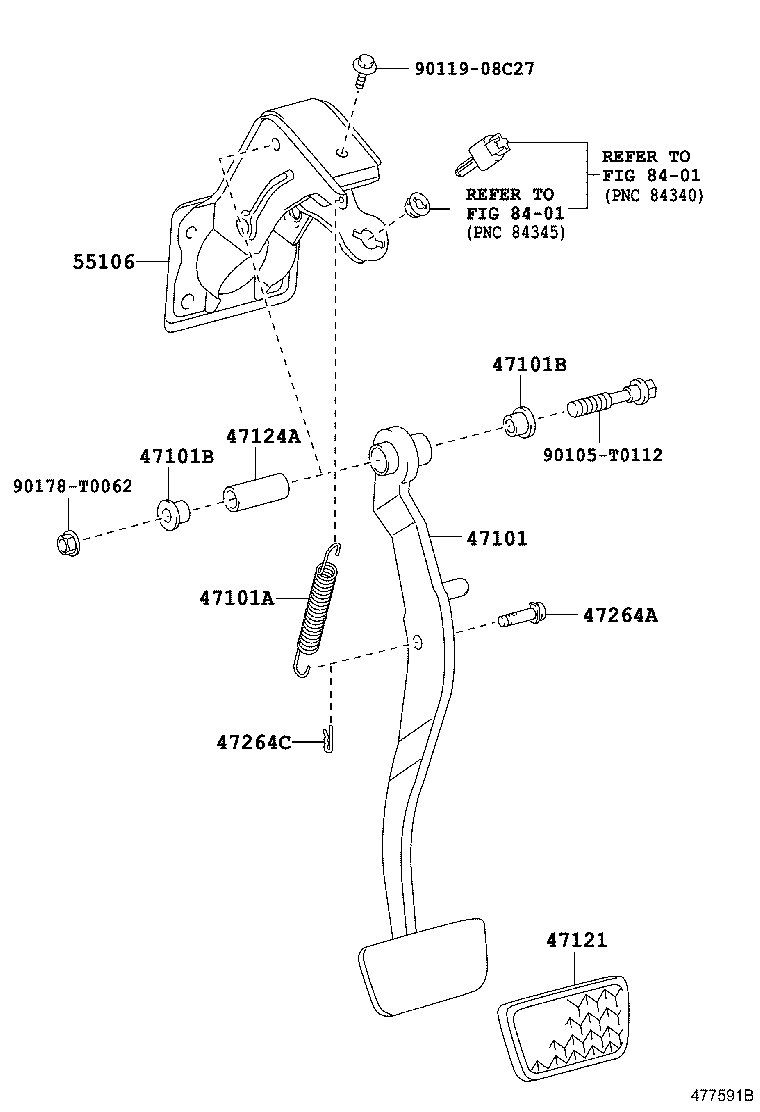

BRAKE PEDAL BRACKET

W/O(VSC) (1107- )5FC..IART ; (1107- )KUN26..4FC,5F

 HILUX |  BRAKE PEDAL BRACKET 47101 - PEDAL SUB-ASSY, BRAKE 47101A - SPRING(FOR BRAKE PEDAL RETURN) 47101B - BUSH(FOR BRAKE PEDAL) 47101B - BUSH(FOR BRAKE PEDAL) 47121 - PAD, BRAKE PEDAL 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) 47264A - PIN(FOR PUSH ROD) 47264C - CLIP(FOR PUSH ROD CLEVIS PIN) 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part
