TOYOTA HIGHLANDER KLUGER GSU40R-BRANKQ / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

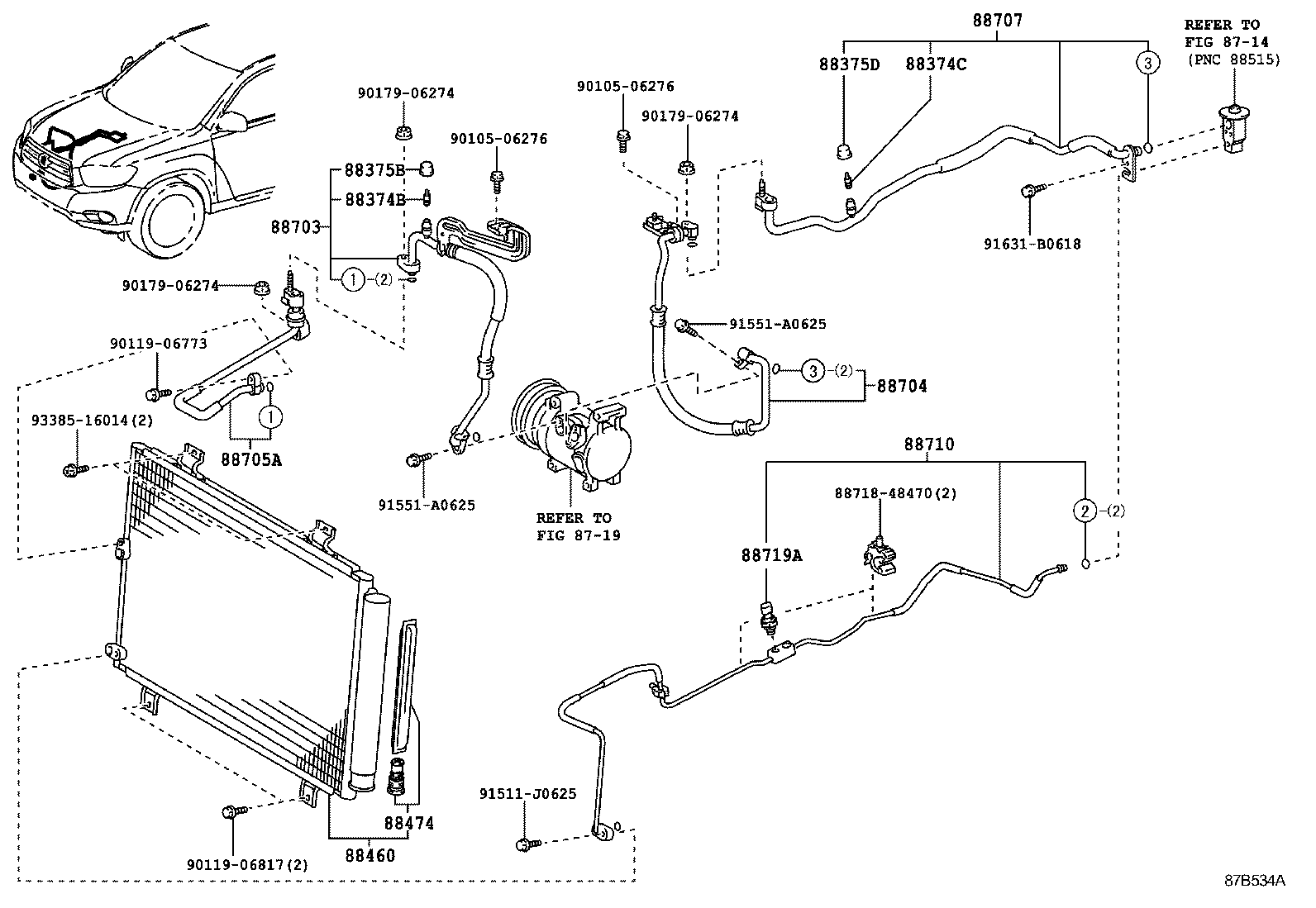

FRONT ILLUST NO. 1 OF 3(1007- )ARL

 HIGHLANDER KLUGER |  HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88460 - CONDENSER ASSY, COOLER 88474 - DRYER, COOLER 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88705A - TUBE SUB-ASSY, DISCHARGE 88707 - PIPE SUB-ASSY, SUCTION 88710 - TUBE ASSY, AIRCONDITIONER  ** Std Part 88719A - SENSOR, AIRCONDITIONER PRESSURE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
