TOYOTA HIACE KDH213R-KDPNYT / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

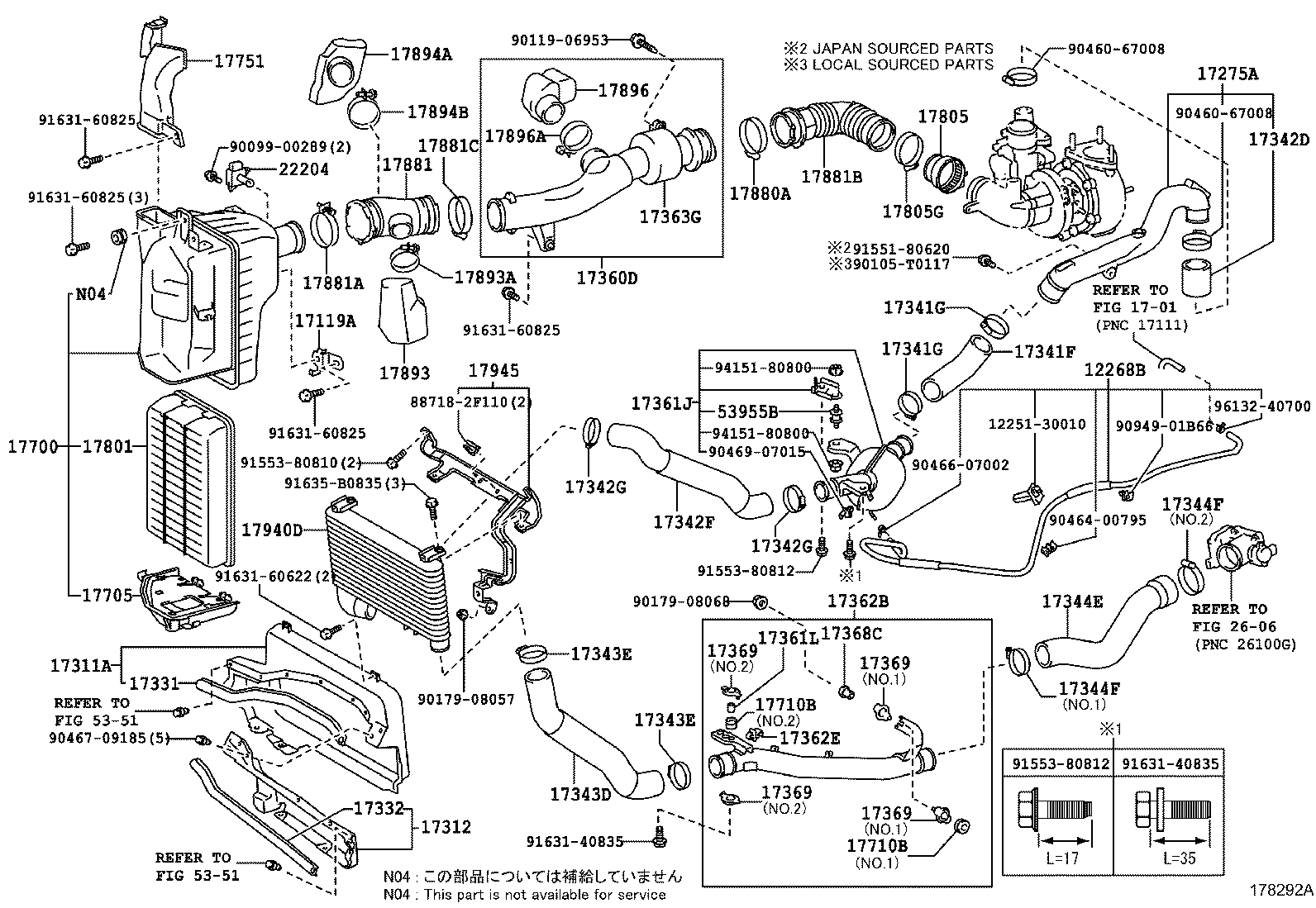

AIR CLEANER

(1312- )1KDFTV..KDH201,203,213,221..RHD..SG..

HIACE | AIR CLEANER ** Std Part 12268B - HOSE, OIL RETURN ** Refer Fig 17119A - BRACKET, AIR CLEANER 17275A - ELBOW, COMPRESSOR OUTLET 17311A - DUCT, AIR INLET, NO.1 17312 - DUCT, AIR INLET, NO.2 17331 - SEAL, DUCT AIR INLET NO.1 17332 - SEAL, DUCT AIR INLET NO.2 17341F - HOSE, AIR, NO.1 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17342D - HOSE, AIR, NO.2 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) 17343D - HOSE, AIR, NO.3 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17344E - HOSE, AIR, NO.4 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) 17360D - PIPE ASSY, AIR 17361J - TUBE, AIR, NO.1 17361L - PIN, RING(FOR AIR TUBE) 17362B - TUBE, AIR, NO.2 17362E - CLAMP, NO.2(FOR AIR TUBE, NO.2) 17363G - TUBE, AIR, NO.3 17368C - BUSH(FOR AIR TUBE SUPPORT) 17369 - BRACKET, AIR TUBE SUPPORT 17369 - BRACKET, AIR TUBE SUPPORT 17369 - BRACKET, AIR TUBE SUPPORT 17369 - BRACKET, AIR TUBE SUPPORT 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17710B - GROMMET 17710B - GROMMET 17751 - INLET, AIR CLEANER, NO.1 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17805 - CONNECTOR SUB-ASSY, INTAKE AIR 17805G - CLAMP, HOSE(FOR AIR CONNECTOR) 17880A - CLAMP, HOSE 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881B - HOSE, AIR CLEANER, NO.1 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17893 - RESONATOR, INTAKE AIR 17893A - CLAMP, HOSE 17894A - RESONATOR, INTAKE AIR, NO.2 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) 17896 - RESONATOR, INTAKE AIR, NO.3 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) 17940D - INTERCOOLER ASSY 17945 - BRACKET, INTERCOOLER SUPPORT 22204 - METER SUB-ASSY, INTAKE AIR FLOW ** Refer Fig ** Refer Fig ** Refer Fig 53955B - CUSHION, AIR CLEANER INLET, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
