TOYOTA PRIUS CHINA ZVW30L-AHXEBC / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SIDE MEMBER

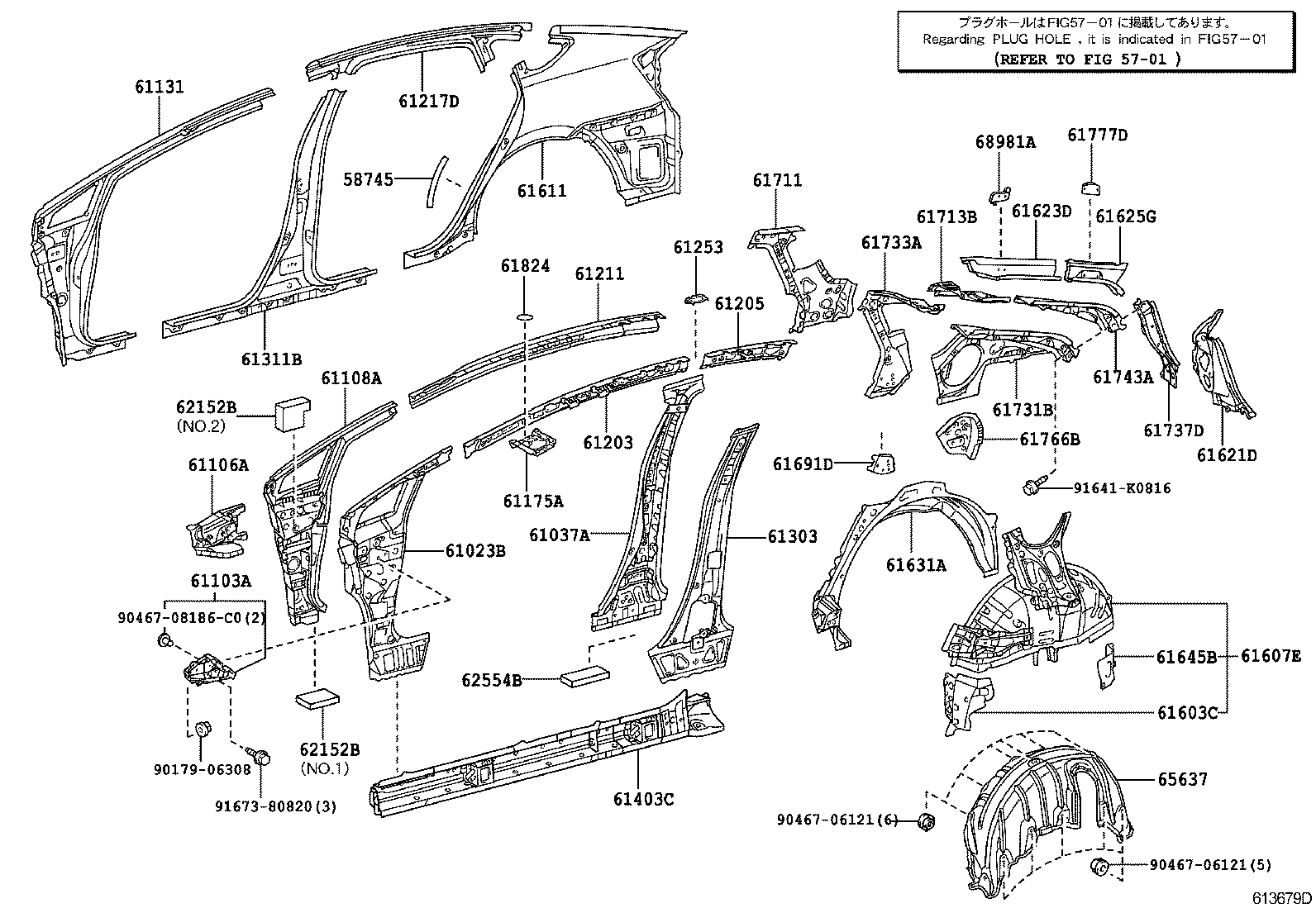

RH ILLUST NO. 1 OF 2(1112- )

 PRIUS CHINA |  SIDE MEMBER ** Refer Fig 58745 - PROTECTOR, QUARTER PANEL, FRONT RH 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH 61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH 61131 - PILLAR, FRONT BODY, UPPER OUTER RH 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH 61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH 61211 - RAIL, ROOF SIDE, OUTER RH 61217D - RAIL, ROOF SIDE, OUTER NO.4 RH 61253 - PILLAR, NO.2 INNER, RH 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH 61311B - PILLAR, CENTER BODY, OUTER RH 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH 61611 - PANEL, QUARTER, RH 61621D - TROUGH, BACK DOOR OPENING, RH 61623D - EXTENSION, QUARTER PANEL, FRONT RH 61625G - EXTENSION, QUARTER PANEL, REAR RH 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH 61691D - REINFORCE, REAR SEAT BACK LOCK STRIKER, RH 61711 - PANEL, ROOF SIDE, OUTER RH 61713B - REINFORCE, ROOF SIDE, OUTER RH 61731B - PANEL, ROOF SIDE, INNER RH 61733A - PANEL, ROOF SIDE, INNER FRONT RH 61737D - REINFORCEMENT, ROOF SIDE, INNER RH 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH 61777D - RETAINER, BACK DOOR SIDE STOPPER, RH 61824 - PLATE, NOISE CONTROL, NO.1 62152B - PAD, COWL SIDE SILENCER, NO.2 62152B - PAD, COWL SIDE SILENCER, NO.2 62554B - PAD, PILLAR, NO.4 65637 - LINER, REAR WHEEL HOUSE, RH 68981A - RETAINER, BACK DOOR STAY, RH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
