TOYOTA PRIUS CHINA ZVW30L-AHXEBC / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

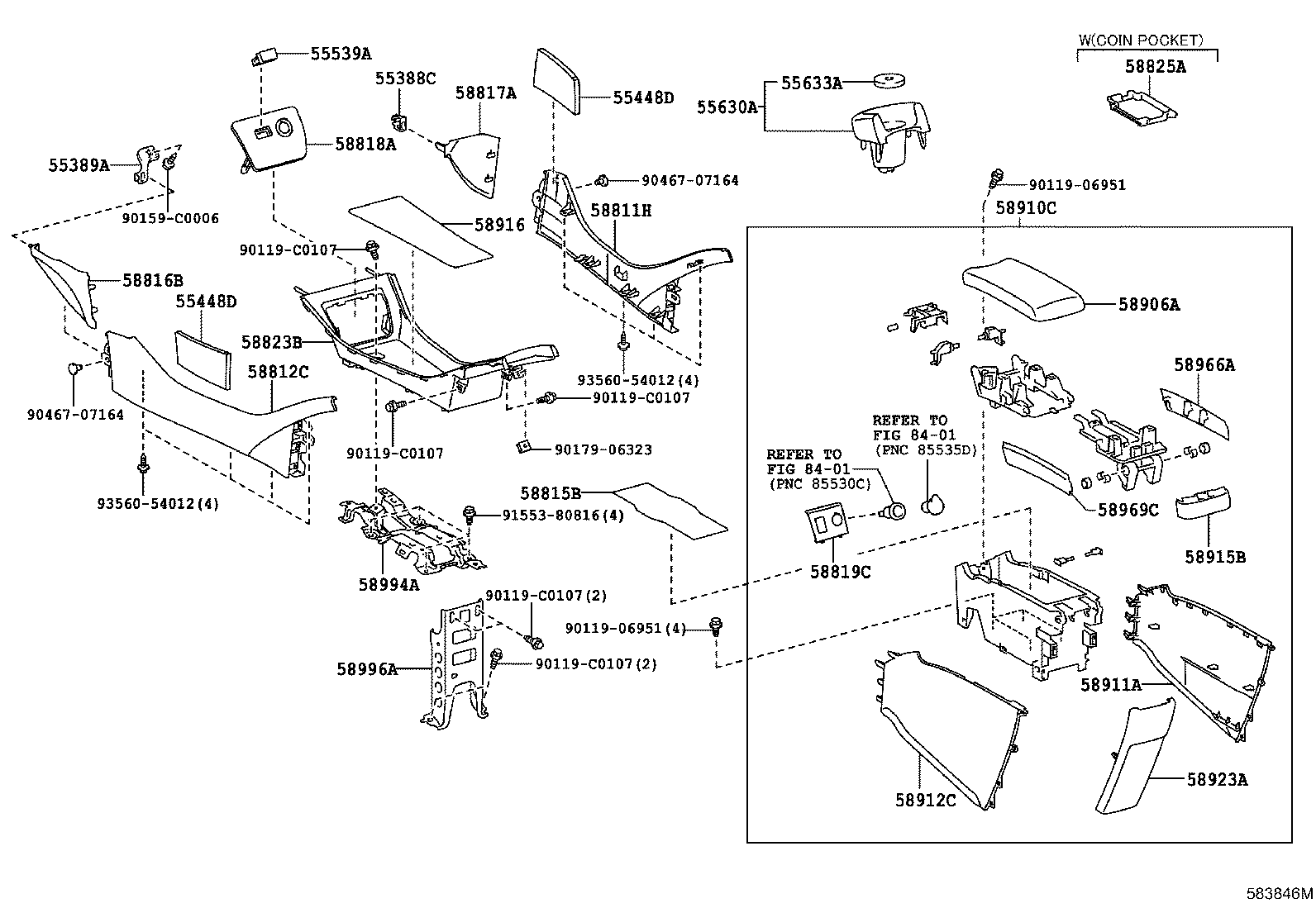

CONSOLE BOX BRACKET

(1112- )

 PRIUS CHINA |  CONSOLE BOX BRACKET 55388C - BRACKET, CONSOLE MOUNTING, RH 55389A - BRACKET, CONSOLE MOUNTING, LH 55448D - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1 55448D - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1 55539A - COVER, SPARE SWITCH HOLE 55630A - HOLDER, REAR CONSOLE BOX, CUP 55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1 58811H - BOX, CONSOLE, RH 58812C - BOX, CONSOLE, LH 58815B - CARPET, CONSOLE BOX 58816B - INSERT, CONSOLE BOX 58817A - INSERT, CONSOLE BOX, FRONT NO.2 58818A - COVER, CONSOLE BOX, FR 58819C - FILLER, CONSOLE BOX, FRONT 58823B - BOX, CONSOLE COMPARTMENT 58825A - POCKET, CONSOLE BOX 58906A - PAD SUB-ASSY, CONSOLE COMPARTMENT DOOR 58910C - BOX ASSY, CONSOLE, REAR 58911A - PANEL, BOX SIDE, NO.1 58912C - PANEL, BOX SIDE, NO.2 58915B - COVER, CONSOLE COMPARTMENT DOOR BOX, REAR 58916 - MAT, BOX BOTTOM 58923A - PANEL, CONSOLE REAR END 58966A - INSERT, CONSOLE COMPARTMENT DOOR, NO.1 58969C - INSERT, CONSOLE COMPARTMENT DOOR, NO.2 58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
