TOYOTA PRIUS CHINA ZVW30L-AHXEBC / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

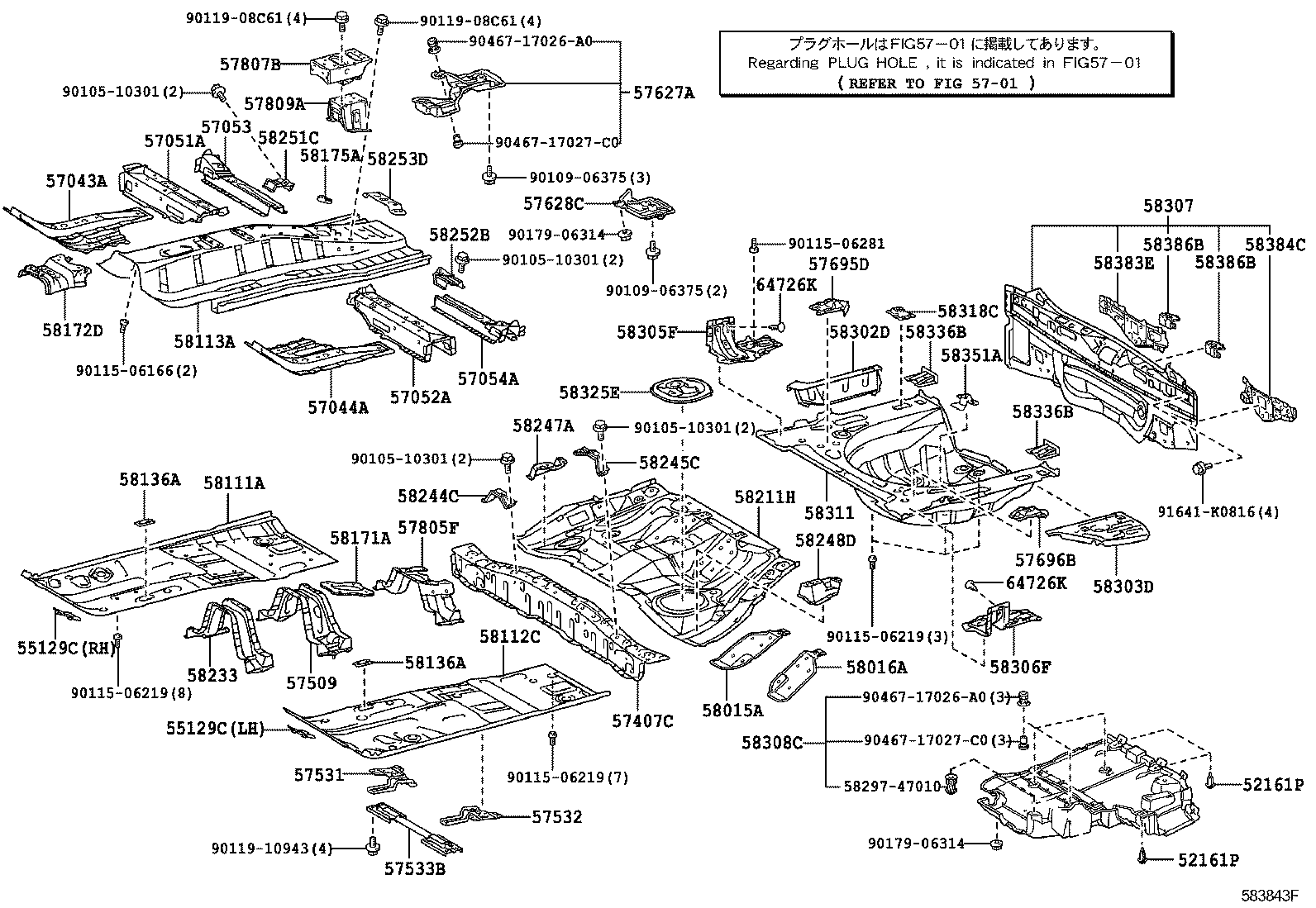

FLOOR PAN LOWER BACK PANEL

(1112- )

 PRIUS CHINA |  FLOOR PAN LOWER BACK PANEL 52161P - PIECE, REAR BUMPER 52161P - PIECE, REAR BUMPER 55129C - COVER, DASH PANEL HOLE 55129C - COVER, DASH PANEL HOLE ** Refer Fig 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER 57531 - BRACKET, FRONT FLOOR CENTER BRACE, RH 57532 - BRACKET, FRONT FLOOR CENTER BRACE, LH 57533B - BRACE, FRONT FLOOR, CENTER 57627A - COVER, REAR FLOOR SIDE MEMBER, RH 57628C - COVER, REAR FLOOR SIDE MEMBER, LH 57695D - BRACKET, REAR FLOOR MOUNTING, NO.2 RH 57696B - BRACKET, REAR FLOOR MOUNTING, NO.2 LH 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 57807B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2 57809A - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH 58111A - PAN, FRONT FLOOR, RH 58112C - PAN, FRONT FLOOR, LH 58113A - PANEL, FRONT FLOOR, CENTER 58136A - COVER, FRONT FLOOR SERVICE HOLE 58136A - COVER, FRONT FLOOR SERVICE HOLE 58171A - REINFORCE, PARKING BRAKE BASE 58172D - BRACKET, COMPUTER MOUNTING, NO.4 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 58211H - PAN, CENTER FLOOR 58233 - BRACKET, EXHAUST PIPE MOUNTING 58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH 58245C - BRACKET, REAR SEAT CUSHION MOUNTING, LH 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH 58248D - BRACKET, REAR SEAT HINGE, OUTER LH 58251C - BRACE, FLOOR PANEL, FRONT RH 58252B - BRACE, FLOOR PANEL, FRONT LH 58253D - BRACKET, PARKING BRAKE CABLE  ** Std Part 58302D - PANEL SUB-ASSY, REAR FLOOR, FRONT 58303D - PANEL SUB-ASSY, REAR FLOOR PARTITION 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58308C - COVER SUB-ASSY, REAR FLOOR STEP UNDER 58311 - PAN, REAR FLOOR 58318C - BRACKET, REAR FLOOR CROSSMEMBER 58325E - COVER, REAR FLOOR SERVICE HOLE 58336B - REINFORCEMENT, REAR FLOOR PAN 58336B - REINFORCEMENT, REAR FLOOR PAN 58351A - BRACKET, SPARE WHEEL CARRIER 58383E - REINFORCEMENT, BODY LOWER BACK, NO.2 RH 58384C - REINFORCEMENT, BODY LOWER BACK, NO.2 LH 58386B - BRACKET, REAR BUMPER COVER, NO.2 58386B - BRACKET, REAR BUMPER COVER, NO.2 64726K - CLIP, LUGGAGE TRIM, REAR 64726K - CLIP, LUGGAGE TRIM, REAR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
