TOYOTA RACTIS SCP100R-CHXNKH / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

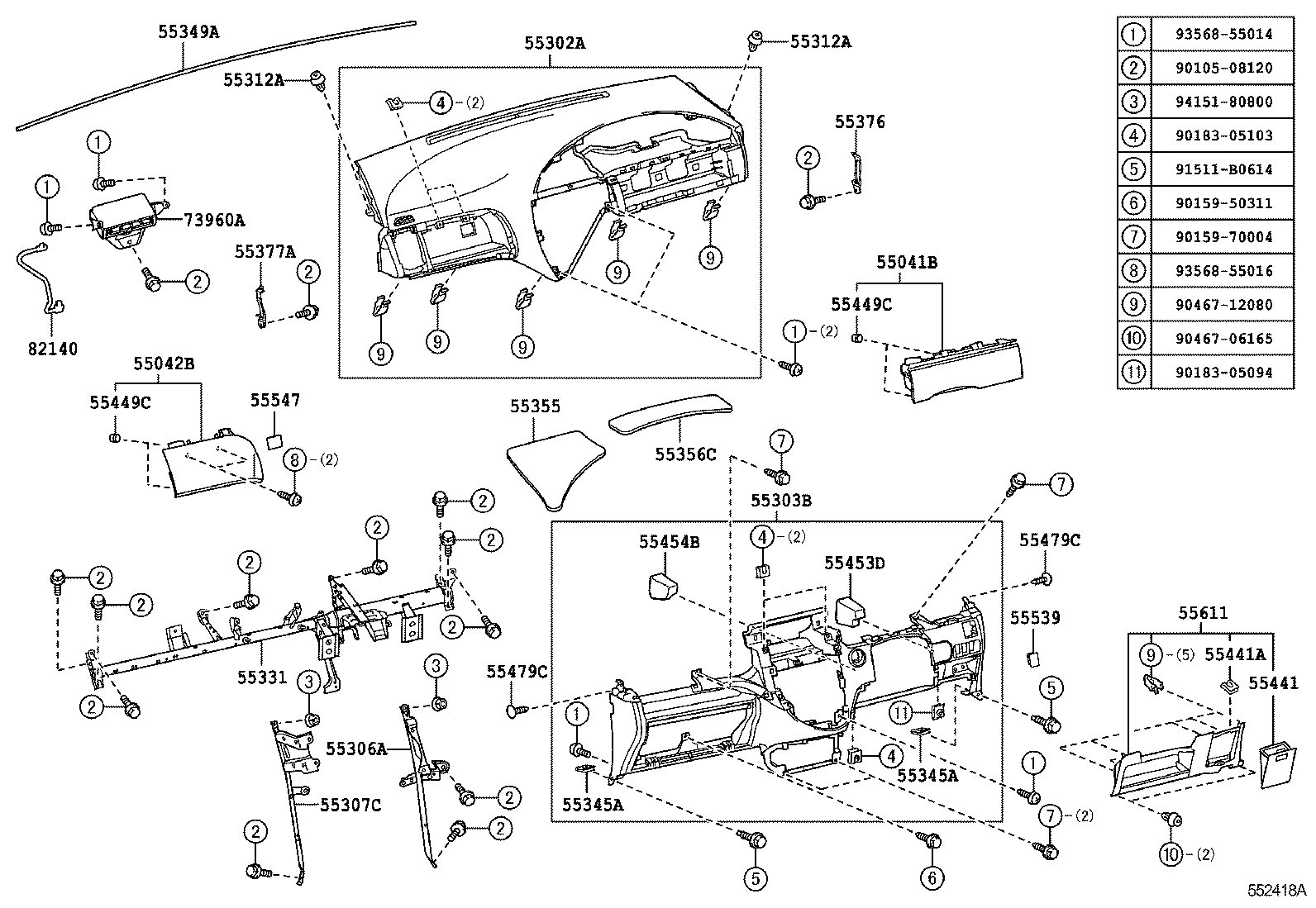

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 1 OF 2(0910- )

 RACTIS |  INSTRUMENT PANEL GLOVE COMPARTMENT 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 55312A - CLIP, INSTRUMENT PANEL 55312A - CLIP, INSTRUMENT PANEL 55331 - REINFORCEMENT, INSTRUMENT PANEL 55345A - CLIP, INSTRUMENT PANEL, NO.1 55345A - CLIP, INSTRUMENT PANEL, NO.1 55349A - CUSHION, INSTRUMENT PANEL 55355 - CUSHION, INSTRUMENT PANEL, NO.1 55356C - CUSHION, INSTRUMENT PANEL, NO.2 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 55441 - BOX, INSTRUMENT PANEL 55441A - SPRING, INSTRUMENT PANEL BOX 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 55479C - CLIP(FOR INSTRUMENT LOWER COVER) 55479C - CLIP(FOR INSTRUMENT LOWER COVER) 55539 - COVER, SPARE SWITCH HOLE 55547 - COVER, REMOTE CONTROL MIRROR HOLE 55611 - TRAY, INSTRUMENT PANEL UNDER 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR 82140 - WIRE ASSY, INSTRUMENT PANEL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
