TOYOTA LAND CRUISER 200 GRJ200R-GMMNK / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

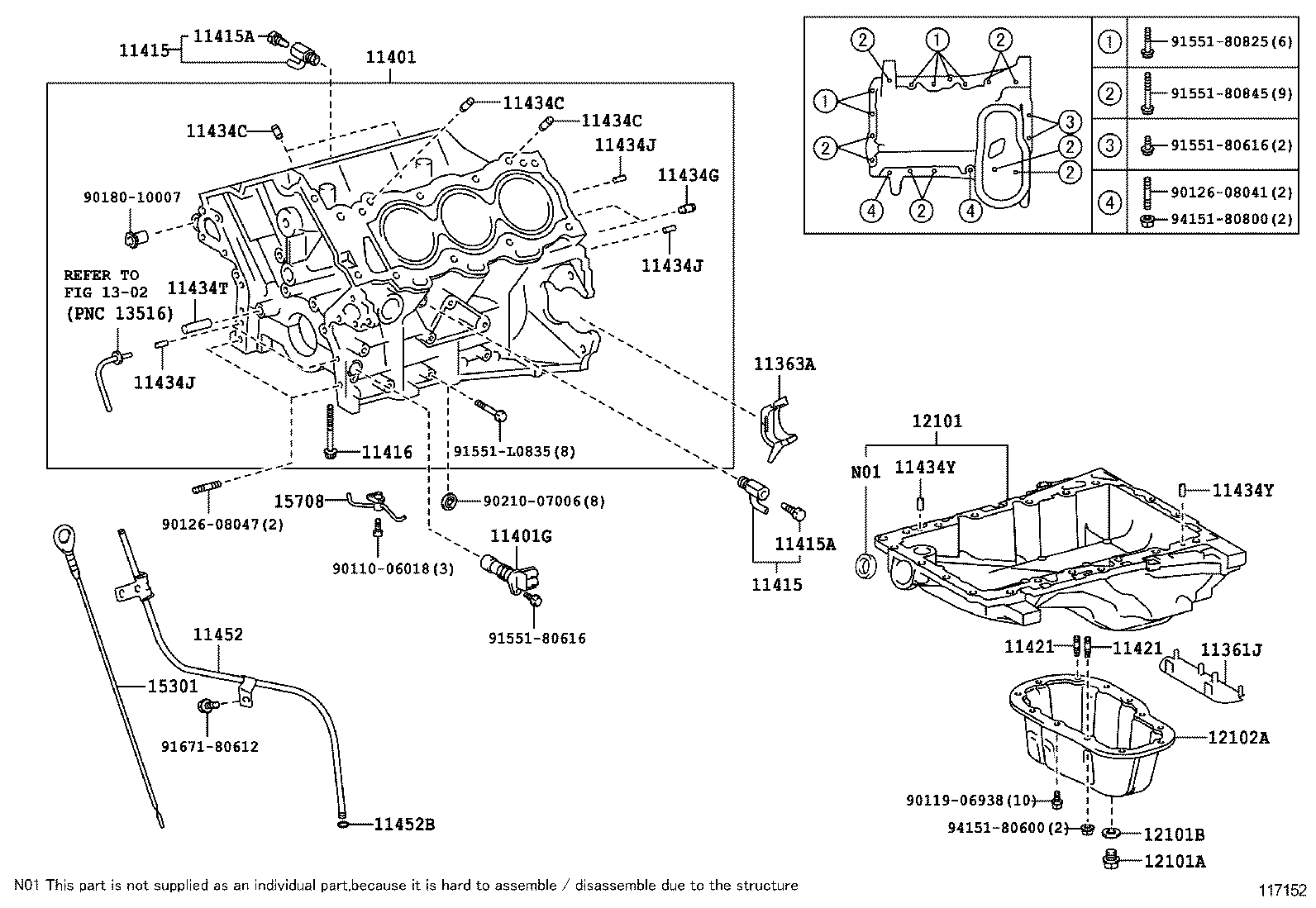

CYLINDER BLOCK

(0709-1201)1GRFE

LAND CRUISER 200 | CYLINDER BLOCK 11361J - COVER, FLYWHEEL HOUSING UNDER 11363A - COVER, FLYWHEEL HOUSING SIDE 11401 - BLOCK SUB-ASSY, CYLINDER 11401G - SENSOR, CRANK POSITION 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11421 - BOLT, STUD(FOR OIL PAN) 11421 - BOLT, STUD(FOR OIL PAN) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434G - PIN, STRAIGHT(FOR END PLATE) 11434J - PIN, RING (FOR CYLINDER HEAD SET) 11434J - PIN, RING (FOR CYLINDER HEAD SET) 11434J - PIN, RING (FOR CYLINDER HEAD SET) 11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET) 11434Y - PIN, STRAIGHT(FOR OIL PAN) 11434Y - PIN, STRAIGHT(FOR OIL PAN) 11452 - GUIDE, OIL LEVEL GAGE 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) 12102A - PAN SUB-ASSY, OIL, NO.2 ** Refer Fig 15301 - GAGE SUB-ASSY, OIL LEVEL 15708 - NOZZLE SUB-ASSY, OIL, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
