TOYOTA T U V KF80L-ERMDER / POWERTRAIN-CHASSIS / REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

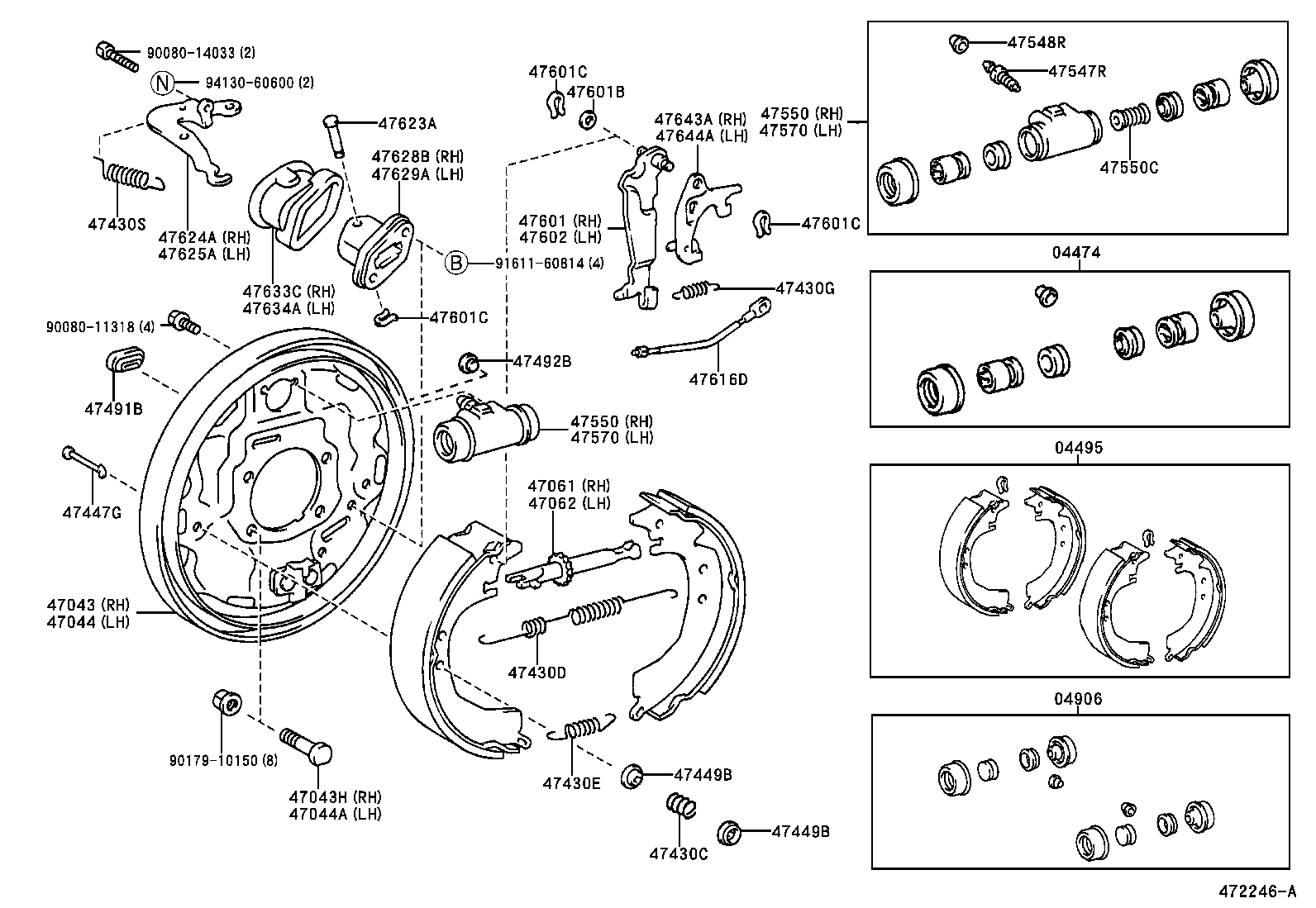

REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

(9902- )TAIW,VN

 T U V |  REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE 04474 - CYLINDER KIT, REAR WHEEL 04495 - SHOE KIT, REAR BRAKE 04906 - CUP KIT, REAR WHEEL CYLINDER 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) 47061 - STRUT SET, PARKING BRAKE SHOE, RH 47062 - STRUT SET, PARKING BRAKE SHOE, LH 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) 47430S - SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT) 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47491B - PLUG, HOLE(FOR REAR BRAKE) 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) 47601B - SHIM, REAR PARKING BRAKE SHOE LEVER 47601C - WASHER, C(FOR REAR BRAKE) 47601C - WASHER, C(FOR REAR BRAKE) 47601C - WASHER, C(FOR REAR BRAKE) 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) 47616D - WIRE, PARKING BRAKE 47623A - PIN(FOR PARKING BRAKE BELL CRANK) 47624A - CRANK, PARKING BRAKE BELL, RH 47625A - CRANK, PARKING BRAKE BELL, LH 47628B - BRACKET, REAR BRAKE BELLCRANK, RH 47629A - BRACKET, REAR BRAKE BELLCRANK, LH 47633C - BOOT, REAR BRAKE BELLCRANK, RH 47634A - BOOT, REAR BRAKE BELLCRANK, LH 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
