TOYOTA T U V KF80L-ERMDER / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

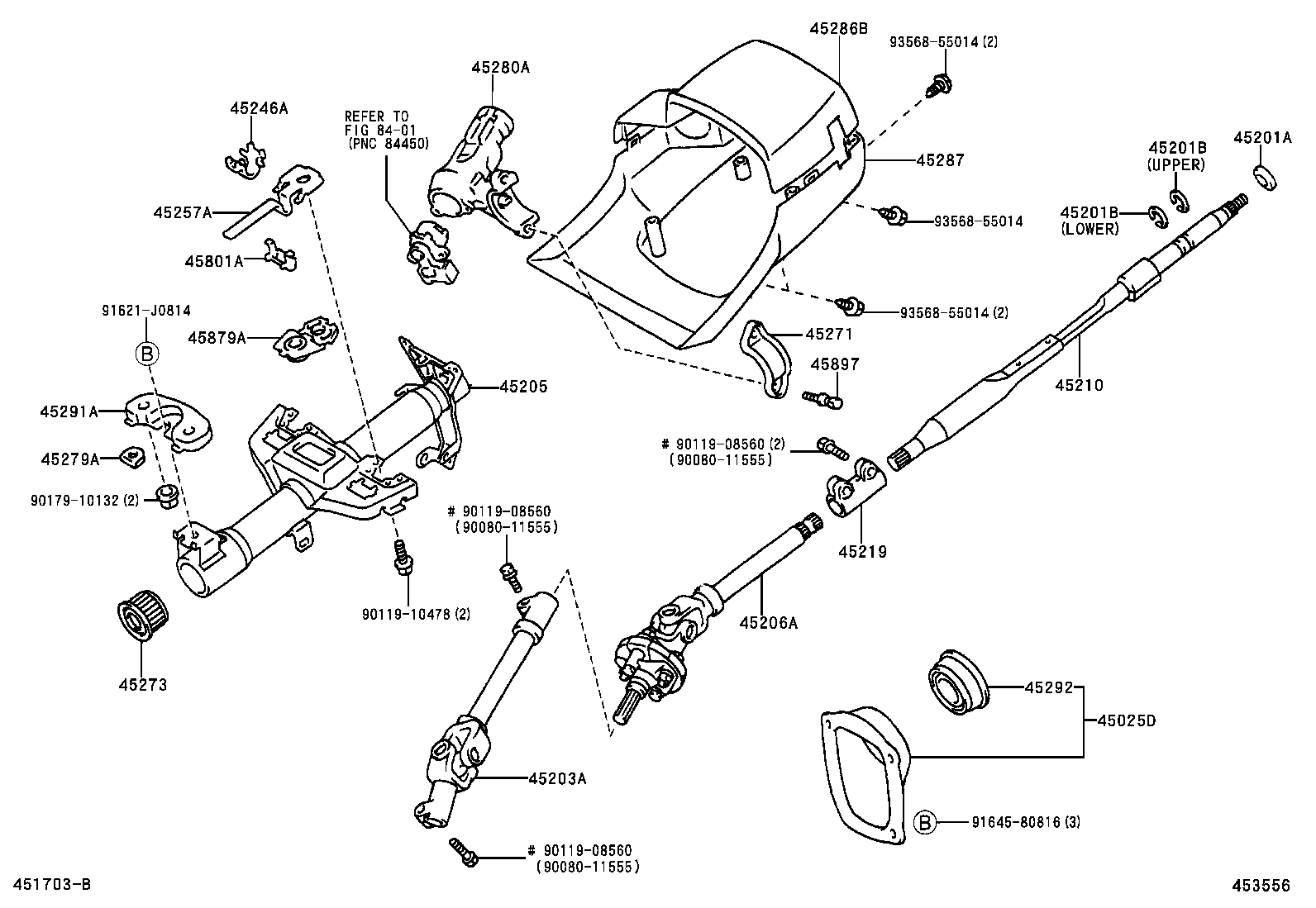

STEERING COLUMN SHAFT

(0208- )

 T U V |  STEERING COLUMN SHAFT 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45203A - SHAFT, STEERING INTERMEDIATE, NO.2 45205 - TUBE SUB-ASSY, STEERING COLUMN 45206A - YOKE SUB-ASSY, STEERING SLIDING W/COUPLING 45210 - SHAFT ASSY, STEERING MAIN 45219 - YOKE, STEERING SLIDING 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING 45271 - CLAMP, STEERING COLUMN, UPPER 45273 - BUSH, STEERING MAIN SHAFT 45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR 45280A - BRACKET ASSY, STEERING COLUMN, UPPER 45286B - COVER, STEERING COLUMN, UPR 45287 - COVER, STEERING COLUMN, LWR 45291A - SUPPORT, STEERING COLUMN TUBE 45292 - SEAL, MAIN SHAFT LOWER DUST 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING 45879A - CAPSULE, BREAK AWAY 45897 - BOLT, STEERING LOCK SET ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
