TOYOTA CROWN GRS182R-AETQK / POWERTRAIN-CHASSIS / REAR AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR AXLE HOUSING DIFFERENTIAL

(0411- )

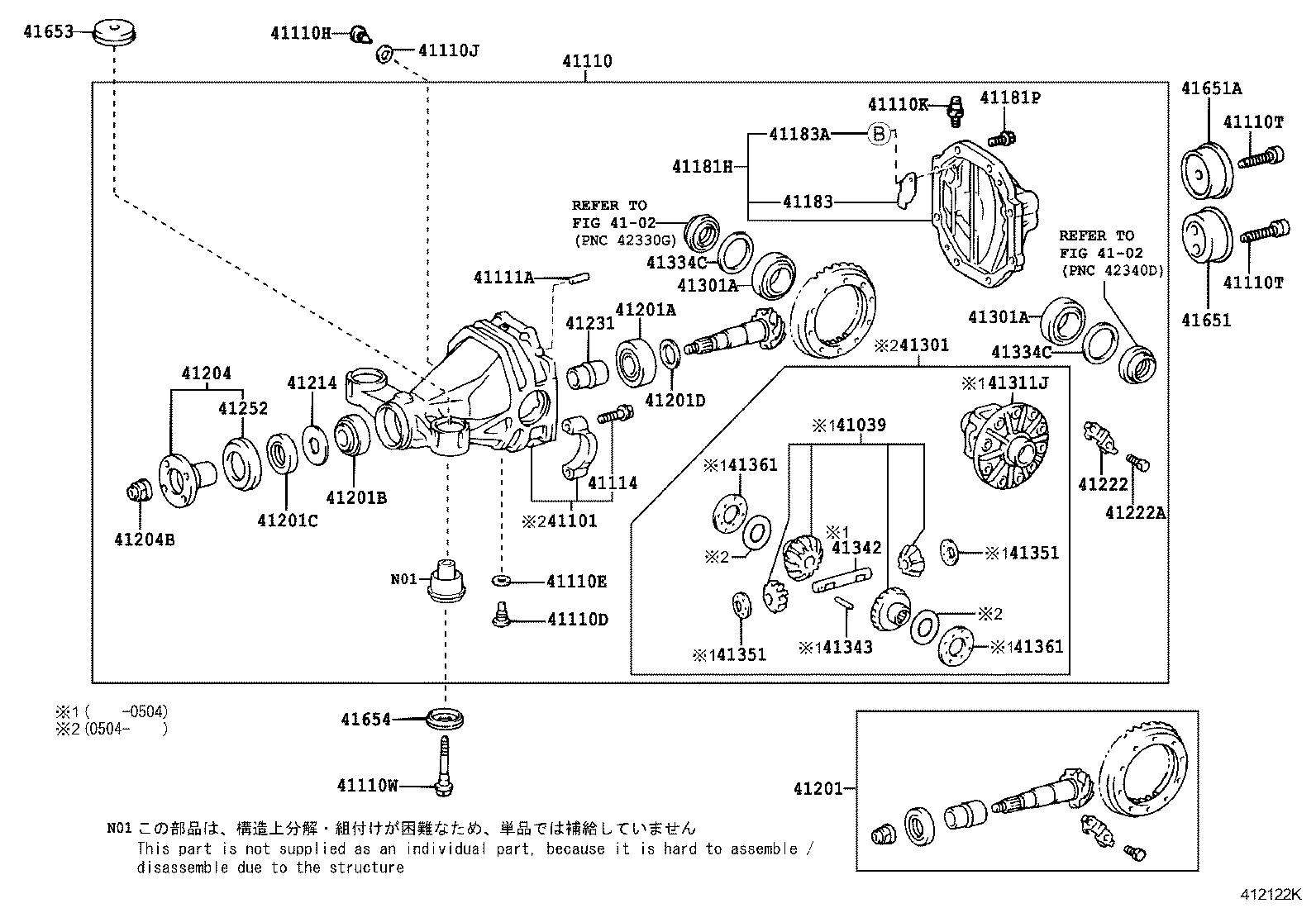

 CROWN |  REAR AXLE HOUSING DIFFERENTIAL ** Refer Fig ** Refer Fig 41039 - GEAR KIT, DIFFERENTIAL, REAR 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR 41110 - CARRIER ASSY, DIFFERENTIAL, REAR 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) 41110K - PLUG, BREATHER (FOR REAR DIFFERENTIAL) 41110T - BOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET) 41110T - BOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET) 41110W - BOLT, NO.4 (FOR REAR DIFFERENTIAL CARRIER SET) 41111A - PIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER) 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP 41181H - COVER, REAR DIFFERENTIAL CARRIER 41181P - BOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) 41183 - DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL 41183A - BOLT (FOR REAR DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR) 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR 41201A - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR) 41201B - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT) 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR 41204B - NUT (FOR REAR DRIVE PINION) 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41311J - CASE, REAR DIFFERENTIAL 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41342 - SHAFT, REAR DIFFERENTIAL PINION 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 41651A - CUSHION, REAR DIFFERENTIAL MOUNT, NO.2 41653 - STOPPER, REAR DIFFERENTIAL MOUNT, UPPER 41654 - STOPPER, REAR DIFFERENTIAL MOUNT, LOWER
