TOYOTA CROWN JZS175R-AEPQF / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

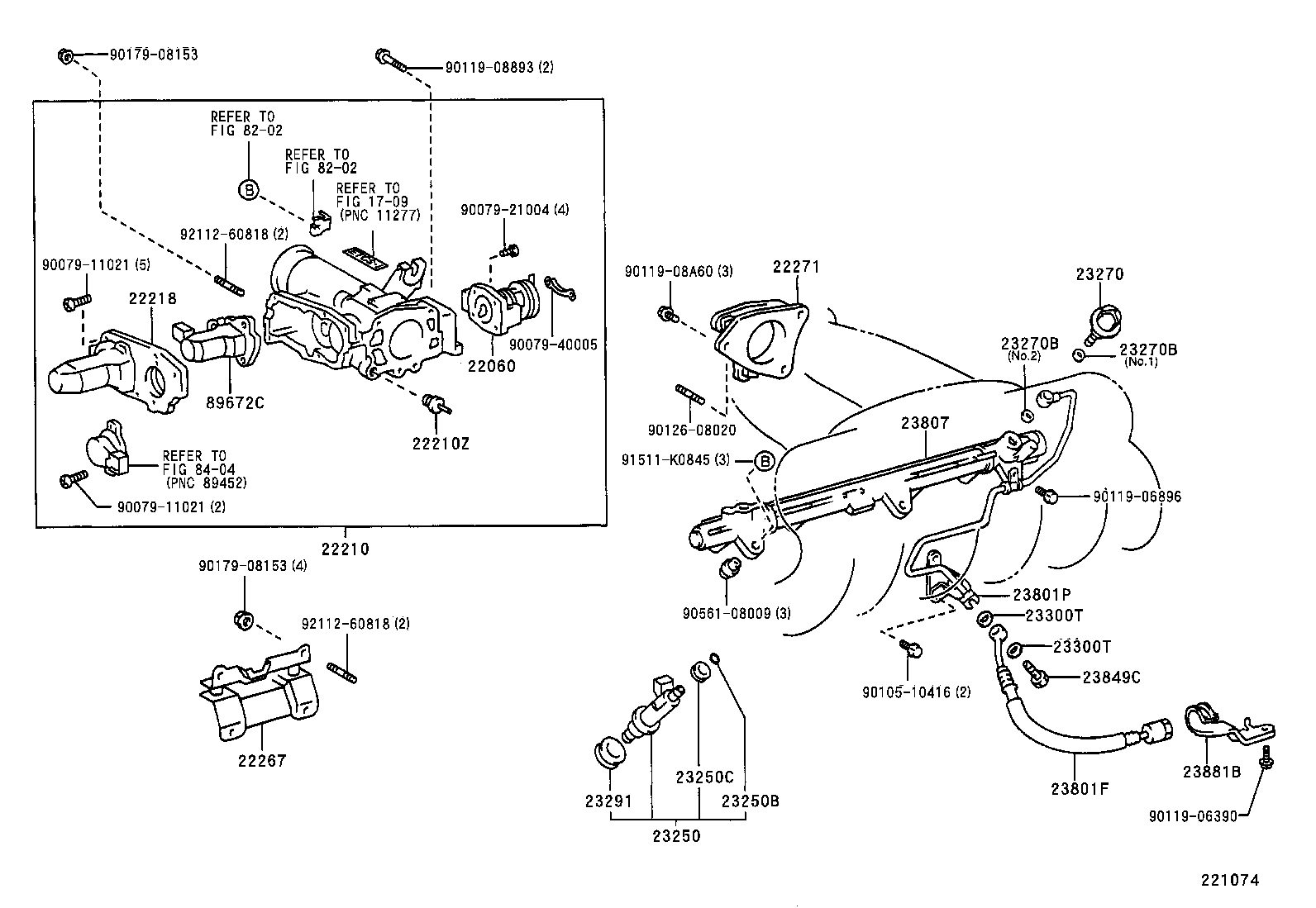

FUEL INJECTION SYSTEM

ILLUST NO. 1 OF 2(9909- )

 CROWN |  FUEL INJECTION SYSTEM ** Refer Fig 22060 - LEVER ASSY, THROTTLE W/SENSOR 22210 - BODY ASSY, THROTTLE 22210Z - THERMOSTAT, MANIFOLD 22218 - COVER(FOR THROTTLE BODY) 22267 - BRACKET, THROTTLE BODY 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23291 - INSULATOR, INJECTOR VIBRATION 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23801F - HOSE, FUEL, NO.1 23801P - PIPE SUB-ASSY, FUEL, NO.1 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) 23881B - BRACKET, FUEL HOSE ** Refer Fig ** Refer Fig ** Refer Fig 89672C - MOTOR, THROTTLE CONTROL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
