TOYOTA LITEACE VAN WAGON YR22RG-PRSEQ / BODY / FRONT FLOOR PANEL FRONT FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

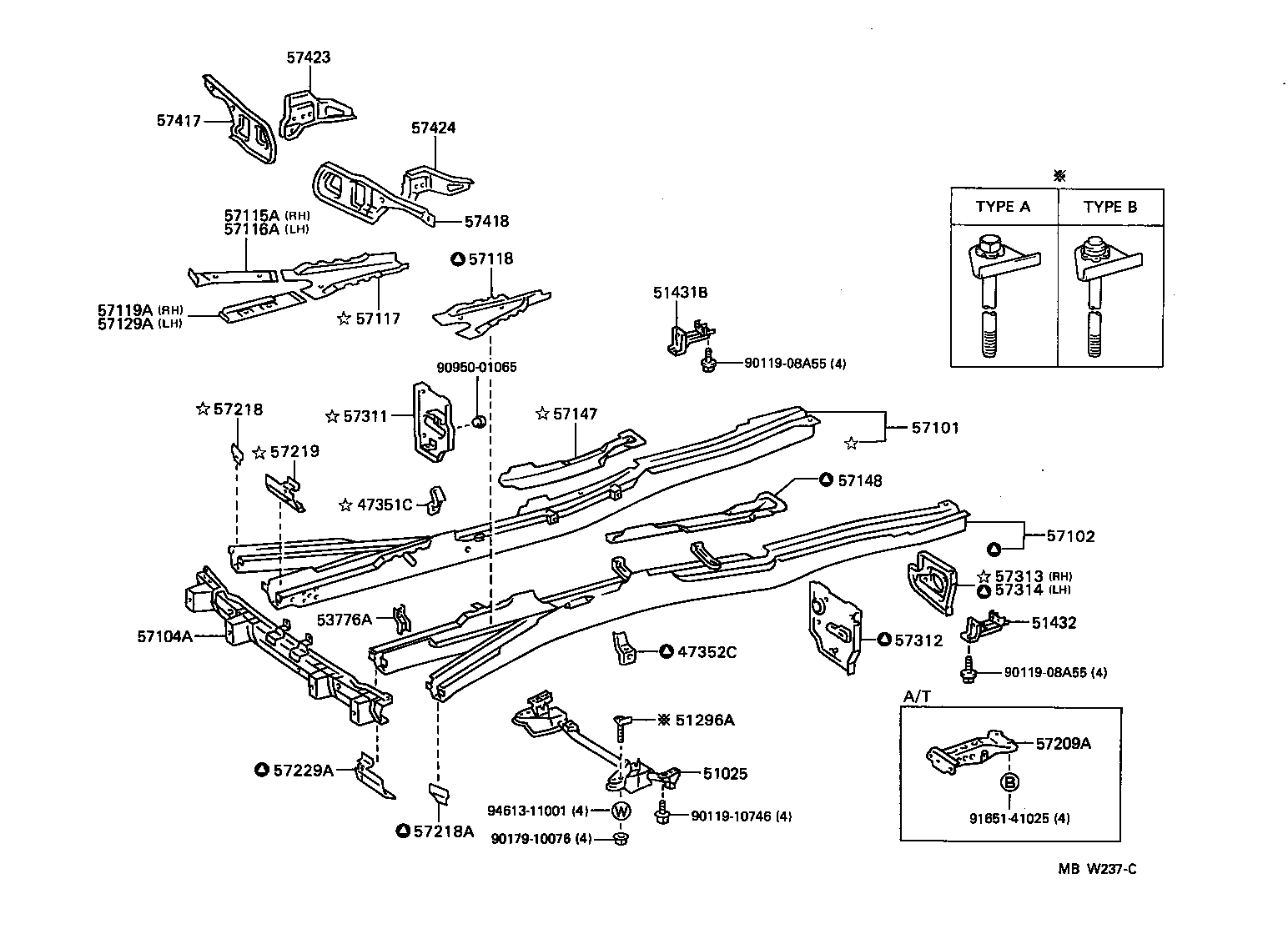

FRONT FLOOR PANEL FRONT FLOOR MEMBER

ILLUST NO. 1 OF 2(9201- )

 LITEACE VAN WAGON |  FRONT FLOOR PANEL FRONT FLOOR MEMBER 47351C - BRACKET, FLEXIBLE HOSE, RH 47352C - BRACKET, FLEXIBLE HOSE, LH 51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING 51296A - BOLT, ENGINE FRONT SUPPORT MEMBER 51431B - BRACKET, ENGINE REAR MOUNTING 51432 - BRACKET, ENGINE REAR MOUNTING, LH 53776A - BRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57104A - MEMBER SUB-ASSY, FRONT CROSS 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH 57119A - PLATE, FRONT SIDE MEMBER, FRONT RH 57129A - PLATE, FRONT SIDE MEMBER, FRONT LH 57147 - PLATE, FRONT SIDE MEMBER, REAR RH 57148 - PLATE, FRONT SIDE MEMBER, REAR LH 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 57218A - GUSSET, FRONT SIDE MEMBER, NO.1 LH 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 57229A - GUSSET, FRONT SIDE MEMBER, NO.2 LH 57311 - OUTRIGGER, NO.1 RH 57312 - OUTRIGGER, NO.1 LH 57313 - OUTRIGGER, NO.2 RH 57314 - OUTRIGGER, NO.2 LH 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH 57423 - BRACKET, FRONT FLOOR REINFORCEMENT, RH 57424 - BRACKET, FRONT FLOOR REINFORCEMENT, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
