TOYOTA DYNA200 BU212R-TKMQSQ3 / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR CLEANER

(9505- )14B,15BF..BU211,212,221,222

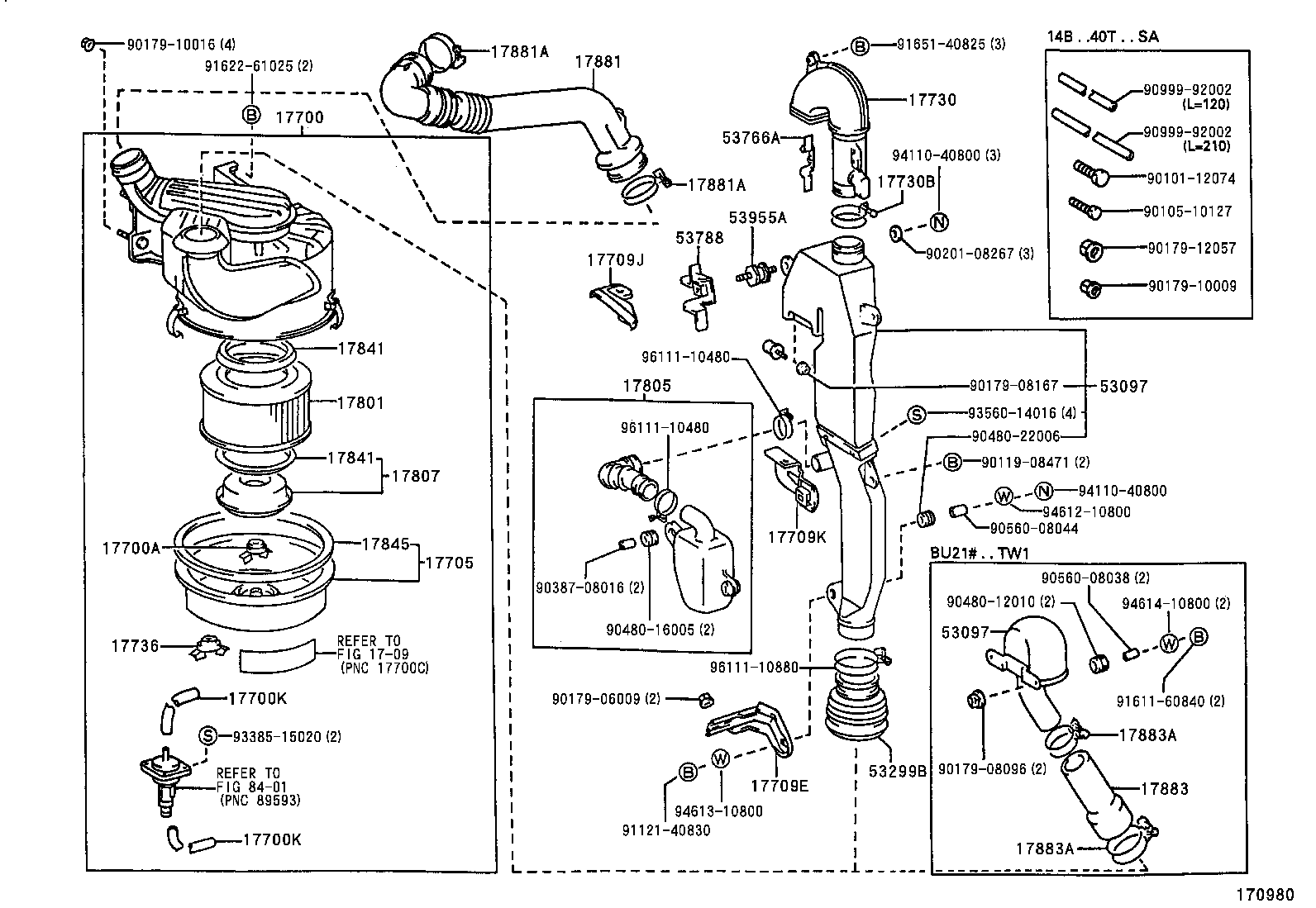

DYNA200 | AIR CLEANER ** Refer Fig 17700 - CLEANER ASSY, AIR 17700A - NUT, WING(FOR AIR CLEANER) 17700K - HOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR) 17700K - HOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR) 17705 - CAP SUB-ASSY, AIR CLEANER 17709E - BRACKET, AIR CLEANER INLET, NO.2 17709J - BRACKET, AIR CLEANER INLET, NO.3 17709K - BRACKET, AIR CLEANER INLET, NO.4 17730 - PRECLEANER ASSY, AIR W/HOSE 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) 17736 - NUT, AIR CLEANER CASE 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17805 - CONNECTOR SUB-ASSY, INTAKE AIR 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET 17841 - GASKET, FILTER ELEMENT 17841 - GASKET, FILTER ELEMENT 17845 - GASKET, AIR CLEANER CAP 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17883 - HOSE, AIR CLEANER, NO.3 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) 53097 - INLET SUB-ASSY 53097 - INLET SUB-ASSY 53299B - DUCT, COOL AIR INTAKE 53766A - BRACKET, AIR CLEANER INLET PIPE 53788 - BRACKET, AIR CLEANER INLET, NO.6 53955A - CUSHION, AIR CLEANER INLET NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
