TOYOTA HIACE VAN COMUTER RZH113L-RBMRE / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR CLEANER

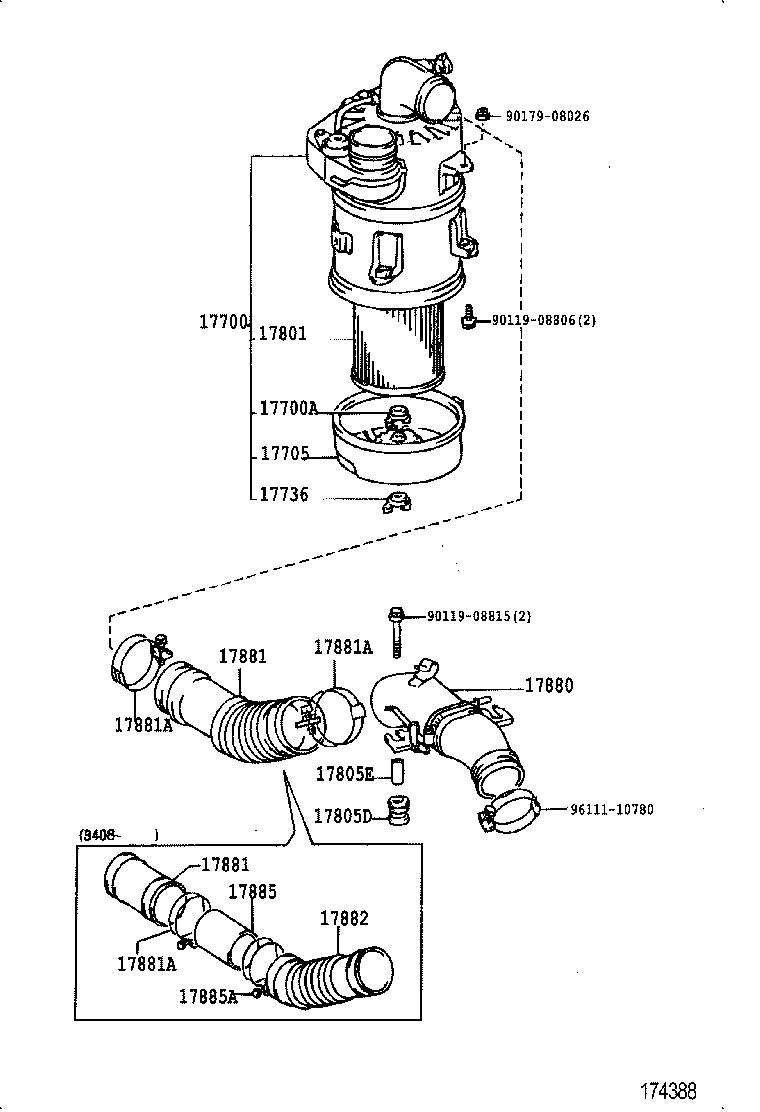

ILLUST NO. 1 OF 2(9405-9508)2RZE

HIACE VAN COMUTER | AIR CLEANER 17700 - CLEANER ASSY, AIR 17700A - NUT, WING(FOR AIR CLEANER) 17705 - CAP SUB-ASSY, AIR CLEANER 17736 - NUT, AIR CLEANER CASE 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17805D - GROMMET(FOR INTAKE AIR CONNECTOR) 17805E - COLLAR(FOR INTAKE AIR CONNECTOR) 17880 - HOSE ASSY, AIR CLEANER 17881 - HOSE, AIR CLEANER, NO.1 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17885 - PIPE, AIR CLEANER 17885A - HOSE, AIR CLEANER, NO.5 ** Std Part ** Std Part ** Std Part ** Std Part
