TOYOTA HIACE RH20RV-JRFQ / POWERTRAIN-CHASSIS / TRANSMISSION GEAR MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TRANSMISSION GEAR MTM

(7702- )4H

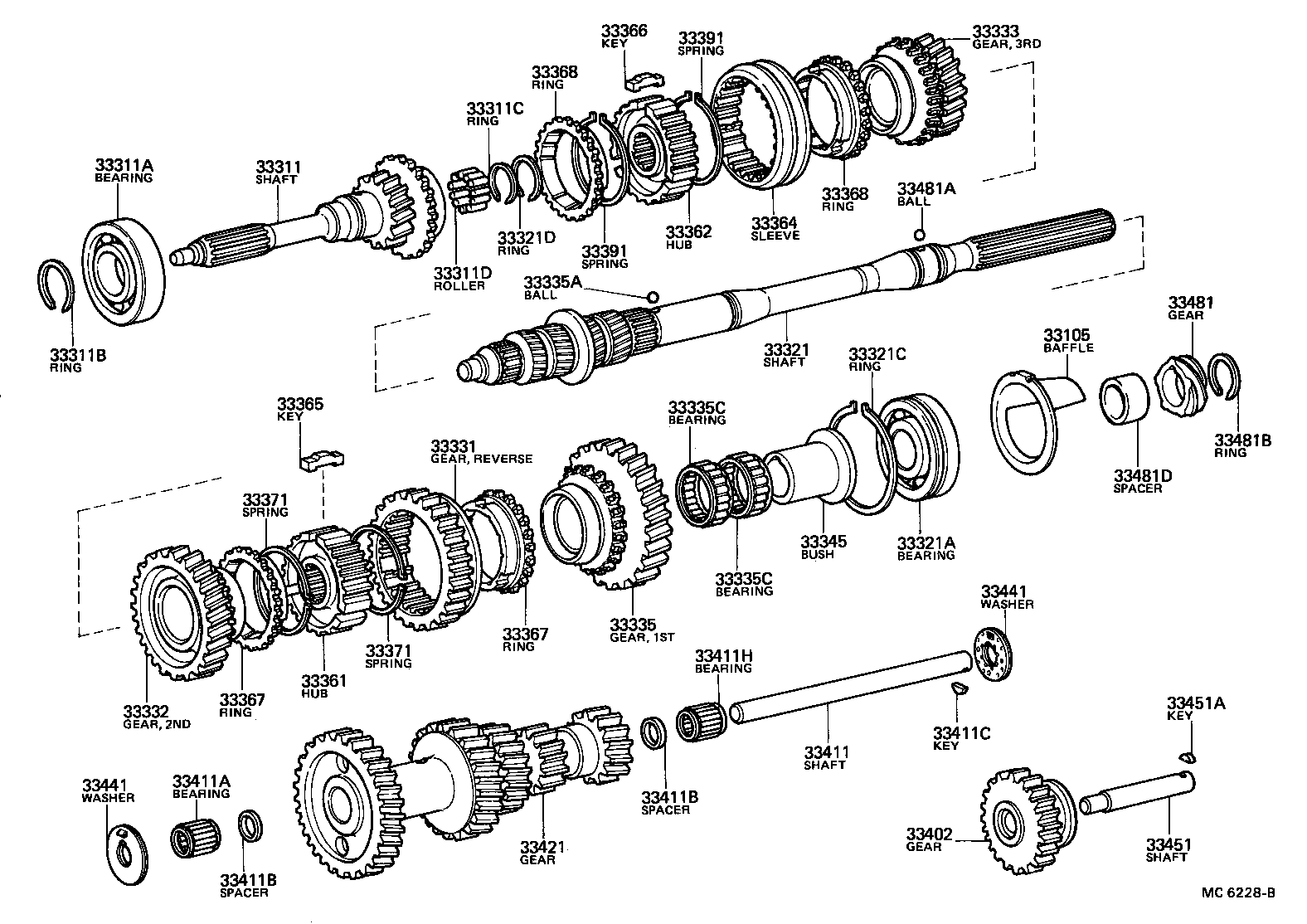

 HIACE |  TRANSMISSION GEAR MTM 33105 - BAFFLE SUB-ASSY, EXTENSION HOUSING OIL 33311 - SHAFT, INPUT 33311A - BEARING (FOR INPUT SHAFT FRONT) 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) 33311D - BEARING, INPUT SHAFT 33321 - SHAFT, OUTPUT 33321A - BEARING (FOR OUTPUT SHAFT REAR) 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) 33331 - GEAR, REVERSE 33332 - GEAR, 2ND 33333 - GEAR, 3RD 33335 - GEAR, 1ST 33335A - BALL, 1ST SHIFT RESTRICT 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) 33345 - BUSH, 1ST GEAR 33361 - HUB, TRANSMISSION CLUTCH, NO.1 33362 - HUB, TRANSMISSION CLUTCH, NO.2 33364 - SLEEVE, TRANSMISSION HUB, NO.2 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 33367 - RING, SYNCHRONIZER, NO.1 33367 - RING, SYNCHRONIZER, NO.1 33368 - RING, SYNCHRONIZER, NO.2 33368 - RING, SYNCHRONIZER, NO.2 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33402 - GEAR SUB-ASSY, REVERSE IDLER 33411 - COUNTERSHAFT 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) 33411B - SPACER(FOR COUNTER GEAR BEARING) 33411B - SPACER(FOR COUNTER GEAR BEARING) 33411C - KEY, WOODRUFF(FOR COUNTER GEAR SHAFT) 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) 33421 - GEAR, COUNTER 33441 - WASHER, COUNTER GEAR SIDE THRUST, NO.1 33441 - WASHER, COUNTER GEAR SIDE THRUST, NO.1 33451 - SHAFT, REVERSE IDLER GEAR 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) 33481 - GEAR, SPEEDOMETER DRIVE (MTM) 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR)
