TOYOTA HIACE RH20RV-JRFQ / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

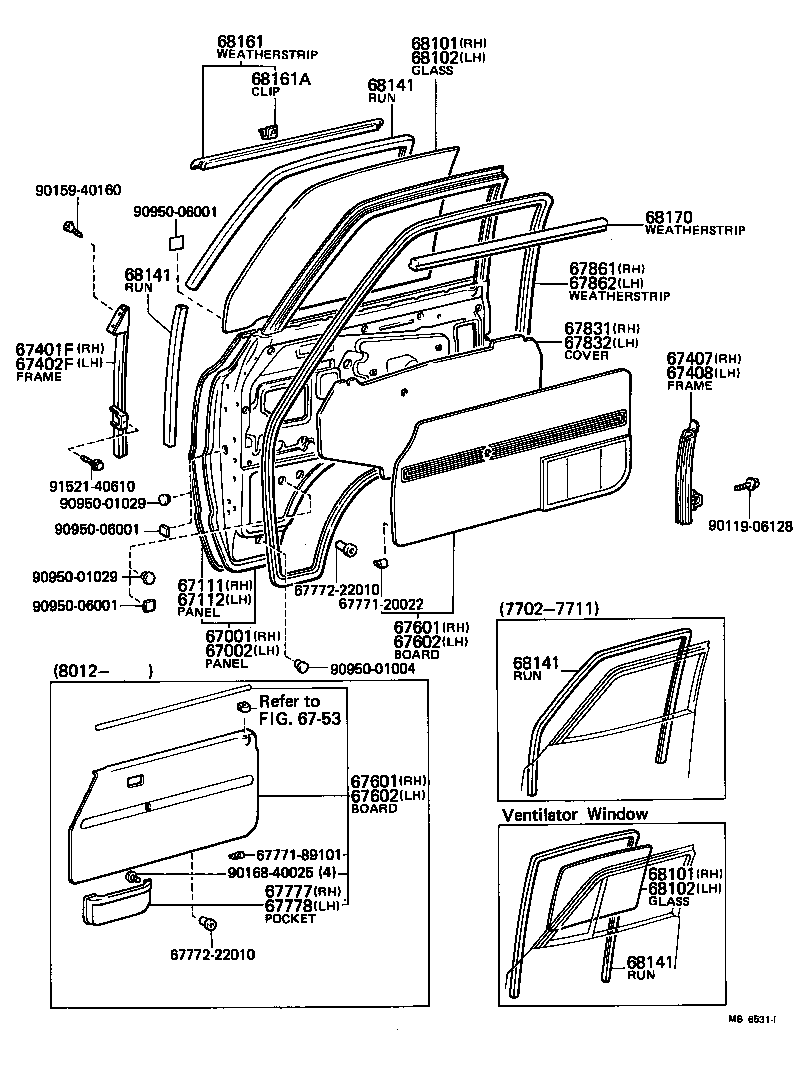

FRONT DOOR PANEL GLASS

(7702- )

 HIACE |  FRONT DOOR PANEL GLASS 67001 - PANEL SUB-ASSY, FRONT DOOR, RH 67002 - PANEL SUB-ASSY, FRONT DOOR, LH 67111 - PANEL, FRONT DOOR, OUTER RH 67112 - PANEL, FRONT DOOR, OUTER LH 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH ** Refer Fig 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part 67777 - POCKET, FRONT DOOR TRIM, RH 67778 - POCKET, FRONT DOOR TRIM, LH 67831 - COVER, FRONT DOOR SERVICE HOLE, RH 67832 - COVER, FRONT DOOR SERVICE HOLE, LH 67861 - WEATHERSTRIP, FRONT DOOR, RH 67862 - WEATHERSTRIP, FRONT DOOR, LH 68101 - GLASS SUB-ASSY, FRONT DOOR, RH 68101 - GLASS SUB-ASSY, FRONT DOOR, RH 68102 - GLASS SUB-ASSY, FRONT DOOR, LH 68102 - GLASS SUB-ASSY, FRONT DOOR, LH 68141 - RUN, FRONT DOOR GLASS 68141 - RUN, FRONT DOOR GLASS 68141 - RUN, FRONT DOOR GLASS 68141 - RUN, FRONT DOOR GLASS 68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
