TOYOTA HIACE RH20RV-JRFQ / BODY / INSIDE TRIM BOARD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

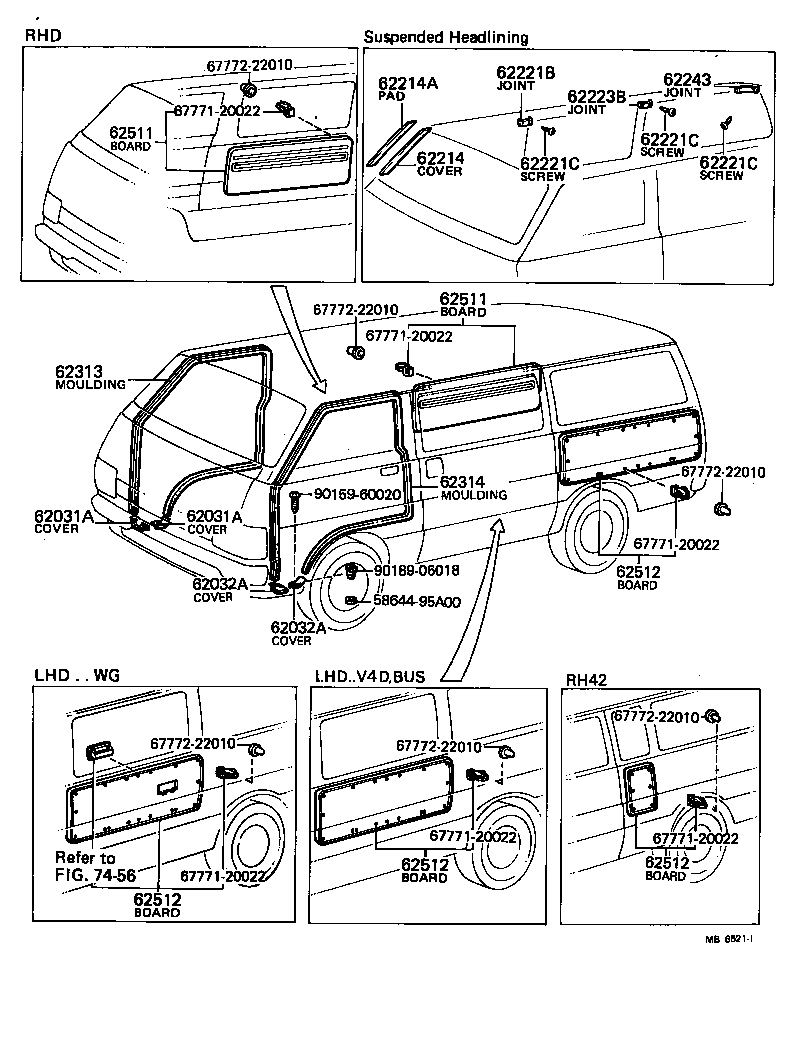

INSIDE TRIM BOARD

(7702- )LH20,30,RH20,22,3#,42

HIACE | INSIDE TRIM BOARD ** Std Part 62031A - COVER, FRONT DOOR OPENING, RH 62031A - COVER, FRONT DOOR OPENING, RH 62032A - COVER, FRONT DOOR OPENING, LH 62032A - COVER, FRONT DOOR OPENING, LH 62214 - COVER, FRONT PILLAR, INNER 62214A - PAD, FRONT PILLAR, INNER 62221B - JOINT, CENTER PILLAR 62221C - SCREW, PILLAR JOINT SETTING 62221C - SCREW, PILLAR JOINT SETTING 62221C - SCREW, PILLAR JOINT SETTING 62223B - JOINT, QUARTER LOCK PILLAR 62243 - JOINT, QUARTER INNER COVER 62313 - MOULDING, FRONT DOOR OPENING TRIM, RH 62314 - MOULDING, FRONT DOOR OPENING TRIM, LH 62511 - BOARD, QUARTER INSIDE TRIM, RH 62511 - BOARD, QUARTER INSIDE TRIM, RH 62512 - BOARD, QUARTER INSIDE TRIM, LH 62512 - BOARD, QUARTER INSIDE TRIM, LH 62512 - BOARD, QUARTER INSIDE TRIM, LH 62512 - BOARD, QUARTER INSIDE TRIM, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Refer Fig ** Std Part ** Std Part
