TOYOTA CRESSIDA RX30R-EKDN / TOOL-ENGINE-FUEL / TIMING CHAIN

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

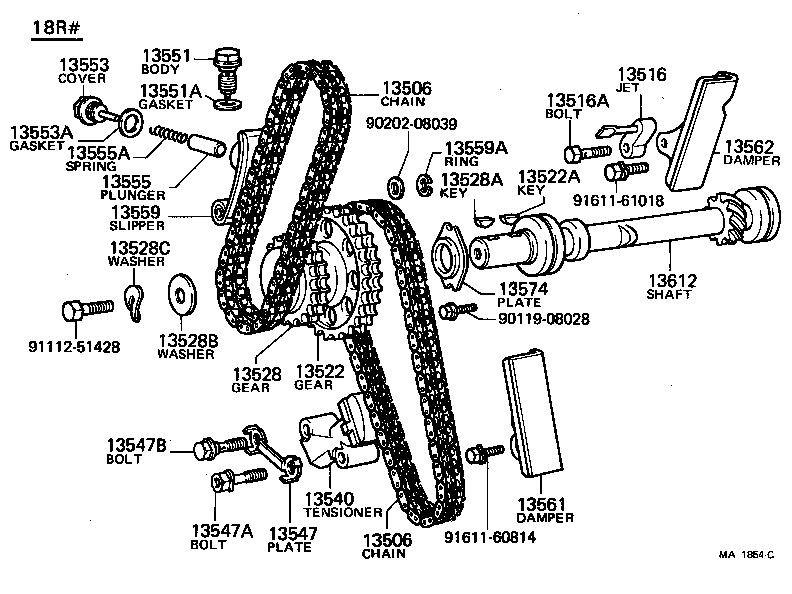

TIMING CHAIN

(7612-8008)18R#

 CRESSIDA |  TIMING CHAIN 13506 - CHAIN SUB-ASSY 13506 - CHAIN SUB-ASSY 13516 - JET, OIL 13516A - BOLT UNION(FOR OIL JET) 13522 - GEAR, PUMP DRIVE SHAFT 13522A - KEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR) 13528 - GEAR, CAMSHAFT DRIVE 13528A - KEY, WOODRUFF(FOR CAMSHAFT DRIVE GEAR) 13528B - WASHER, PLATE(FOR CAMSHAFT DRIVE GEAR SET) 13528C - WASHER, WAVE(FOR CAMSHAFT DRIVE GEAR SET) 13540 - TENSIONER ASSY, CHAIN, NO.1 13547 - PLATE, TENSIONER BOLT LOCK, NO.1 13547A - BOLT(FOR TENSIONER LOCK PLATE SET) 13547B - BOLT, UNION(FOR TENSIONER LOCK PLATE) 13551 - BODY, CHAIN TENSIONER, NO.2 13551A - GASKET(FOR CHAIN TENSIONER BODY) 13553 - COVER, CHAIN TENSIONER DUST 13553A - GASKET(FOR CHAIN TENSIONER DUST COVER) 13555 - PLUNGER, CHAIN TENSIONER, NO.2 13555A - SPRING(FOR CHAIN TENSIONER PLUNGER) 13559 - SLIPPER, CHAIN TENSIONER 13559A - RING, E(FOR CHAIN TENSIONER SLIPPER) 13561 - DAMPER, CHAIN VIBRATION, NO.1 13562 - DAMPER, CHAIN VIBRATION, NO.2 13574 - PLATE, PUMP DRIVE SHAFT 13612 - SHAFT, PUMP DRIVE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
