TOYOTA HEAVY DUTY TRUCK FB100L-K / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT STEERING GEAR LINK

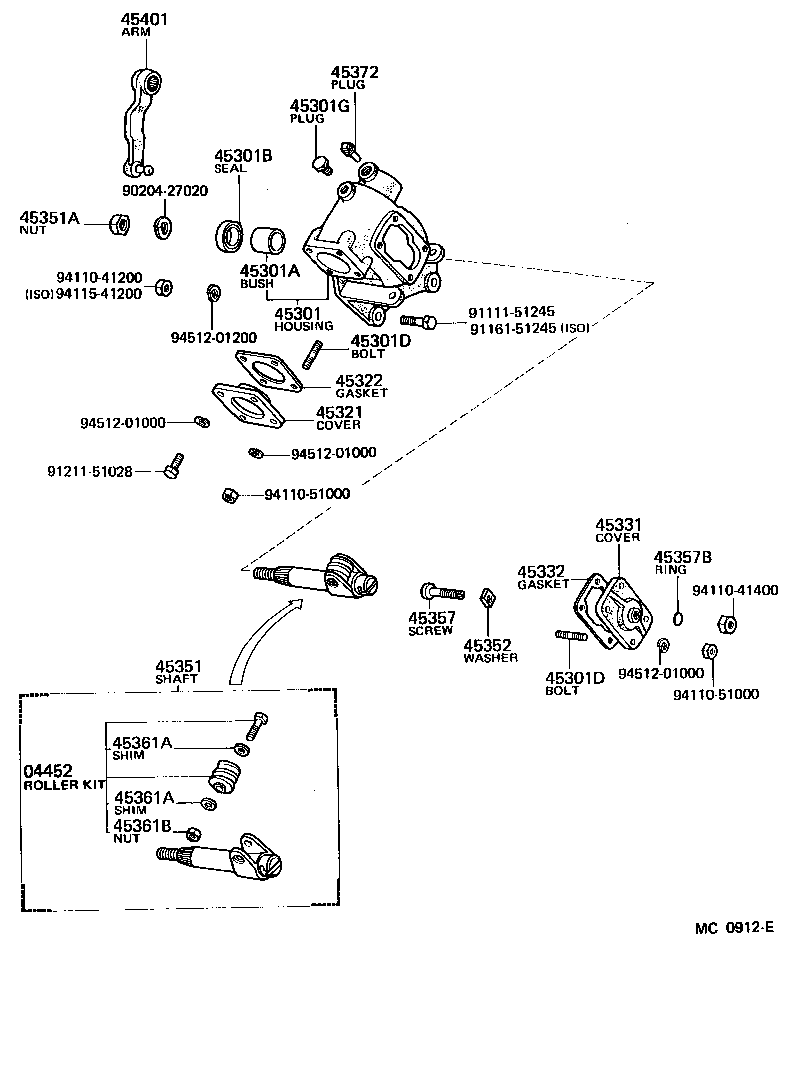

ILLUST NO. 1 OF 2(6903-7003)FB100

HEAVY DUTY TRUCK | FRONT STEERING GEAR LINK 04452 - ROLLER KIT, STEERING SECTOR 45301 - HOUSING SUB-ASSY, STEERING GEAR 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 45301B - SEAL, OIL(FOR SECTOR SHAFT) 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) 45301G - PLUG, STEERING GEAR BOX OIL 45321 - COVER, GEAR HOUSING END 45322 - GASKET, GEAR HOUSING END COVER 45331 - COVER, SECTOR SHAFT END 45332 - GASKET, SECTOR SHAFT END COVER 45351 - SHAFT, STEERING SECTOR 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) 45352 - WASHER, SECTOR SHAFT THRUST 45357 - SCREW, SECTOR SHAFT ADJUSTING 45357B - RING, O, SECTOR SHAFT ADJUSTING SCREW 45361A - SHIM(FOR STEERING SECTOR ROLLER ADJUST) 45361A - SHIM(FOR STEERING SECTOR ROLLER ADJUST) 45361B - NUT(FOR STEERING SECTOR ROLLER SETTING) 45372 - PLUG, STEERING GEAR HOUSING OIL 45401 - ARM SUB-ASSY, PITMAN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
