TOYOTA DYNA XZU302-TPMLS3 / TOOL-ENGINE-FUEL / MOUNTING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

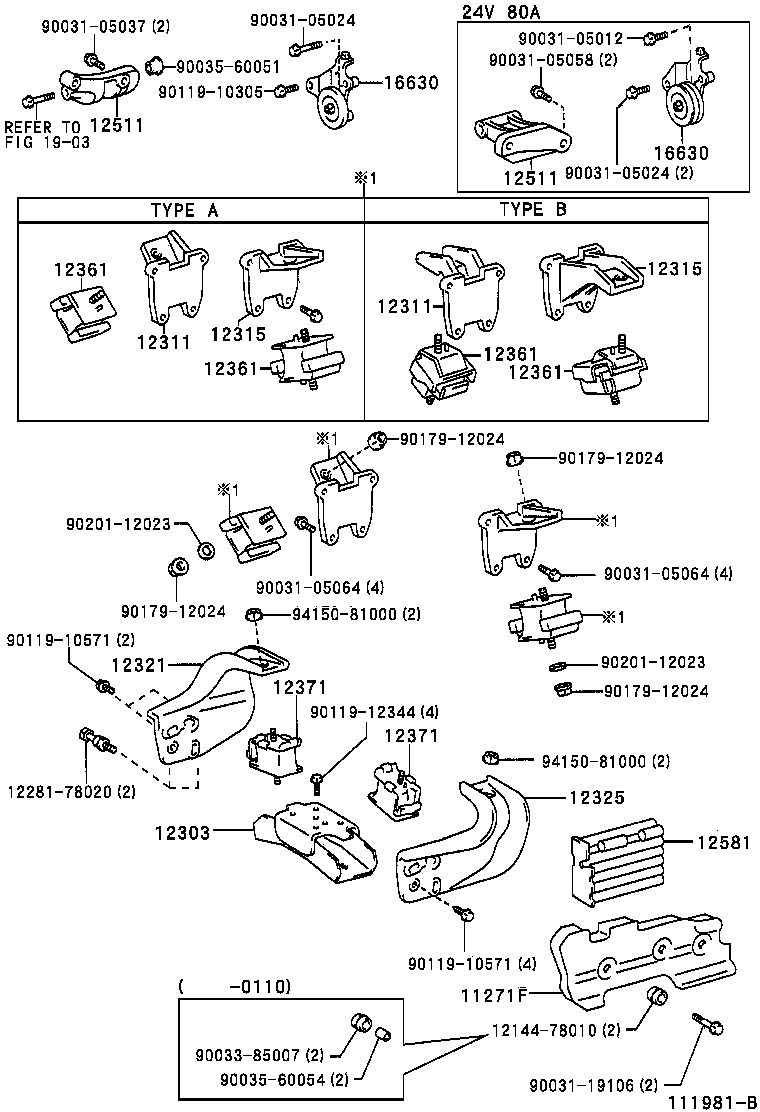

MOUNTING

(0010- )S05C

 DYNA |  MOUNTING 11271F - COVER, CYLINDER BLOCK SIDE  ** Std Part  ** Std Part 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 12325 - BRACKET, ENGINE MOUNTING, NO.3 12361 - INSULATOR, ENGINE MOUNTING, FRONT 12361 - INSULATOR, ENGINE MOUNTING, FRONT 12361 - INSULATOR, ENGINE MOUNTING, FRONT 12361 - INSULATOR, ENGINE MOUNTING, FRONT 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 12511 - BRACKET, ALTERNATOR, NO.1 12511 - BRACKET, ALTERNATOR, NO.1 12581 - INSULATOR, CYLINDER BLOCK, NO.1 16630 - PULLEY ASSY, IDLER 16630 - PULLEY ASSY, IDLER ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
