TOYOTA DYNA 100 LY100L-TBMBSW3 / BODY / REAR BODY FLOOR FENDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

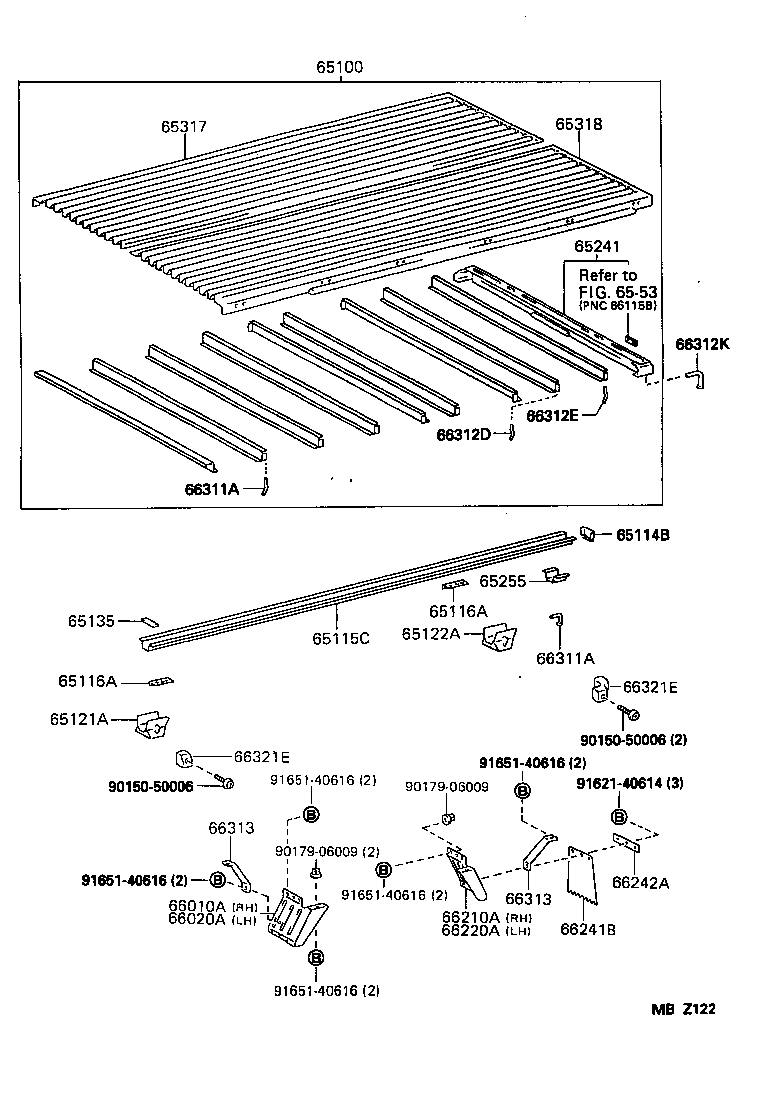

REAR BODY FLOOR FENDER

(9505- )YY100 ; (9505- )LY100..RHD ; (9505

DYNA 100 | REAR BODY FLOOR FENDER 65100 - FLOOR ASSY, REAR BODY 65114B - COVER, MAIN SILL, REAR 65115C - SILL, MAIN 65116A - PLATE, MAIN SILL 65116A - PLATE, MAIN SILL 65121A - BRACKET, MAIN SILL MOUNTING, NO.1 65122A - BRACKET, MAIN SILL MOUNTING, NO.2 65135 - PATCH, MAIN SILL 65241 - SILL, REAR CROSS 65255 - GUSSET, MAIN SILL 65317 - PANEL, FLOOR SIDE, RH 65318 - PANEL, FLOOR SIDE, LH ** Refer Fig 66010A - FENDER ASSY, REAR NO.2 RH 66020A - FENDER ASSY, REAR NO.2 LH 66210A - FENDER ASSY, REAR NO.1 RH 66220A - FENDER ASSY, REAR NO.1 LH 66241B - BAFFLE, RUBBER 66242A - PLATE, BAFFLE RUBBER 66311A - HOOK, ROPE, NO.1 66311A - HOOK, ROPE, NO.1 66312D - HOOK, ROPE, NO.2 66312E - HOOK, ROPE, NO.2 66312K - HOOK, ROPE, NO.2 66313 - SUPPORT, REAR FENDER 66313 - SUPPORT, REAR FENDER 66321E - BUMPER, GATE RUBBER 66321E - BUMPER, GATE RUBBER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
