TOYOTA PASEO EL54L-DCMSKW / POWERTRAIN-CHASSIS / REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

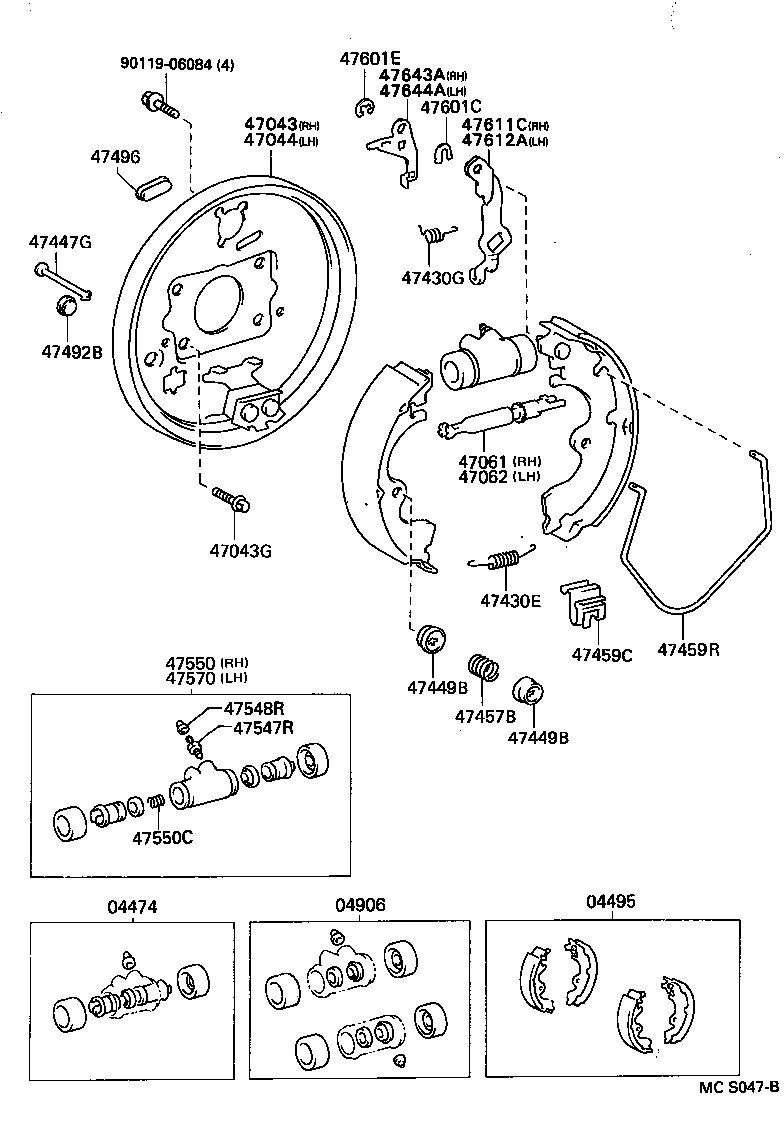

REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

(9508- )

PASEO | REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE 04474 - CYLINDER KIT, REAR WHEEL 04495 - SHOE KIT, REAR BRAKE 04906 - CUP KIT, REAR WHEEL CYLINDER 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH 47043G - BOLT (FOR BACKING PLATE TO REAR AXLE BEAM SETTING) 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH 47061 - STRUT SET, PARKING BRAKE SHOE, RH 47062 - STRUT SET, PARKING BRAKE SHOE, LH 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47457B - SPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN) 47459C - CLIP(FOR SHOE RETURN SPRING) 47459R - SPRING, SHOE RETURN(FOR REAR BRAKE) 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) 47496 - PLUG, HOLE(FOR REAR BRAKE) 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) 47601C - WASHER, C(FOR REAR BRAKE) 47601E - RING, E(FOR REAR BRAKE) 47611C - LEVER, PARKING BRAKE SHOE, RH 47612A - LEVER, PARKING BRAKE SHOE, LH 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH ** Std Part
