TOYOTA PASEO EL54L-DCMSKW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

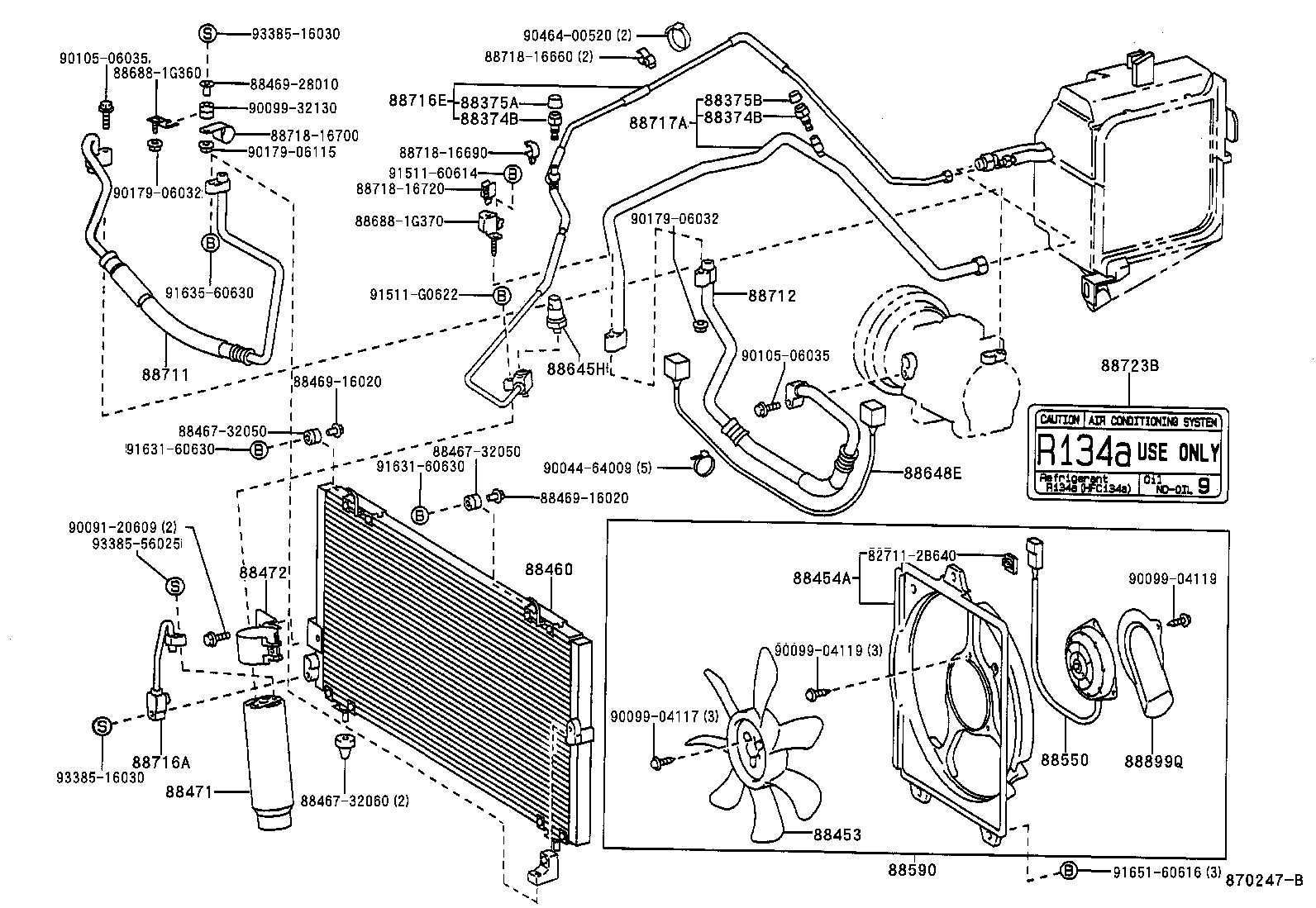

HEATING AIR CONDITIONING COOLER PIPING

MAKER OPTION ILLUST NO. 1 OF 2(9508-9608)LHD

PASEO | HEATING AIR CONDITIONING COOLER PIPING ** Std Part 88374B - VALVE, SERVICE, NO.1 88374B - VALVE, SERVICE, NO.1 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88375B - CAP, SERVICE VALVE, NO.1 88453 - FAN, COOLING (FOR CONDENSER) 88454A - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88590 - BLOWER ASSY, W/SHROUD 88645H - SWITCH, PRESSURE NO.1 88648E - WIRING, COOLER ** Std Part ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A ** Std Part ** Std Part ** Std Part ** Std Part 88723B - LABEL, COOLER SERVICE CAUTION 88899Q - PLATE, COVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
