TOYOTA PASEO EL54L-DCMSKW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

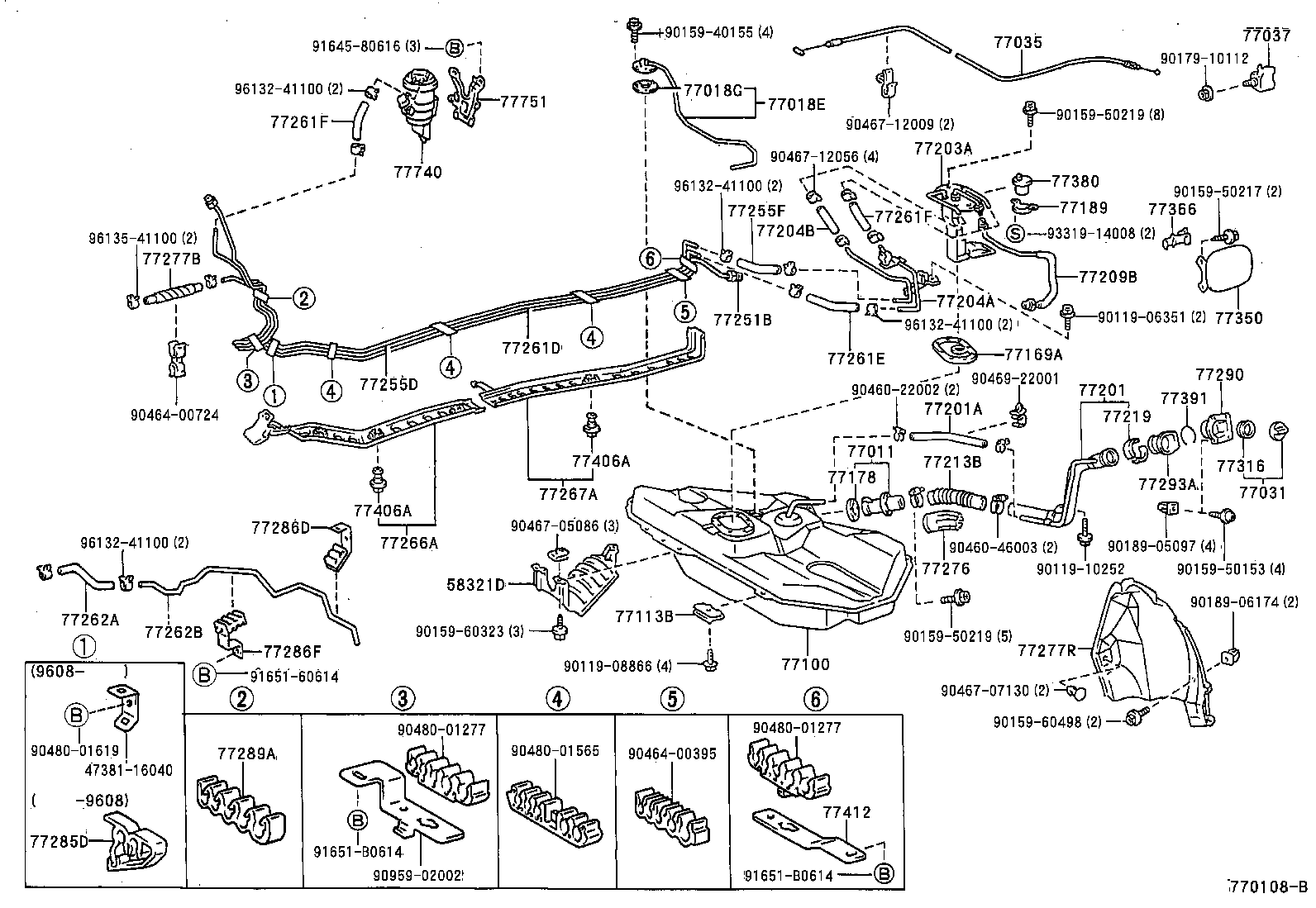

FUEL TANK TUBE

(9508- )LHD

PASEO | FUEL TANK TUBE ** Std Part 58321D - INSULATOR, REAR FLOOR HEAT, NO.1 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT 77018G - GASKET, FUEL TANK EVAP/VENT TUBE 77031 - CAP ASSY, FUEL TANK 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77113B - PLATE, FUEL TANK SIDE 77169A - GASKET, FUEL SUCTION TUBE SET 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77189 - RETAINER, FUEL CHECK VALVE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) 77203A - TUBE SUB-ASSY, FUEL SUCTION 77204A - TUBE, FUEL TANK RETURN 77204B - HOSE, FUEL(FOR FUEL RETURN) 77209B - TUBE SUB-ASSY, FUEL PUMP 77213B - HOSE, FUEL TANK TO FILLER PIPE 77219 - COVER, FUEL TANK FILLER PIPE 77251B - TUBE, FUEL MAIN 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77261D - TUBE, FUEL TANK TO CANISTER 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) 77262A - HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77276 - PROTECTOR, FUEL HOSE 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77285D - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77286F - CLAMP, FUEL TUBE, NO.2 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77380 - VALVE ASSY, FUEL CUT OFF 77391 - RING, FUEL INLET BOX 77406A - CLIP(FOR FUEL TUBE PROTECTOR) 77406A - CLIP(FOR FUEL TUBE PROTECTOR) 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77740 - CANISTER ASSY, CHARCOAL 77751 - BRACKET, CHARCOAL CANISTER BASE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
