TOYOTA CRESSIDA WAGON MX75R-XEPGFN / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

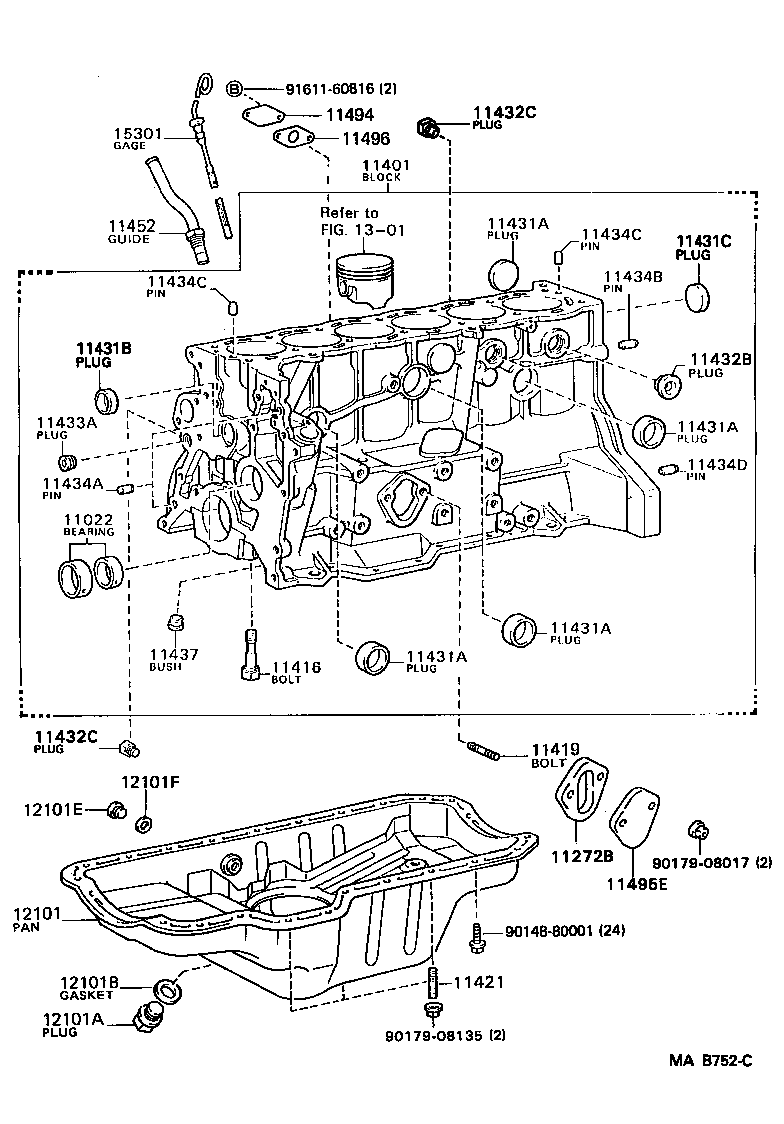

CYLINDER BLOCK

(8812-9205)7MGE

 CRESSIDA WAGON |  CYLINDER BLOCK 11022 - BEARING SET, PUMP DRIVE SHAFT 11272B - INSULATOR, CYLINDER BLOCK SIDE COVER 11401 - BLOCK SUB-ASSY, CYLINDER 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11419 - BOLT, STUD(FOR FUEL PUMP) 11421 - BOLT, STUD(FOR OIL PAN) 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 11432C - PLUG, W/HEAD TAPER SCREW, NO.3 11432C - PLUG, W/HEAD TAPER SCREW, NO.3 11433A - PLUG, STRAIGHT, NO.1 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) 11437 - BUSH, OIL PUMP SHAFT GUIDE 11452 - GUIDE, OIL LEVEL GAGE 11494 - PLATE, OIL HOLE COVER 11495E - PLUG, PLATE 11496 - GASKET, OIL HOLE COVER PLATE 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) 12101E - PLUG, OIL PAN(FOR OIL COOLER) 12101F - GASKET(FOR OIL COOLER) ** Refer Fig 15301 - GAGE SUB-ASSY, OIL LEVEL  ** Std Part  ** Std Part  ** Std Part  ** Std Part
