TOYOTA SUPRA MA70L-BJMVZC / ELECTRICAL / METER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

METER

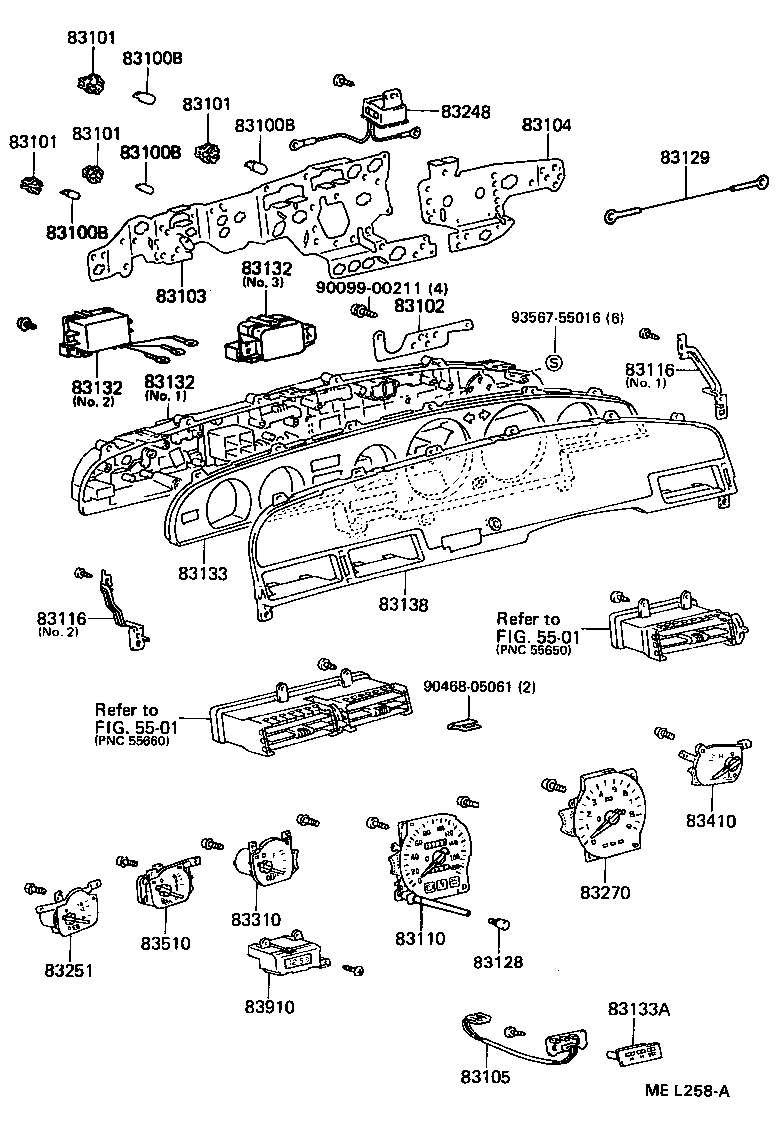

ILLUST NO. 1 OF 4(8808- )

SUPRA | METER ** Refer Fig ** Refer Fig 83100B - BULB, COMBINATION METER, NO.1 83100B - BULB, COMBINATION METER, NO.1 83100B - BULB, COMBINATION METER, NO.1 83100B - BULB, COMBINATION METER, NO.1 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 83104 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3 83105 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.4 83110 - SPEEDOMETER ASSY 83116 - BRACKET, SPEEDOMETER 83116 - BRACKET, SPEEDOMETER 83128 - KNOB, TRIP COUNTER 83129 - WIRE, METER 83132 - CASE, COMBINATION METER 83132 - CASE, COMBINATION METER 83132 - CASE, COMBINATION METER 83133 - PLATE, COMBINATION METER, NO.1 83133A - PLATE, COMBINATION METER, NO.2 83138 - GLASS, SPEEDOMETER 83248 - CHIME, SPEED WARNING 83251 - METER, VOLTAGE 83270 - TACHOMETER ASSY, ENGINE 83310 - GAGE ASSY, FUEL RECEIVER 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER 83510 - GAGE ASSY, OIL PRESSURE RECEIVER 83910 - CLOCK ASSY ** Std Part ** Std Part ** Std Part
