WIRING CLAMP

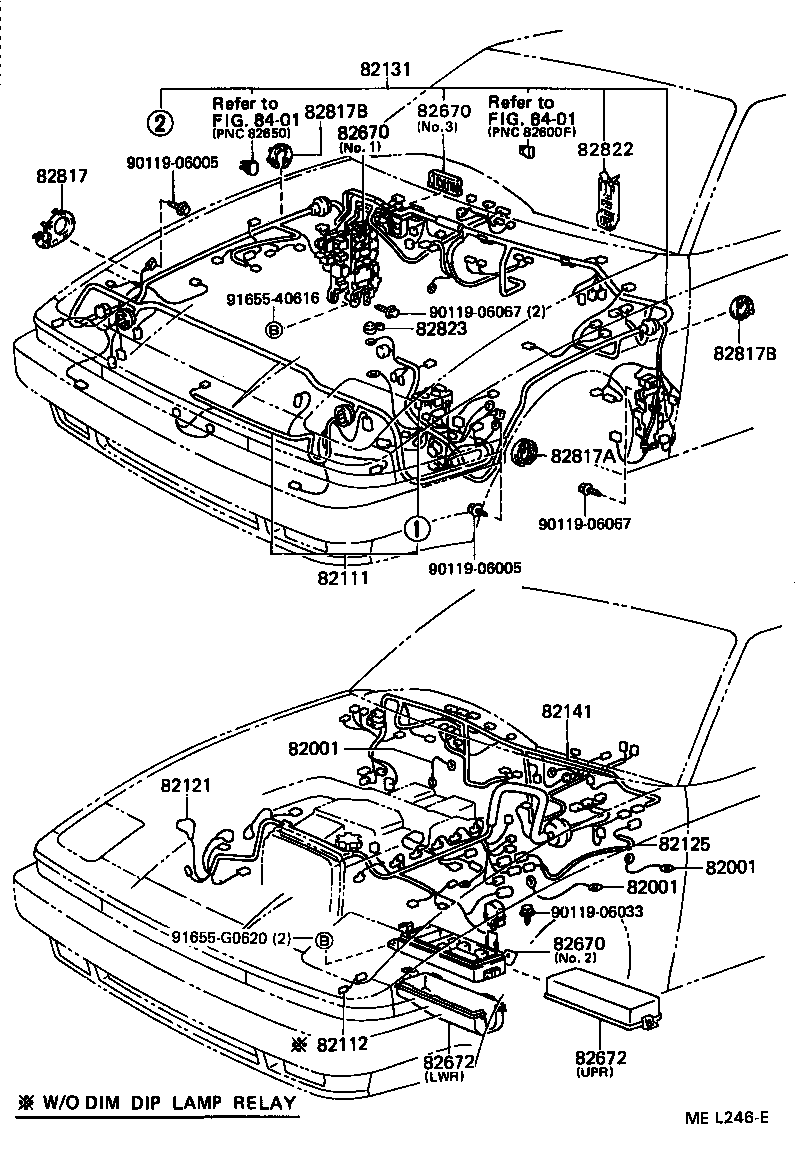

ILLUST NO. 1 OF 5(8808- )

SUPRA | WIRING CLAMP 82001 - CABLE, BOND, NO.1 82001 - CABLE, BOND, NO.1 82001 - CABLE, BOND, NO.1 82111 - WIRE, ENGINE ROOM MAIN 82112 - WIRE, ENGINE ROOM, NO.2 82121 - WIRE, ENGINE 82125 - WIRE, TRANSMISSION 82131 - WIRE, COWL 82141 - WIRE, INSTRUMENT PANEL 82670 - BLOCK ASSY, JUNCTION, NO.1 82670 - BLOCK ASSY, JUNCTION, NO.1 82670 - BLOCK ASSY, JUNCTION, NO.1 82672 - COVER, JUNKTION BLOCK 82672 - COVER, JUNKTION BLOCK 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817A - PROTECTOR, WIRING HARNESS, NO.2 82817B - PROTECTOR, WIRING HARNESS, NO.3 82817B - PROTECTOR, WIRING HARNESS, NO.3 82822 - BRACKET,CONNECTOR BLOCK 82823 - CAP, TERMINAL, NO.1 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
