TOYOTA SUPRA MA70L-BJMVZC / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

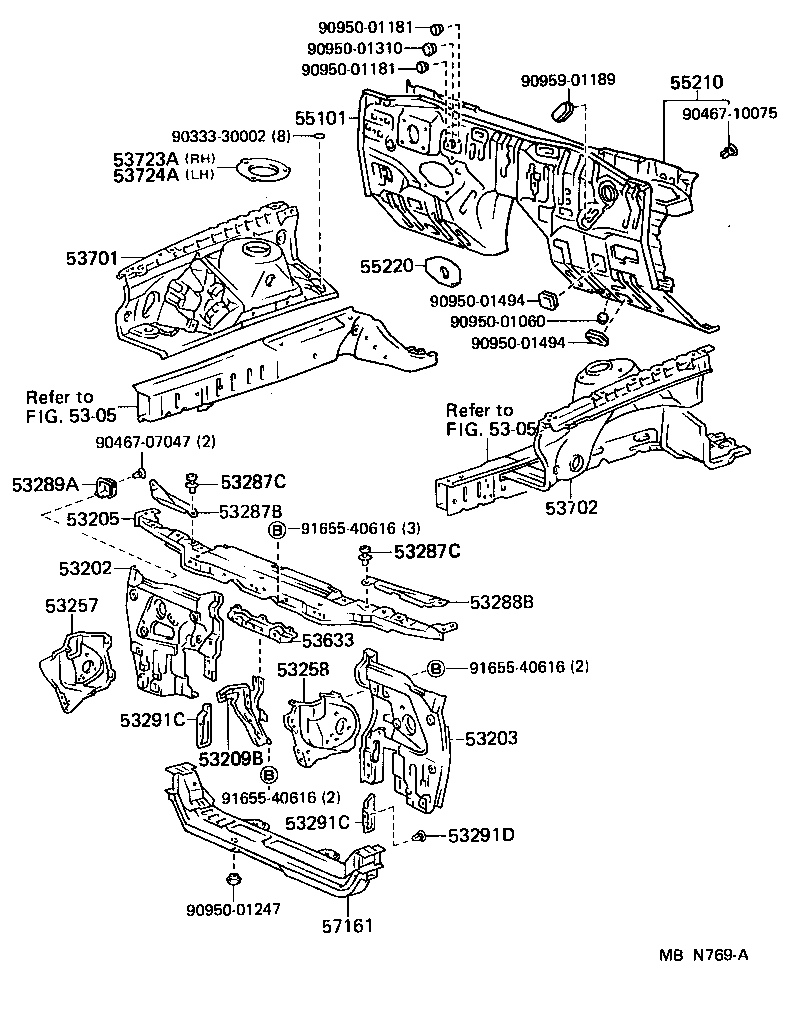

FRONT FENDER APRON DASH PANEL

(8808- )

SUPRA | FRONT FENDER APRON DASH PANEL ** Refer Fig ** Refer Fig 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT 53257 - BRACKET, FRONT END PANEL MOUNTING, RH 53258 - BRACKET, FRONT END PANEL MOUNTING, LH 53287B - EXTENSION, RADIATOR SUPPORT, RH 53287C - CLIP(FOR RADIATOR SOPPORT EXTENSION) 53287C - CLIP(FOR RADIATOR SOPPORT EXTENSION) 53288B - EXTENSION, RADIATOR SUPPORT, LH 53289A - COVER, RADIATOR SUPPORT OPENING 53291C - SEAL, RADIATOR SUPPORT TO FRAME 53291C - SEAL, RADIATOR SUPPORT TO FRAME 53291D - CLIP, RADIATOR SUPPORT TO FRAME 53633 - SHIELD, HOOD LOCK CONTROL CABLE 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH 55101 - PANEL SUB-ASSY, DASH 55210 - INSULATOR ASSY, DASH PANEL 55220 - INSULATOR ASSY, DASH PANEL, NO.2 57161 - CROSSMEMBER, FRONT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
