TOYOTA TERCEL AL20R-ZHMDSW / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MANIFOLD

(8205- )

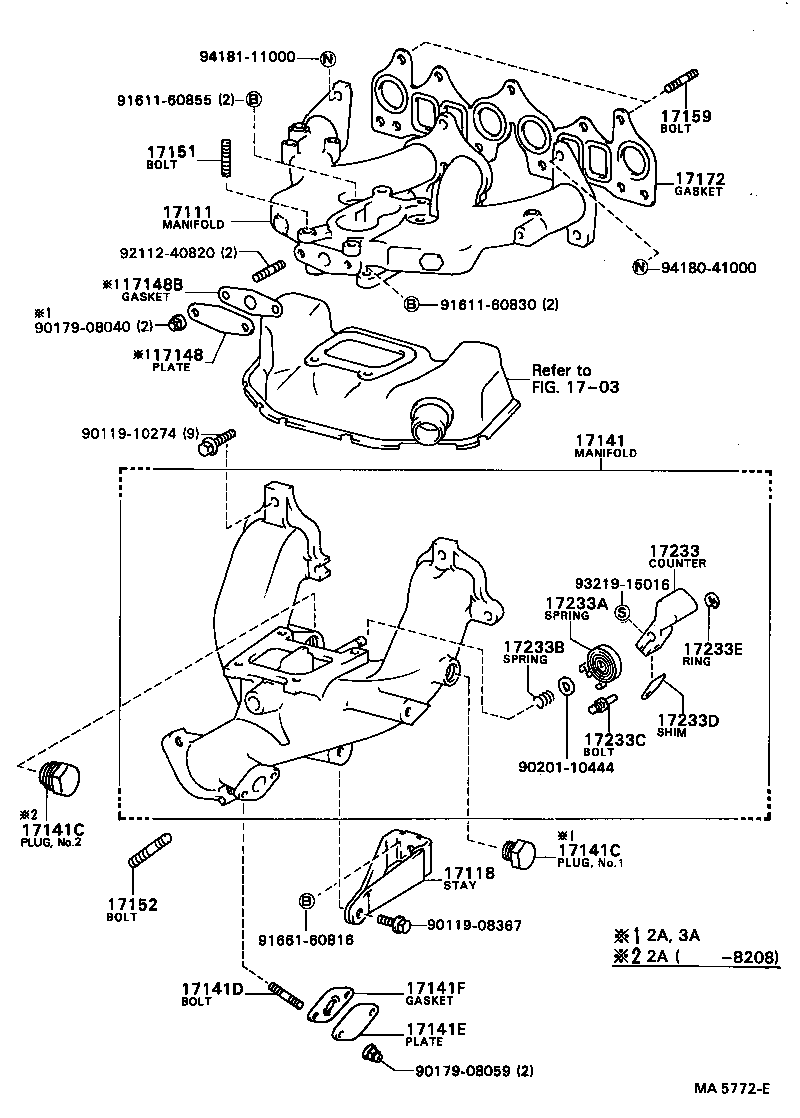

 TERCEL |  MANIFOLD ** Refer Fig 17111 - MANIFOLD, INTAKE 17118 - STAY, MANIFOLD 17141 - MANIFOLD, EXHAUST 17141C - PLUG, W/HEAD STRAIGHT SCREW 17141C - PLUG, W/HEAD STRAIGHT SCREW 17141D - BOLT, STUD(FOR OXYGEN SENSOR) 17141E - PLATE, EXHAUST MANIFOLD 17141F - GASKET(FOR EXHAUST MANIFOLD PLATE) 17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET) 17148B - GASKET, EGR INLET 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17172 - GASKET, MANIFOLD TO CYLINDER HEAD 17233 - COUNTER WEIGHT 17233A - SPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT) 17233B - SPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT) 17233C - BOLT(FOR COUNTER WEIGHT) 17233D - SHIM(FOR COUNTER WEIGHT) 17233E - RING, E(FOR COUNTER WEIGHT)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
