TOYOTA HIACE RH30RB-JRG / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

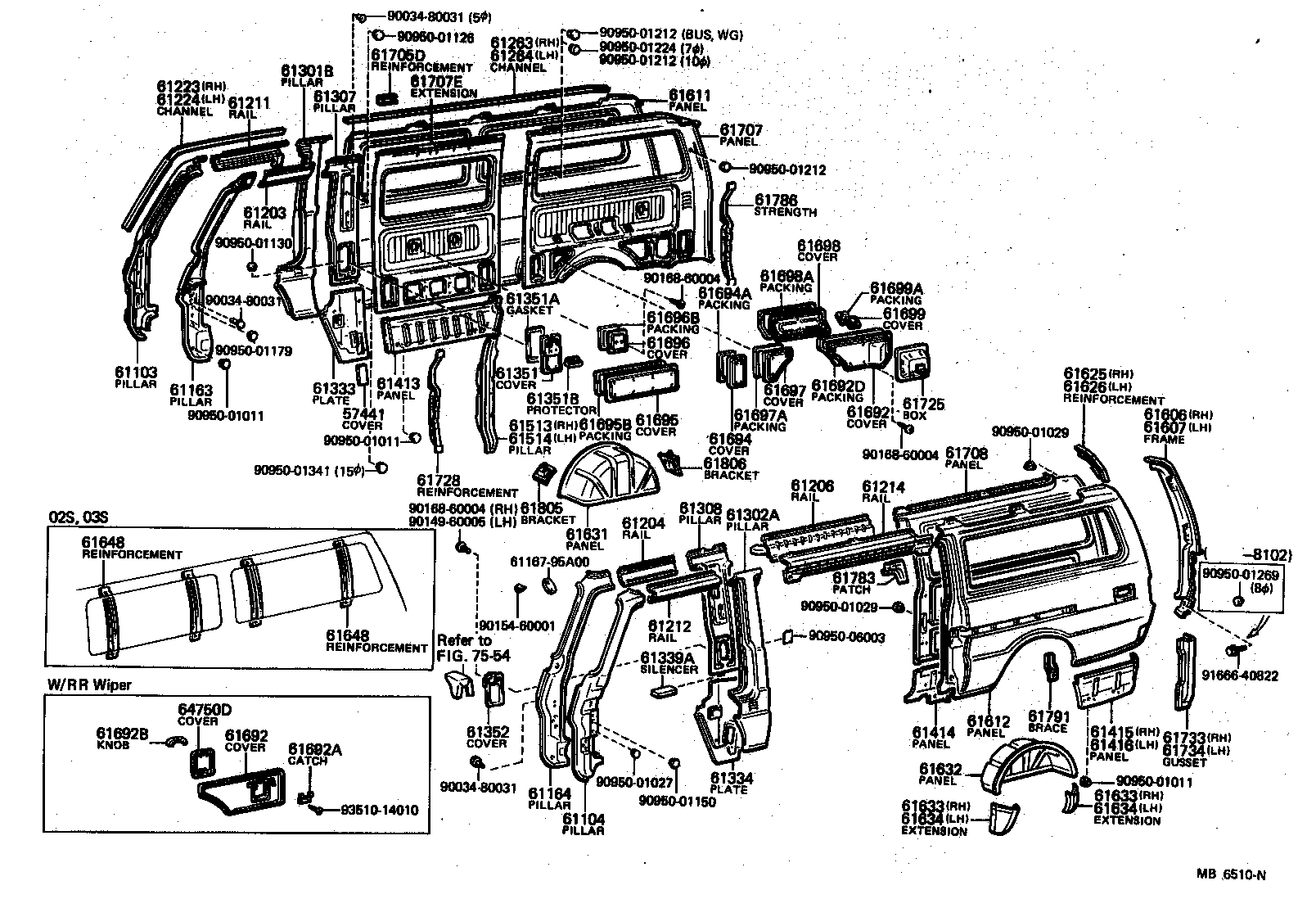

SIDE MEMBER

(7702- )LH20,30..RHD ; (7702- )RH20,22,3#.

 HIACE |  SIDE MEMBER 57441 - COVER, PLATE FLOOR SIDE RAIL 61103 - PILLAR SUB-ASSY, FRONT BODY, RH 61104 - PILLAR SUB-ASSY, FRONT BODY, LH 61163 - PILLAR, FRONT BODY, INNER RH 61164 - PILLAR, FRONT BODY, INNER LH  ** Std Part 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH 61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH 61211 - RAIL, ROOF SIDE, OUTER RH 61212 - RAIL, ROOF SIDE, OUTER LH 61214 - RAIL, ROOF SIDE, OUTER REAR LH 61223 - CHANNEL, ROOF DRIP, FRONT RH 61224 - CHANNEL, ROOF DRIP, FRONT LH 61263 - CHANNEL, ROOF DRIP, REAR RH 61264 - CHANNEL, ROOF DRIP, REAR LH 61301B - PILLAR, CENTER BODY, OUTER RH 61302A - PILLAR, CENTER BODY, OUTER LH 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH 61333 - PLATE, CENTER PILLAR, RH 61334 - PLATE, CENTER PILLAR, LH 61339A - SILENCER, PILLAR INNER 61351 - COVER, CENTER BODY, INNER RH 61351A - GASKET(FOR CENTER BODY INNER COVER) 61351B - PROTECTOR(FOR CENTER BODY INNER COVER) 61352 - COVER, CENTER BODY, INNER, LH 61413 - PANEL, ROCKER, CENTER RH 61414 - PANEL, ROCKER, CENTER LH 61415 - PANEL, ROCKER, REAR RH 61416 - PANEL, ROCKER, REAR LH 61513 - PILLAR, QUARTER LOCK INNER, RH 61514 - PILLAR, QUARTER LOCK, INNER LH 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH 61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH 61611 - PANEL, QUARTER, RH 61612 - PANEL, QUARTER, LH 61625 - REINFORCEMENT, OPENING SIDE FRAME, RH 61626 - REINFORCEMENT, OPENING SIDE FRAME, LH 61631 - PANEL, QUARTER WHEEL HOUSE, RH 61632 - PANEL, QUARTER WHEEL HOUSE, LH 61633 - EXTENSION, WHEEL HOUSE, RH 61633 - EXTENSION, WHEEL HOUSE, RH 61634 - EXTENSION, WHEEL HOUSE, LH 61634 - EXTENSION, WHEEL HOUSE, LH 61648 - REINFORCEMENT, SIDE WINDOW 61648 - REINFORCEMENT, SIDE WINDOW 61692 - COVER, QUARTER INNER, REAR 61692 - COVER, QUARTER INNER, REAR 61692A - CATCH, WASHER TANK SERVICE HOLE COVER 61692B - KNOB, WASHER TANK SERVICE HOLE COVER 61692D - PACKING, QUARTER INNER REAR COVER 61694 - COVER, QUARTER INNER, NO.1 61694A - PACKING, QUARTER SERVICE HOLE COVER, NO.1 61695 - COVER, QUARTER INNER, NO.2 61695B - PACKING, QUARTER SERVICE HOLE COVER, NO.2 61696 - COVER, QUARTER INNER, NO.3 61696B - PACKING, QUARTER INNER COVER, NO.3 61697 - COVER, QUARTER INNER, NO.4 61697A - PACKING, QUARTER INNER COVER, NO.4 61698 - COVER, QUARTER INNER, NO.5 61698A - PACKING, QUARTER INNER COVER, NO.5 61699 - COVER, QUARTER INNER, NO.6 61699A - PACKING, QUARTER INNER COVER, NO.6 61705D - REINFORCEMENT, ROOF SIDE, INNER RH 61707 - PANEL SUB-ASSY, QUARTER, INNER RH 61707E - EXTENSION, QUARTER INNER PANEL, RH 61708 - PANEL SUB-ASSY, QUARTER, INNER LH 61725 - BOX, FUEL INLET 61728 - REINFORCEMENT, QUARTER PANEL, FRONT RH 61733 - GUSSET, QUARTER, INNER RH 61734 - GUSSET, QUARTER, INNER LH 61783 - PATCH, QUARTER PANEL INNER 61786 - STRENGTH, QUARTER PANEL VERTICAL 61791 - BRACE, QUARTER INNER PANEL 61805 - BRACKET SUB-ASSY, REAR SEAT LEG, NO.1 61806 - BRACKET SUB-ASSY, REAR SEAT LEG, NO.2 64750D - COVER, DECK SIDE TRIM, WASHER ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
