TOYOTA PRIUS ZVW30L-AHXBBA / POWERTRAIN-CHASSIS / TRANSAXLE ASSY HYBRID VEHICLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

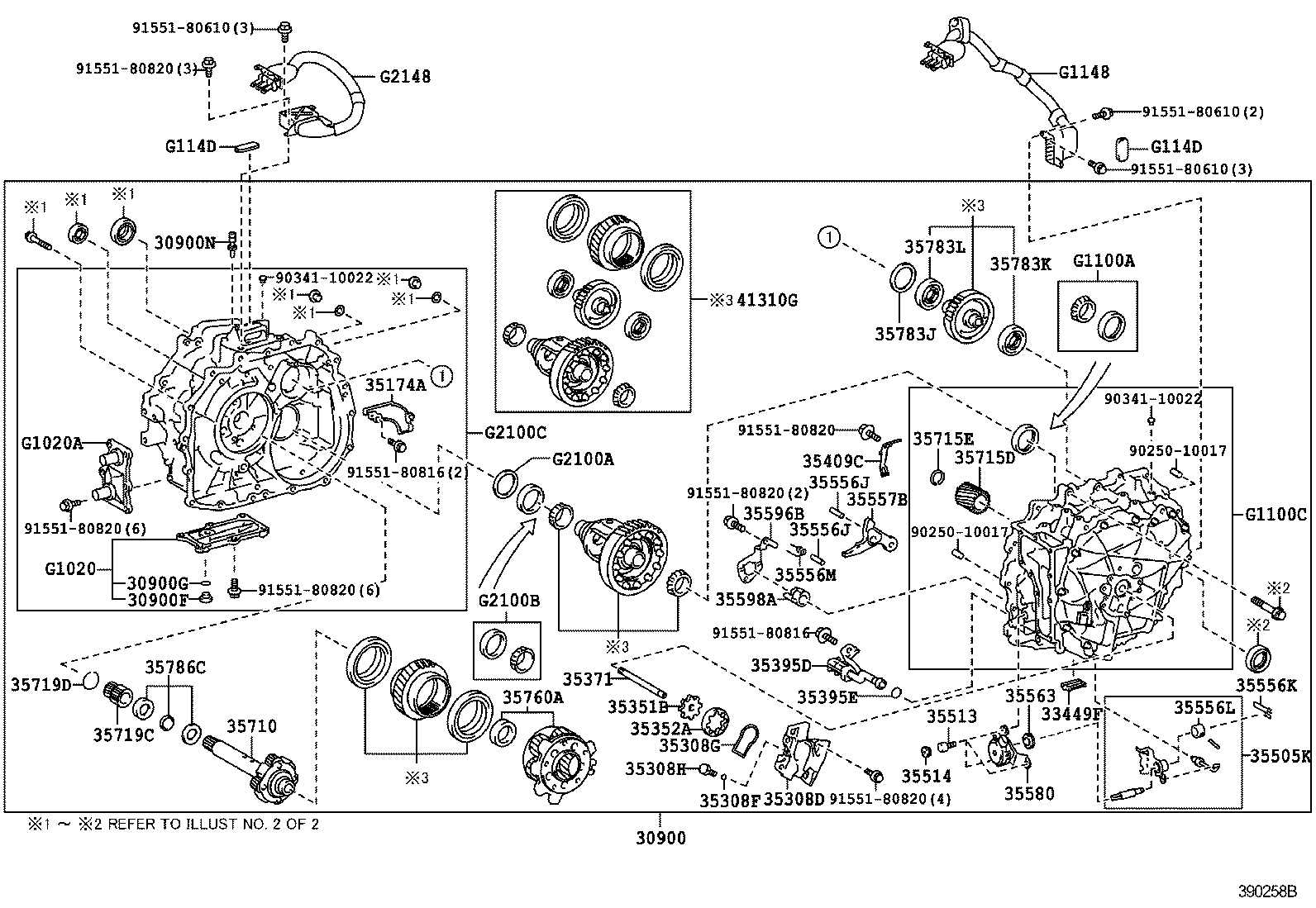

TRANSAXLE ASSY HYBRID VEHICLE

ILLUST NO. 1 OF 2(1205- )

 PRIUS |  TRANSAXLE ASSY HYBRID VEHICLE 30900 - TRANSAXLE ASSY, HYBRID VEHICLE 30900F - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE) 30900G - GASKET, NO.2(FOR TRANSAXLE HOUSING & CASE) 30900N - PLUG, BREATHER(FOR TRANSAXLE) 33449F - MAGNET, TRANSMISSION NO.1 35174A - SEPARATOR, TRANSAXLE HOUSING OIL 35308D - COVER SUB-ASSY, TRANSMISSION OIL PUMP 35308F - RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) 35308G - RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) 35308H - PLUG (FOR TRANSMISSION OIL PUMP COVER) 35351B - ROTOR, TRANSAXLE OIL PUMP DRIVE 35352A - ROTOR, TRANSMISSION OIL PUMP DRIVEN 35371 - SHAFT, OIL PUMP DRIVE 35395D - STRAINER, TRANSMISSION OIL 35395E - RING, O(FOR TRANSAXLE OIL STRAINER) 35409C - SPRING SUB-ASSY, MANUAL DETENT 35505K - LEVER SUB-ASSY, PARKING LOCK, NO.1 35513 - BOLT, SHIFT CONTROL ACTUATOR 35514 - CAP, SHIFT CONTROL ACTUATOR BOLT 35556J - SHAFT, PARKING LOCK PAWL 35556J - SHAFT, PARKING LOCK PAWL 35556K - SPRING, RETAINER 35556L - SPACER 35556M - SPRING, TORSION 35557B - PAWL, PARKING LOCK 35563 - SEAL, SHIFT CONTROL ACTUATOR 35580 - ACTUATOR ASSY, SHIFT CONTROL 35596B - PLATE, PAWL STOPPER 35598A - SLEEVE, PARKING LOCK 35710 - SHAFT ASSY, INPUT 35715D - GEAR, REAR PLANETARY SUN 35715E - RING, SHAFT SNAP(FOR REAR PLANETARY SUN GEAR) 35719C - GEAR, PLANETARY SUN 35719D - RING, SNAP(FOR PLANETARY SUN GEAR) 35760A - GEAR ASSY, REAR PLANETARY NO.1 35783J - SHIM(FOR COUNTER DRIVEN GEAR) 35783K - BEARING, RADIAL BALL, NO.1(FOR COUNTER DRIVEN GEAR) 35783L - BEARING, RADIAL BALL, NO.2(FOR COUNTER DRIVEN GEAR) 35786C - RACE, THRUST BEARING, NO.1 41310G - GEAR KIT, DIFFERENTIAL & COUNTER DRIVEN  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part G1020 - COVER ASSY, MOTOR WATER JACKET, NO.1 G1020A - COVER ASSY, MOTOR WATER JACKET, NO.2 G1100A - BEARING, TAPERED ROLLER(FOR DIFFERENTIAL CASE LH) G1100C - MOTOR ASSY, HYBRID VEHICLE G1148 - CABLE, MOTOR G114D - CAP, MOTOR CABLE TERMINAL G114D - CAP, MOTOR CABLE TERMINAL G2100A - SHIM(FOR DIFFERENTIAL CASE RH) G2100B - BEARING, TAPERED ROLLER(FOR DIFFERENTIAL CASE RH) G2100C - GENERATOR ASSY, HYBRID VEHICLE G2148 - CABLE, GENERATOR
