TOYOTA HIGHLANDER NAP GVU58L-ARXGKA / POWERTRAIN-CHASSIS / BRAKE MASTER CYLINDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE MASTER CYLINDER

(1401- )GVU58

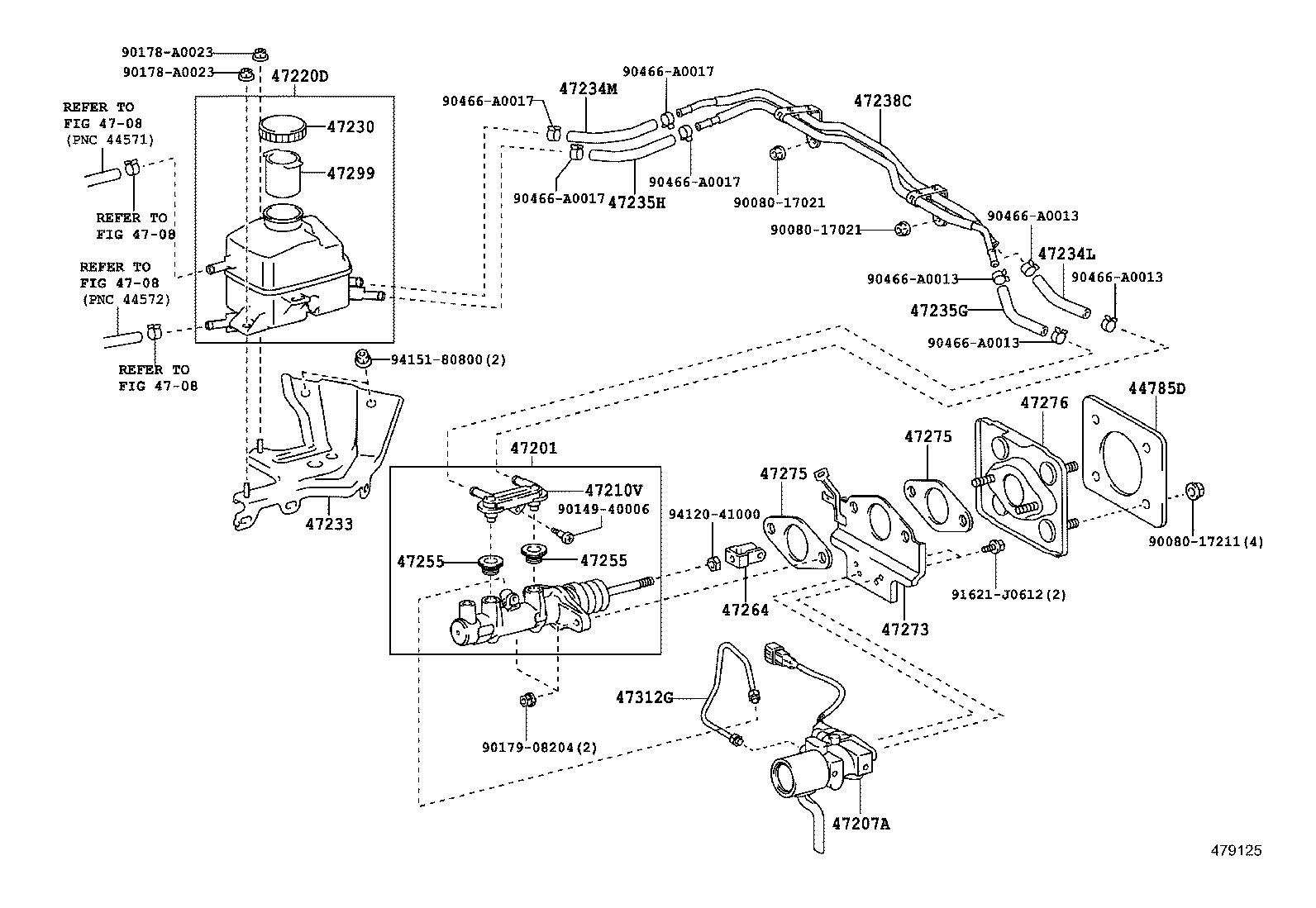

HIGHLANDER NAP | BRAKE MASTER CYLINDER 44785D - GASKET, BRAKE MASTER CYLINDER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 47201 - CYLINDER SUB-ASSY, BRAKE MASTER 47207A - CYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR 47210V - UNION(FOR BRAKE MASTER CYLINDER) 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER 47233 - BRACKET, RESERVOIR 47234L - HOSE, RESERVOIR, NO.1 47234M - HOSE, RESERVOIR, NO.1 47235G - HOSE, RESERVOIR, NO.2 47235H - HOSE, RESERVOIR, NO.2 47238C - TUBE, RESERVOIR 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47264 - CLEVIS, MASTER CYLINDER PUSH ROD 47273 - BRACKET, BRAKE STROKE SIMULATOR 47275 - GASKET, BRAKE MASTER CYLINDER 47275 - GASKET, BRAKE MASTER CYLINDER 47276 - BRACKET, BRAKE MASTER CYLINDER 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR 47312G - TUBE, BRAKE STROKE SIMULATOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
