TOYOTA AVALON GSX40L-AETQKA / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

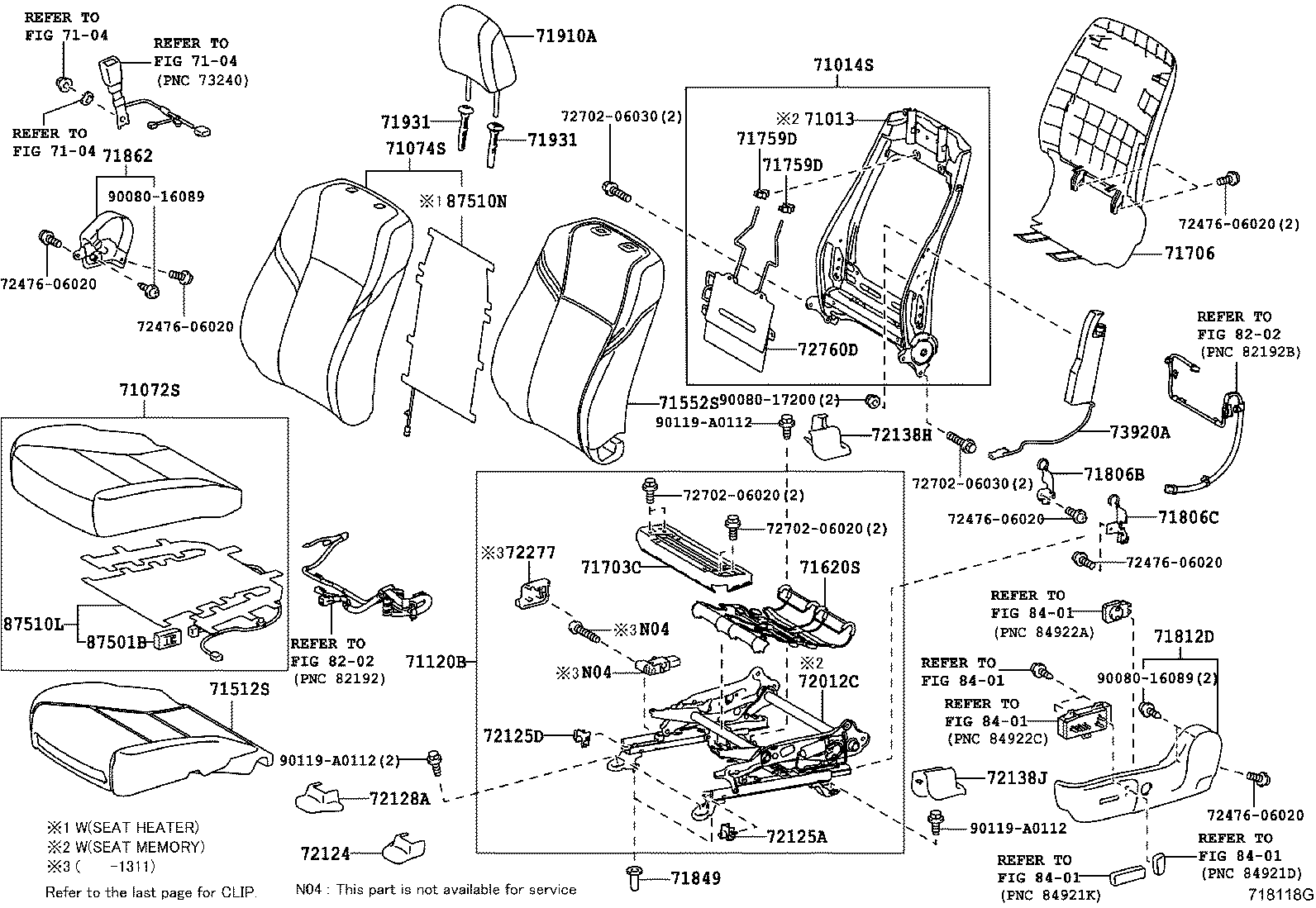

FRONT SEAT SEAT TRACK

DRIVER ILLUST NO. 1 OF 2(1210- )

 AVALON |  FRONT SEAT SEAT TRACK 71013 - FRAME SUB-ASSY, FRONT SEAT BACK 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH ** Refer Fig ** Refer Fig ** Refer Fig 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71703C - PANEL SUB-ASSY, FRONT SEAT CUSHION 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71759D - HOOK, FRONT SEAT BACK, NO.2 71759D - HOOK, FRONT SEAT BACK, NO.2 71806B - SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.1 71806C - SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.2 71812D - SHIELD, FRONT SEAT CUSHION, LH 71849 - CAP, SEAT ADJUSTER COVER, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72125A - COVER, SEAT TRACK, UPPER REAR 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER 72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR,  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH 73920A - AIR BAG ASSY, FRONT SEAT, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH 87510N - HEATER ASSY, FRONT SEAT BACK, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
