TOYOTA AVALON GSX40L-AETPKA / TOOL-ENGINE-FUEL / MOUNTING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

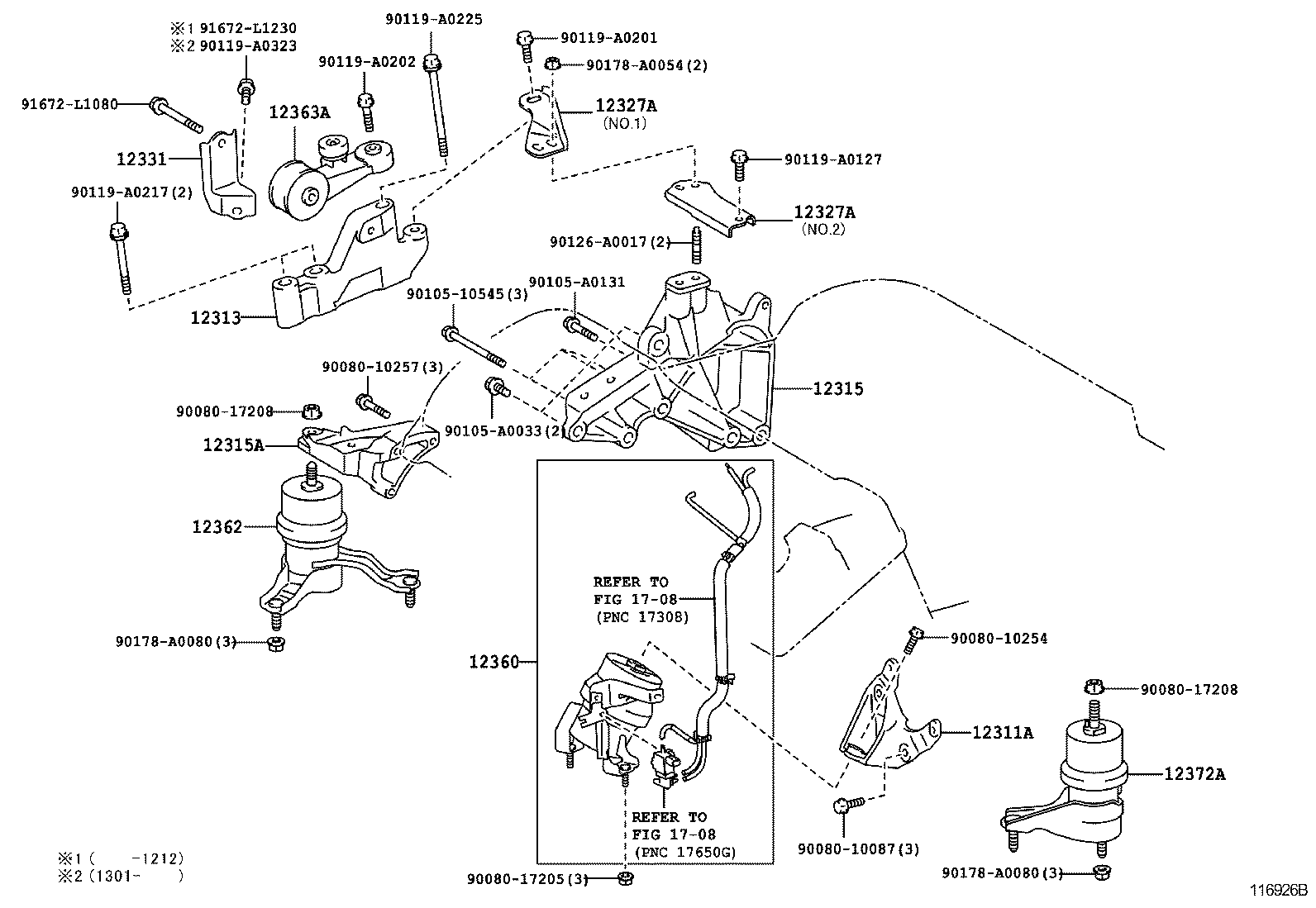

MOUNTING

(1210- )2GRFE

 AVALON |  MOUNTING 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) 12327A - STAY, ENGINE MOUNTING, NO.2 RH 12327A - STAY, ENGINE MOUNTING, NO.2 RH 12331 - STAY, ENGINE MOUNTING, NO.3 RH 12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) 12363A - ROD, ENGINE MOVING CONTROL 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
