TOYOTA PRIUS C NHP10L-AHXVBA / ELECTRICAL / INVERTER COOLING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INVERTER COOLING

(1112- )

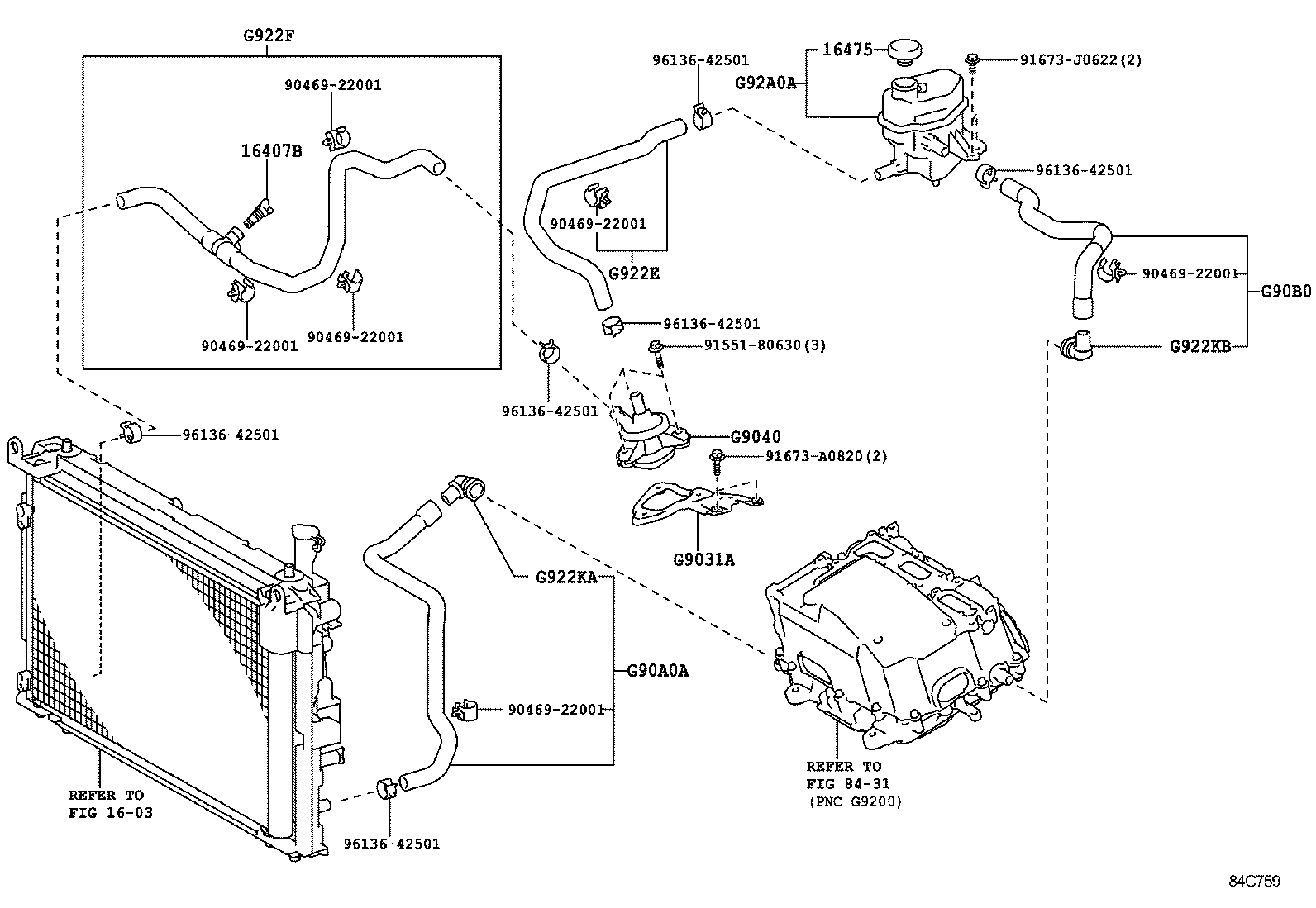

 PRIUS C |  INVERTER COOLING ** Refer Fig 16407B - COCK SUB-ASSY, RADIATOR DRAIN 16475 - CAP, RESERVE TANK ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part G9031A - BRACKET SUB-ASSY, HV WATER PUMP G9040 - INVERTER WATER PUMP ASSY(W/MOTOR) G90A0A - HOSE ASSY, INVERTER COOLING, NO.1 G90B0 - HOSE ASSY, INVERTER COOLING, NO.2 G922E - HOSE, HYBRID WATER PUMP INLET G922F - HOSE, HYBRID WATER PUMP OUTLET, NO.1 G922KA - CONNECTOR, HYBRID WATER HOSE, NO.1 G922KB - CONNECTOR, HYBRID WATER HOSE, NO.2 G92A0A - TANK ASSY, INVERTER RESERVE
