TOYOTA SCION IQ NGJ10L-BGXNGA / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

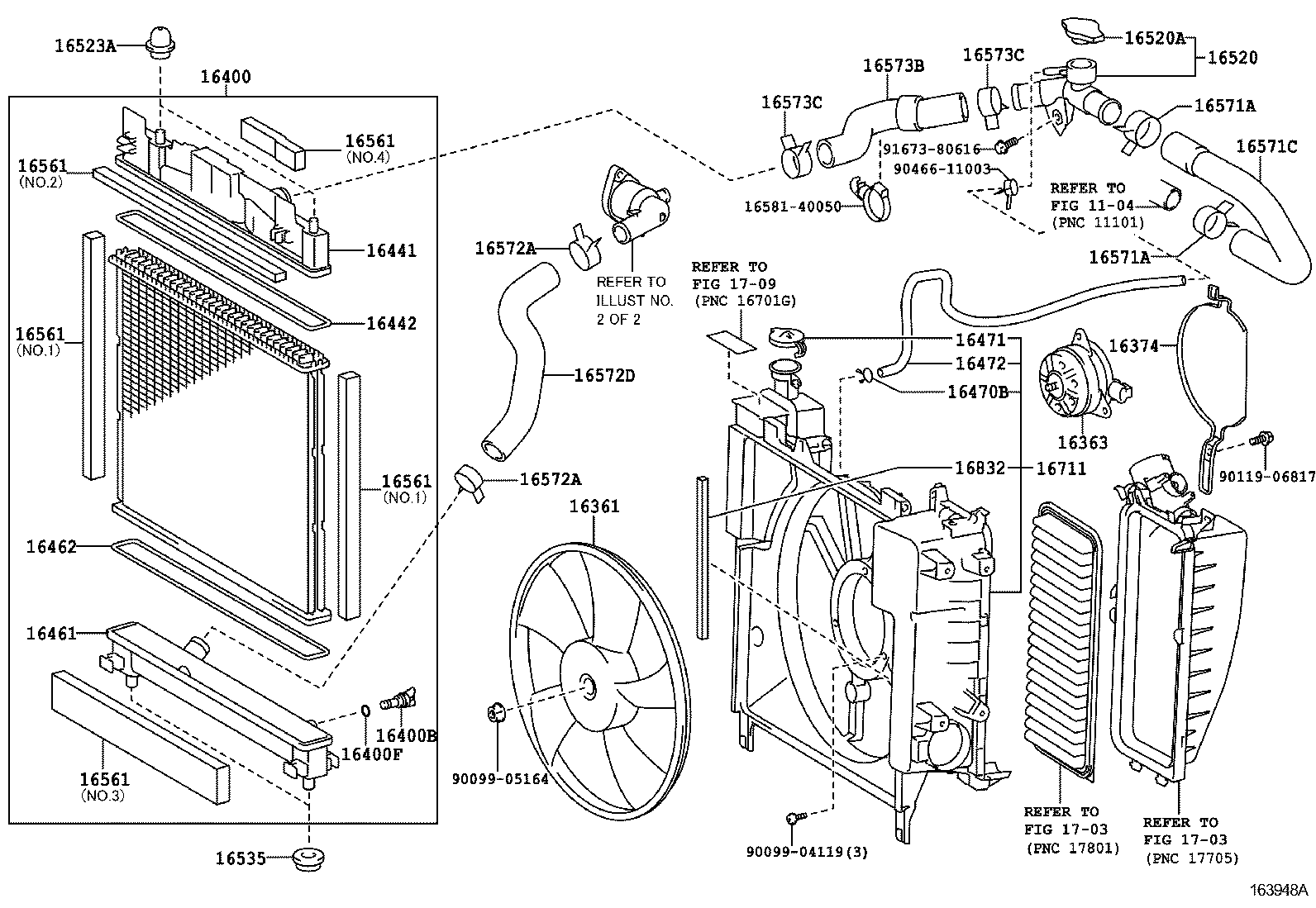

ILLUST NO. 1 OF 2(1105- )

 SCION IQ |  RADIATOR WATER OUTLET ** Refer Fig 16361 - FAN 16363 - MOTOR, COOLING FAN 16374 - INSULATOR, COOLING FAN MOTOR 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16441 - TANK, RADIATOR, UPPER 16442 - RING, O(FOR RADIATOR UPPER TANK) 16461 - TANK, RADIATOR, LOWER 16462 - RING, O(FOR RADIATOR LOWER TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER 16520 - FILLER ASSY, WATER 16520A - CAP SUB-ASSY, WATER FILLER 16523A - CUSHION, RADIATOR SUPPORT 16535 - SUPPORT, RADIATOR, LOWER 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571C - HOSE, RADIATOR, NO.1 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572D - HOSE, RADIATOR, NO.2 16573B - HOSE, RADIATOR, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3  ** Std Part 16711 - SHROUD, FAN 16832 - SEAL, FAN SHROUD ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
