TOYOTA SCION IQ NGJ10L-BGXNGA / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING CONTROL AIR DUCT

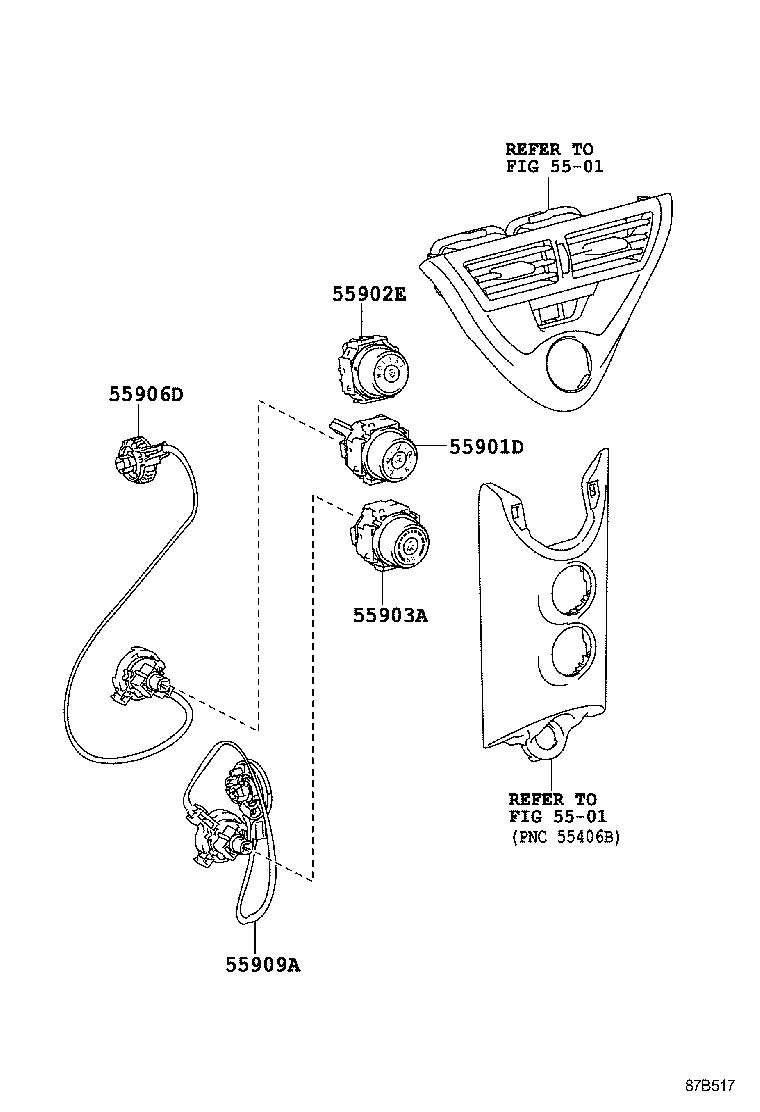

HATER CONTROL ILLUST NO. 1 OF 3(1107- )

 SCION IQ |  HEATING AIR CONDITIONING CONTROL AIR DUCT ** Refer Fig ** Refer Fig 55901D - CONTROL SUB-ASSY, HEATER, NO.1 55902E - CONTROL SUB-ASSY, HEATER, NO.2 55903A - CONTROL SUB-ASSY, HEATER, NO.3 55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
