TOYOTA SCION IQ NGJ10L-BGXNGA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

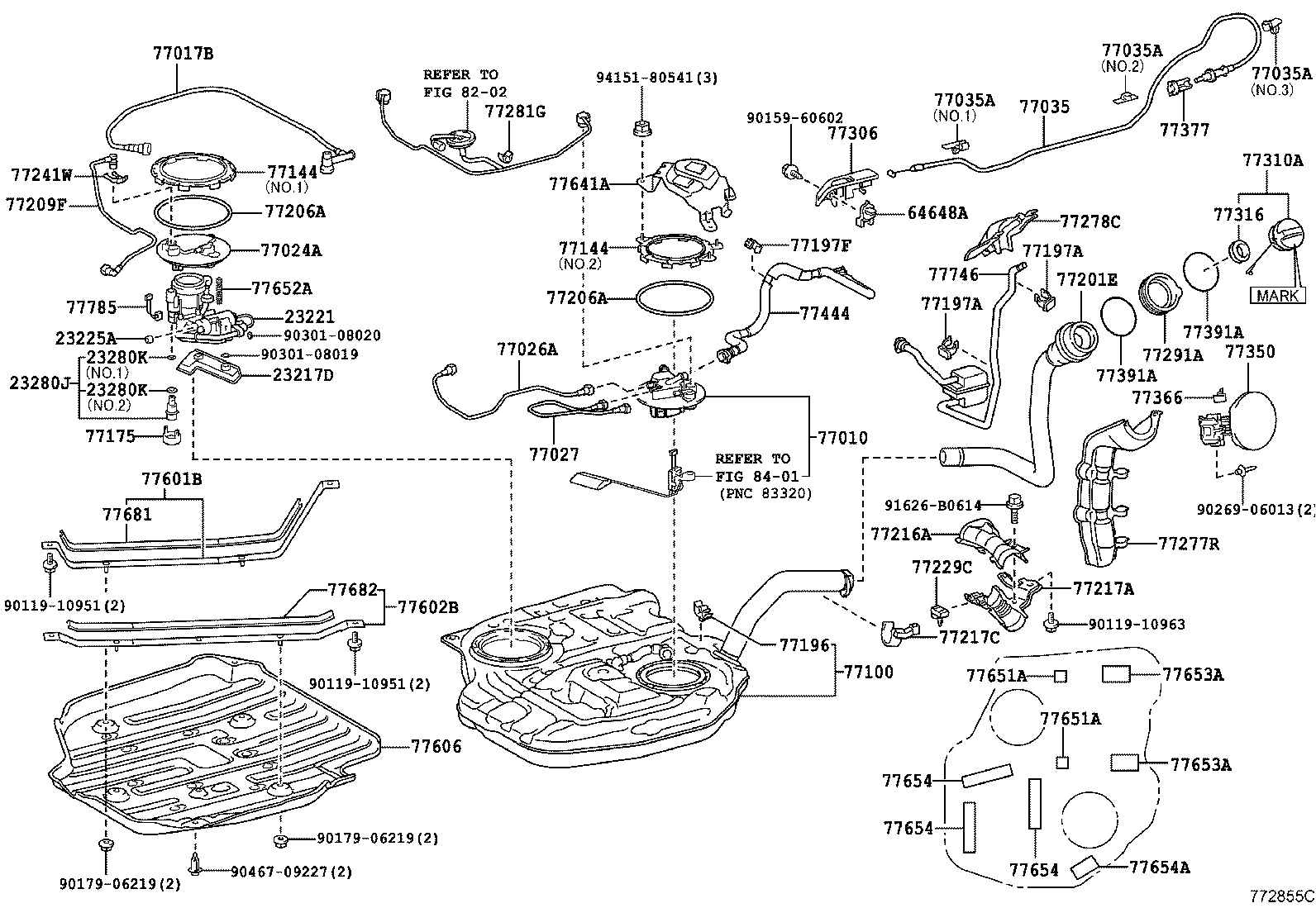

FUEL TANK ILLUST NO. 1 OF 2(1107- )

 SCION IQ |  FUEL TANK TUBE 23217D - FILTER, FUEL PUMP 23221 - PUMP, FUEL 23225A - SPACER, FUEL PUMP 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER 77010 - TUBE ASSY, FUEL TANK VENT 77017B - TUBE SUB-ASSY, FUEL TANK VENT 77024A - PLATE SUB-ASSY, FUEL SUCTION 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) 77100 - TANK ASSY, FUEL 77144 - RETAINER, FUEL PUMP GAUGE 77144 - RETAINER, FUEL PUMP GAUGE 77175 - SUPPORT, FUEL SUCTION, NO.2 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 77197F - CLAMP, EVAPORATION VENT TUBE, NO.2 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) 77209F - TUBE SUB-ASSY, FUEL TANK MAIN 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77229C - CLAMP, BREATHER TUBE 77241W - CLIP, TUBE JOINT 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 77281G - CLAMP, FUEL HOSE 77291A - SHIELD, FUEL TANK FILLER PIPE 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391A - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77444 - HOSE, FUEL TANK VENT 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77641A - PROTECTOR, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77653A - CUSHION, FUEL TANK, NO.3 77653A - CUSHION, FUEL TANK, NO.3 77654 - CUSHION, FUEL TANK, NO.2 77654 - CUSHION, FUEL TANK, NO.2 77654 - CUSHION, FUEL TANK, NO.2 77654A - CUSHION, FUEL TANK, NO.4 77681 - SEAT, FUEL TANK BAND, RH 77682 - SEAT, FUEL TANK BAND, LH 77746 - FILTER, CHARCOAL CANISTER, NO.2 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
