TOYOTA SCION IQ NGJ10L-BGXNGA / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

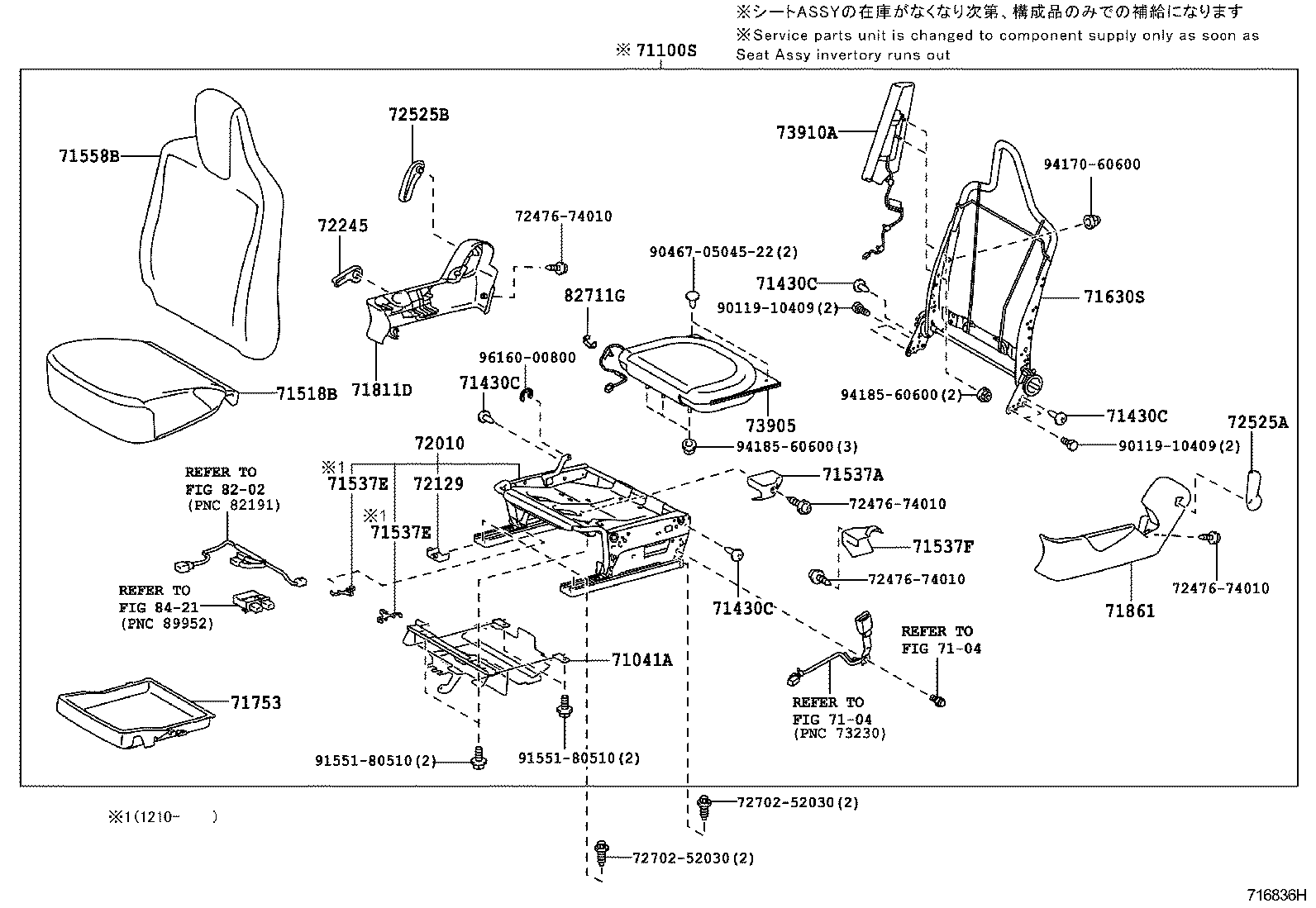

FRONT SEAT SEAT TRACK

RH SEAT (1107- )

SCION IQ | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71041A - WIRE SUB-ASSY, FRONT SEAT CUSHION, UPPER RH 71100S - SEAT ASSY, FRONT RH 71430C - CLIP 71430C - CLIP 71430C - CLIP 71430C - CLIP 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH 71537A - PROTECTOR, FRONT SEAT CUSHION 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2 71558B - PAD, FRONT SEAT BACK W/COVER, RH 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71753 - TRAY, FRONT SEAT UNDER 71811D - SHIELD, FRONT SEAT CUSHION, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 72010 - ADJUSTER ASSY, FRONT SEAT, RH 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 72245 - LEVER, SEAT TRACK LOCK OPEN, RH ** Std Part ** Std Part ** Std Part ** Std Part 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH ** Std Part ** Std Part 73905 - AIR BAG SUB-ASSY, FRONT SEAT, RH 73910A - AIR BAG ASSY, FRONT SEAT, RH ** Refer Fig 82711G - CLAMP, WIRING HARNESS ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
